A carburetor is one of the most important components in a Briggs & Stratton small engine. It mixes air and fuel to create the proper combustion mixture needed for engine operation. When your lawn mower runs into problems such as hard starting, engine surging or poor performance, the carburetor is often the first thing to look at. This Briggs and Stratton carburetor diagram guide explains the main carburetor parts, their functions and how each part works together.
What Is A Briggs & Stratton Carburetor?
The Briggs and Stratton carburetor is an integral part of your small engine. It allows your engine to receive the right amount of gas mixed with air, so your engine can run smoothly. Once the carburetor is failing or clogged, you may notice several carburetor problems.
Common Symptoms of A Bad Briggs and Stratton Carburetor
If your carburetor is failing, you may run into many engine issues.
- Engine Won’t Start: One of the most common problems of a bad carburetor is that your engine won’t start. The possible causes are a dirty carburetor, a clogged jet and old fuel.
- Engine Surges or Runs Rough: Another carburetor problem is that the engine surges or runs rough. This is mainly due to restricted fuel flow, a dirty carburetor and an air leak.
- Fuel Leaking From Carburetor: A third problem of a bad carburetor is associated with a damaged gasket, faulty float and worn needle valve.
Briggs and Stratton Carburetor Diagram Explained
A Briggs & Stratton carburetor consists of several important components that work together to control fuel delivery, air intake and engine speed. Knowing the carburetor diagram can help you identify each part and diagnose common engine problems. The main components in the Briggs and Stratton carburetor diagram include the carburetor body, float system, fuel jet, choke system, throttle system and sealing components. The following is a Carburetor Diagram for the Briggs and Stratton 10B900 Engine for your reference.
How Does A Briggs & Stratton Carburetor Work?
The working process of a Briggs and Stratton carburetor is as simple as follows:
- Air flows into the top of the carburetor from the car’s air intake, passing through a filter that cleans it of debris
- When the engine is first started, the choke can be set so it almost blocks the top of the pipe to reduce the amount of air coming in (increasing the fuel content of the mixture entering the cylinders)
- In the center of the tube, the air is forced through a narrow kink called a venturi. This makes it speed up and causes its pressure to drop
- The drop in air pressure creates suction on the fuel pipe, drawing in fuel
- The throttle is a valve that swivels to open or close the pipe. When the throttle is open, more air and fuel flow to the cylinders so the engine produces more power and the car goes faster
- The mixture of air and fuel flows down into the cylinders
- Fuel is supplied from a mini-fuel tank called the float-feed chamber
- As the fuel level falls, a float in the chamber falls and opens a valve at the top
- When the valve opens, more fuel flows in to replenish the chamber from the main gas tank. This makes the float rise and close the valve again.

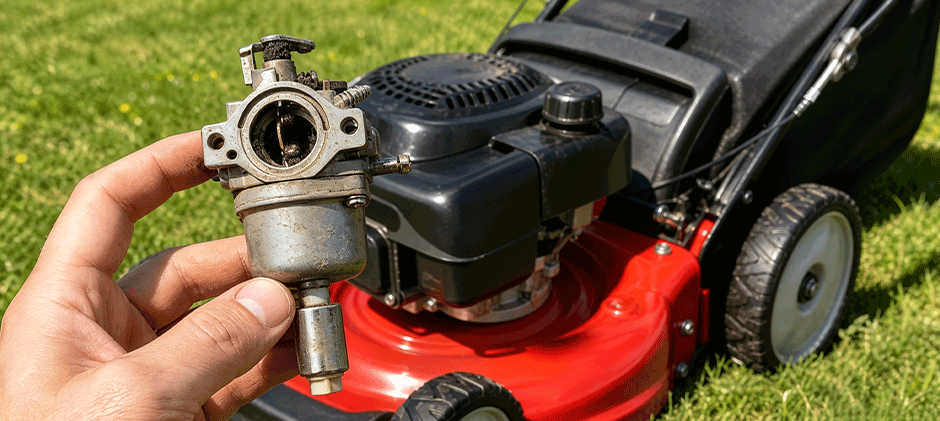

How to Clean a Briggs and Stratton Carburetor?
Cleaning a lawn mower carburetor is easy if you follow these simple steps. In this part, we’ll talk about how to clean the carburetor without removing it and how to do a thorough clean if it’s severely clogged. You can also click to see full guides on How to Clean a Lawn Mower Carburetor here.
Method 1: Clean Without Removing the Carburetor
- Turn off the engine and disconnect the spark plug wire
- Remove the air filter and check if it is dirty. Replace it if needed
- Remove the float bowl at the bottom of the carburetor
- Spray carburetor cleaner into the float bowl, main jet, and carburetor body
- Wipe away dirt, varnish, and fuel deposits
- Reinstall the float bowl and air filter
- Reconnect the spark plug wire and start the engine
Method 2: Deep Clean After Removal
- Disconnect the spark plug wire and remove the carburetor
- Take the carburetor apart, including the float bowl and float
- Spray carburetor cleaner through all jets and fuel passages
- Soak metal parts if they have heavy deposits
- Reassemble the carburetor with new gaskets if available
- Reinstall the carburetor and test the mower
Tips for You
- Never use hard metal tools to clean the jets
- Replace old fuel if it has been sitting for a long time
- If cleaning doesn’t solve the problem, you may need to rebuild or replace the carburetor
See Related:
Carburetor Repair vs Replacement
You don’t necessarily need to replace the carburetor when you suffer from the early warning signs.
Choose to Repair the Carburetor If:
- The carburetor is relatively new
- Problems appeared after storage or old fuel use
- There’s no visible cracking or corrosion
- Gaskets, diaphragms, or primer bulbs are worn but replaceable
- Jets or passages are clogged with varnish or debris
Common carburetor repairs include:
- Replacing gaskets and O-rings
- Installing a carburetor repair kit
- Replacing primer bulbs or fuel lines
Pro Tip: Ethanol fuel is a leading cause of carburetor buildup. Using ethanol-free fuel can help prevent future issues. See Ethanol vs Non-ethanol Gas here.
Choose to Replace the Carburetor If:
- The carburetor body is cracked or warped
- There’s severe corrosion or pitting
- Threads are stripped or fittings won’t seal
- The carburetor is very old and parts are hard to find
- Repair costs approach or exceed replacement cost
In many cases, replacing the carburetor is faster, more reliable, and surprisingly affordable — especially for small engines. Shop for high-quality lawn mower carburetors here.
Conclusion
Understanding the Briggs and Stratton carburetor diagram is helpful for carburetor repair on small engine equipment. Knowing when to repair vs replace your lawn mower carburetor can save you money, frustration, and downtime during peak outdoor season. If the issue is minor and the carburetor is in good shape, a repair is often all you need. But if the damage is structural or ongoing, replacement is usually the smarter long-term solution. At FridayParts, you can explore a vast selection of quality lawn mower carburetors and carburetor parts, making it easy to repair or replace your carburetor yourself.
