Understanding the tractor’s capabilities helps farmers to determine whether it can meet their specific farming needs and performance expectations. In this guide, we’ll present an in-depth look at the John Deere 4044M specs & features.

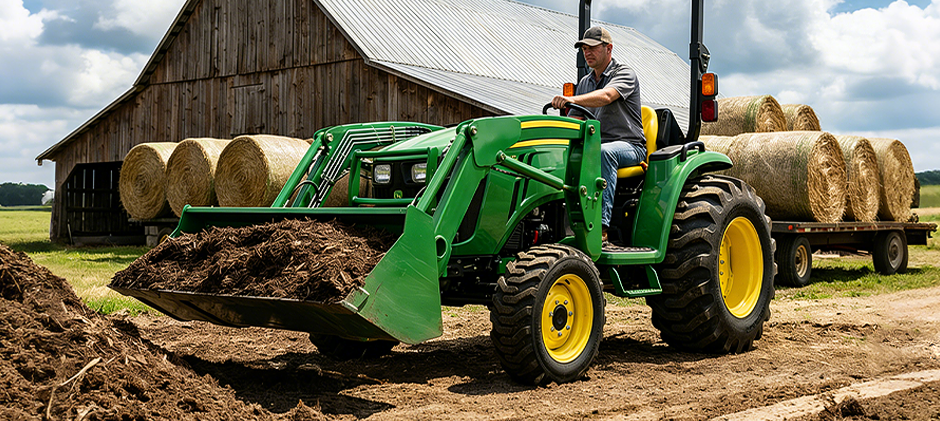

What Is the John Deere 4044M Tractor
The John Deere 4044M tractor represents the entry point into the professional-grade 4 Series compact utility tractor lineup. It features a powerful 42.5 HP Yanmar diesel engine and offers genuine utility tractor capabilities without the size and cost of larger agricultural equipment models. This versatile machine targets small farms, landscaping operations, and property owners with serious demands. Its great lift capacity and impressive engine power make it a popular choice for many farmers.
Where to Find the Serial Number of My 4044M Tractor
Locating the serial number of your John Deere Tractors is essential to finding the correct parts you need. The serial number plate of the John Deere 4044M can be found on the right side of the 4044M tractor frame and above the front axle. Wanna see more about John Deere Engine Serial Numbers & Parts Lookup?
Detailed John Deere 4044M Specs & Features
Dimensions
| Approximate Weight | Front Axle Clearance | Turning Radius with Brakes |
|---|---|---|
|
Open operator station – 1710 kg 3770 lb Cab – 2120 kg 4675 lb |
16 in (40 cm) | 3 m (9 ft) |
| Turning Radius without Brakes | Wheelbase | |
| 10 ft (3 m) | 73 ft (22 m) |
3-Point Hitch
| Lift Capacity (24-in. behind link arms) |
|---|
| 1,135 kg (2,502 lbs) |
Engine
| Engine Model | Engine Type | Cooling System |
|---|---|---|
| Yanmar 4TNV88 | Diesel | Liquid |
| No. of Cylinder | Displacement | Bore/Stroke |
| 4 | 133.6 ci 2.2 L |
3.46×3.54 inches 88 x 90 mm |
| Emissions | Emission Control | Fuel Tank Capacity |
| Tier IV | Diesel particulate filter (DPF) | 13 gal 49.2 L |
| Rated Power (gross) | Rated RPM | Torque |
| 42.5 hp 31.7 kW |
2600 | 104 lb-ft 141.0 Nm |
| Torque RPM | Starter | Starter Volts |
| 1690 | Electric | 12V |
Fuel System
| Fuel System Type |
|---|
| High-pressure common rail direct injection |
Transmission Options
| 12-speed Power Shuttle | Hydrostatic |
|---|---|
| Gears: 12 forward and reverse | Gears: infinite forward and reverse |
| Clutch: wet disc |
Final Drive
| Differential Lock | Final Drive Type |
|---|---|
| Yes | Planetary |
Operator Station
| Rollover Protective Structure | Platform | Gear Shift Location – Console/Floor |
|---|---|---|
| Yes (Foldable) | Flat | PowrReverser – Left-hand side |
Electrical System
|
Charging System | Charging Amps | |
|---|---|---|---|
| negative | alternator | 75 | |
| Battery CCA | Battery Volts | Starter Size | |
| 770 | 12 | 3 hp (2 kw) |
Hydraulic System
| Type | Pressure | Pump Flow |
|---|---|---|
| Open center | 2500 psi 172.4 bar |
10.2 gpm 38.6 lpm |
| Total Flow | Steering Flow | |
| 15.9 gpm 60.2 lpm |
5.7 gpm 21.6 lpm |
Power Take-OFF
| Rear PTO | Rear PTO Type | Engine RPM |
|---|---|---|
| independent | 540 (1.375) | 540@2400 |
Tires
| Ag Front | Ag Rear | Lawn/Turf Front | Lawn/Turf Rear |
|---|---|---|---|
| 8.00-16 | 13.6-28 | 27×10.50-15 | 44×18-20 |
*Sourced from TractorData. If you have any corrections or additions, please feel free to contact us.
Common 4044M Problems & Troubleshooting
While the John Deere 4044M is a reliable tractor for farm use, it can get stuck in the following issues.
- Hydrostatic Transmission/Power Loss: Most John Deere 4044M users report the tractor stalling or refusing to move in forward or reverse. This is often caused by damaged hydraulic hoses, low hydraulic fluid, or internal transmission wear.
- Hydraulic Leaks: Leaks commonly occur around the hydraulic filter or as a result of worn steering hoses when using tire chains.
- Fuel Contamination: The stock fuel caps are not fully watertight, allowing water to enter the fuel tank, especially when stored outside.
- Engine/ECU Issues: Instances of the tractor failing to start or having power issues are often linked to faulty crankshaft position sensors or wiring harness problems.
- DPF/HETI Light Problems: The High Exhaust Temperature Indicator (HETI) can come on frequently, causing decreased power, which can be due to excessive idling, the need for a forced regeneration, or a blocked catalyst.
- 3-Point Hitch Failure: Malfunctioning of the 3-point hitch is usually attributed to faulty control valves or hydraulic system pressure problems.
John Deere 4044M Tractor Parts

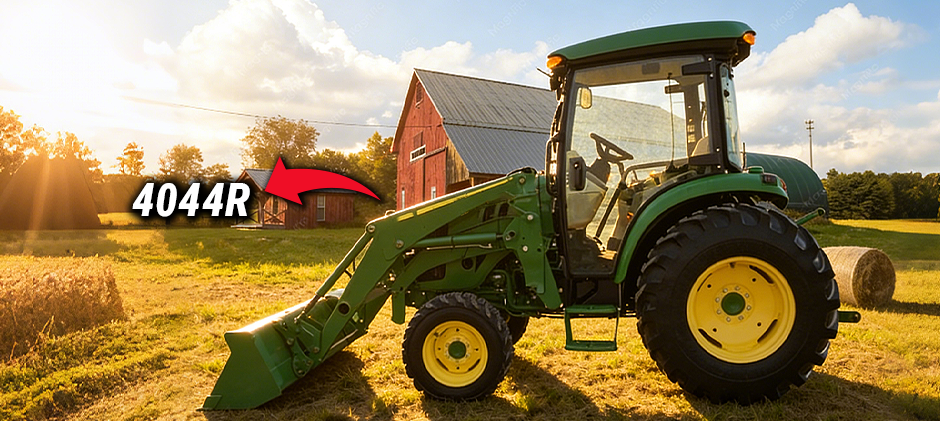

John Deere 4044M vs 4044R
Many farmers may feel confused about 4044M and 40ddR and often have difficulty choosing between the two. Both tractors are available with the 3-point hitch system from John Deere and offer high-quality construction and performance that can meet your expectations. With similar dimensions and the same powertrain, the 4044M and 4044R can help you handle the same tasks and duties. In fact, the key differences lie in the fact that John Deere 4044R features the optional ComfortGardTM cab, Hitch Assist, Aux Hitch Control and HST controls as well as a lowered side step and adjustable tilt steering wheel in the operation station, providing superior comfort and protection from the elements.
Conclusion
Before you place an order for your John Deere 4044M, it’s important to know the specs and the part number for compatibility and reliability. FridayParts stocks a vast range of high-quality John Deere replacement parts for your tractor to keep it back to its peak performance. If you have any trouble matching a part to your model, don’t hesitate to reach out.
