In Can-Am’s side-by-side models, there are two of the most popular models—HD9 and HD10. At first, they may seem similar. similar strong torque, similar drivetrain mode, and similar fuel efficiency. However, Can-Am introduced both engines for a reason. Designed for different needs, they have various levels of power performance. Can-Am HD9 vs HD10: Which is better? Next, let’s talk about the differences between them. We hope you find which one suits you best.
Key Difference Between Can-Am HD9 and HD10
The main differences between the Can-Am HD9 and HD10 are factory tuning and power output. In other words, it’s different in horsepower and torque. While the base engines of both are the same, performance targeting is completely different. Optimized for different uses.
The Defender HD9 is equipped with a Rotax engine, which has 65 horsepower and 59 pound-feet of torque. The aim is to guarantee strong torque and smooth output at low RPM. Designed for heavy work. Towing, carrying, and more can be handled easily. The Defender HD10 uses the same engine. But performance was more aggressive, with output boosted to 82 bhp, 69 lb-ft of torque. Power boosts are instant, no doubt. Speeds faster, speeds higher. Whether it’s climbing steep slopes, walking through mud, or driving at high speeds with a full load, the Defender HD10 is easier. Pursued extreme power in the “Defender” car series.
Other Specifications: HD9 vs HD10 Differences
The difference in power will inevitably lead to structural adjustments of the machine to match higher performance. On HD9 and HD10, you usually find some parts and sizes that are different. The purpose is to make the performance better.
- Suspension: A lot of HD10 models, especially in XT and above configurations, have front and rear curved A-arm suspensions. This design has better ground clearance and greater passability than the standard A-arm commonly found on HD9. The suspension stroke of the HD10 is usually slightly increased, which can better absorb impact when driving at high speeds, making driving more stable and comfortable.
- Ground Clearance: The HD10 models generally have a higher ground clearance. It is because of their arched suspension design and larger factory tires. This advantage is obvious in roads such as crossing rocks, deep ruts, or running over fallen logs.
- Weight and Dimensions: Defender models with the HD10 will weigh slightly more overall and may have a wider body. This is mainly because it uses sturdier parts, larger tires, and additional gear like winches, full roofs, which come standard on higher-end models.
- Price: There’s no doubt that the HD10 models have higher performance and extra configuration, so they’re also more expensive. Do you need more motivation and ability? Is it worth spending more money on it? How to choose in the end depends on your needs.
The choice is not just about the maximum horsepower, but about the whole configuration. The HD10’s powerful power works with a complete set of components that can bring it to life. From suspension to tires, at the service of performance.
What the Can-Am HD9 and HD10 Have in Common?
Perhaps the most surprising fact for many buyers is what these two engines share. Many people think they have different powertrains, but that’s not the case. Both of them used the same 976cc Rotax V-twin, liquid-cooled engine block. The real difference is only in horsepower and torque. They both have Rotax’s good durability and silence because they have the same foundation.
In addition to the engine, if you compare the same platform models (like the Defender DPS HD9 and Defender DPS HD10), they share the same chassis, PRO-TORQ gearbox, and almost the same drag and load capacity. In other words, Defender’s rugged construction and practical performance same, whether you choose HD9 or HD10.
Can-Am Defender HD9 vs HD10 Model Overview
Now for specific models. Availability of each engine depends on the platform and interior level you choose.
Can-Am Defender HD9 Models
- Defender HD9

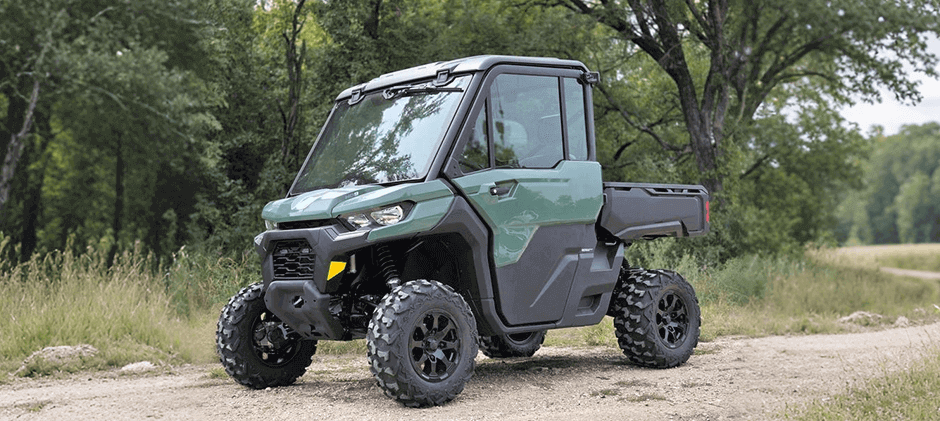

- Defender DPS HD9
- Defender DPS CAB HD9
- Defender MAX HD9
- Defender MAX DPS HD9
- Defender PRO DPS HD9
Can-Am Defender HD10 Models

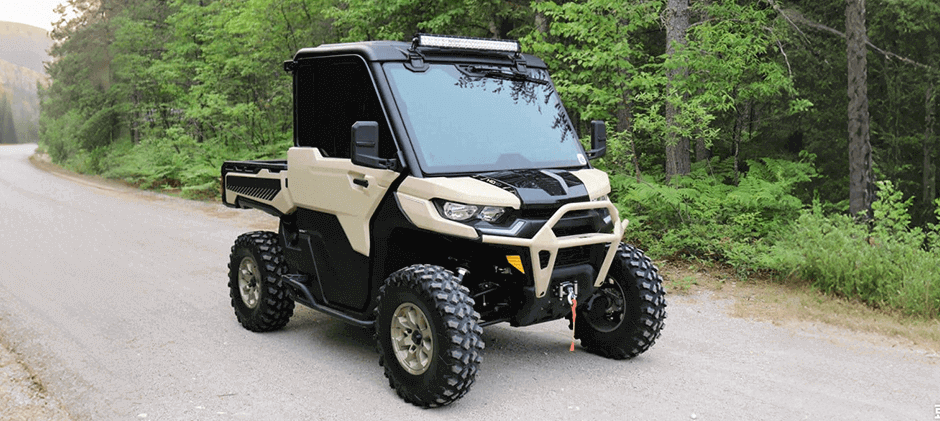

- Defender DPS HD10
- Defender XT HD10
- Defender X MR HD10
- Defender Limited HD10
- Defender MAX DPS HD10
- Defender MAX XT HD10
- Defender MAX X MR HD10
- Defender MAX Lone Star HD10
- Defender MAX Limited HD10
- Defender PRO XT HD10
- Defender PRO Limited HD10
- Defender 6×6 DPS HD10
- Defender 6×6 XT HD10
How to Choose Between Can-Am HD9 and HD10?
To make the right choice, we can break down your needs. Three simple steps: engine purpose, platform requirements, and trim level features.
Can-Am HD9 vs HD10 Engine
This is your first and most important decision.
Choose the HD9 If:
- Your work is primarily about low to medium-speed tasks such as farm chores, property maintenance, or towing trailers around the site.
- Budgeting is the primary consideration. With superior performance and affordable prices, HD9 is your smart budget choice.
- You care about smooth, predictable power output more than pure acceleration.
Choose the HD10 If:
- You often operate at high altitudes, carry heavy loads continuously, or need to travel long distances quickly.
- Your usage scenarios include recreational trail riding, where additional power boosts riding pleasure and performance.
- You want the highest performance.
Can-Am Defender Platform
Next, select the chassis that fits your crew and cargo needs.
- Standard (3-Seat): Best for individuals or small crews. Its shorter wheelbase offers greater agility in tight woods or on winding trails.
- MAX (6-Seat): The obvious choice for larger families or work crews. The longer wheelbase also provides a smoother, more stable ride at speed.
- PRO (3-Seat Long Box): A specialist for those whose primary need is cargo capacity. The 6-foot bed is unmatched for hauling tools, materials, or game.
Can-Am Defender Trim Level
Finally, choose the features you need.
- DPS: The essential starting point. Dynamic Power Steering is a must-have on a machine of this size.
- XT: Often considered the “sweet spot.” It adds a winch, roof, and beefier bumper—essentials for any serious work or trail machine, saving you money over adding them later.
- Limited: The top-tier choice for comfort, featuring a fully enclosed cab with an HVAC system. It’s a game-changer for those working in extreme heat or cold.
- X MR: A specialized tool for those who operate almost exclusively in deep mud and water.
Even with a feature-rich trim like the XT, every owner knows that wear and tear is part of the job. That’s where finding reliable Can-Am parts becomes crucial for long-term maintenance and customization, ensuring your machine stays ready for any task. With well-balanced Can-Am Defender overall dimensions, it’s designed to handle both tight job sites and open trails with ease.
Conclusion
Enjoy an exciting off-road experience, whether you choose HD9 or HD10. And once the model is selected, FridayParts offers a full range of compatible Can-Am parts to ensure your Can-Am is always in top condition, making the adventure a worry-free journey.
