Before you take a new Can-Am Defender home, there’s one thing to consider: Is it fit for you? It’s not as simple as finding a garage location. What’s more, will it fit into your trailer? Can it run smoothly on the narrow forest path? Flexible enough on busy work sites? Whether you have already bought A Can-Am Defender and want to compare the size with other models, or have specific needs and need to confirm whether the size is suitable to complete the work, here is the Can-Am Defender width and size information you need!
Finding the Right Can Am Defender
Not only is the Can-Am Defender line rugged, but it can also adapt to a variety of tasks. These machines are not a single solution. The series contains several different platforms, each designed for a different purpose. The standard Defender is flexible and convenient, giving you all the essential features for exceptional stability and performance. The higher-end Defender MAX series can transport large numbers of people. In contrast, PRO and 6×6 models are suitable for transporting bulky cargo. Each platform is a dedicated tool. Knowing their size is the first step in choosing the right tool, whether your job is transporting feed on the farm, navigating the construction site, or hunting for fun. For more performance insights beyond size and capacity, you can also check out our Can-Am popular models top speed guide to see how these machines perform when it comes to speed and power.
Can-Am Defender Width and Dimensions
The Can-Am Defender width is generally consistent. Length and height may vary depending on the platform you choose. For convenience, we’ve put together a size chart for the different Defender platforms. These are classic sizes, specific interior kits, and tire sizes may cause slight differences. Now, let’s take a look at the data.

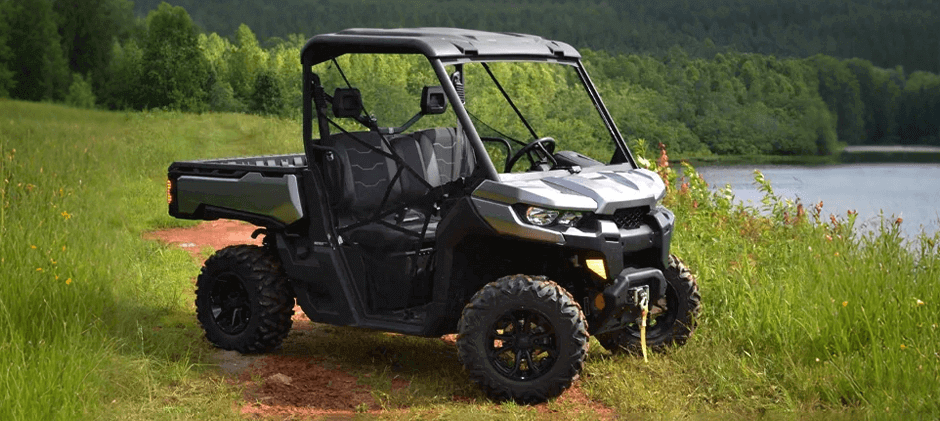

Size Specs For 3-Seat Defenders (Standard 2-Door Models)
| Model | Defender | Defender DPS | Defender XT | Defender DPS Cab | Defender Limited | Defender X MR |
|---|---|---|---|---|---|---|
| Height (in) | 76 | HD7-HD9: 76 HD10: 78 | HD9: 78 HD10: 80 | 79 | 79 | 82 |
| Length (in) | 121 | 121 | 125.7 | 121 | 126 | 129.4 |
| Width (in) | 62 | HD7-HD9: 62 HD10: 64 | HD9: 62 HD10: 64 | 65 | 65 | 64 |
| Weight (Lbs) | HD7: 1,475 HD9: 1,479 | HD7: 1,460 HD9: 1,541 HD10: 1,537 | HD9: 1,606 HD10: 1,601 | 1,820 | 1,928 | 1,697.60 |
The standard 3-seat Defender is the base model in the series. It is the most compact and flexible model in this range, ideal for traveling in tight spaces. It can sit three people while keeping the body compact.

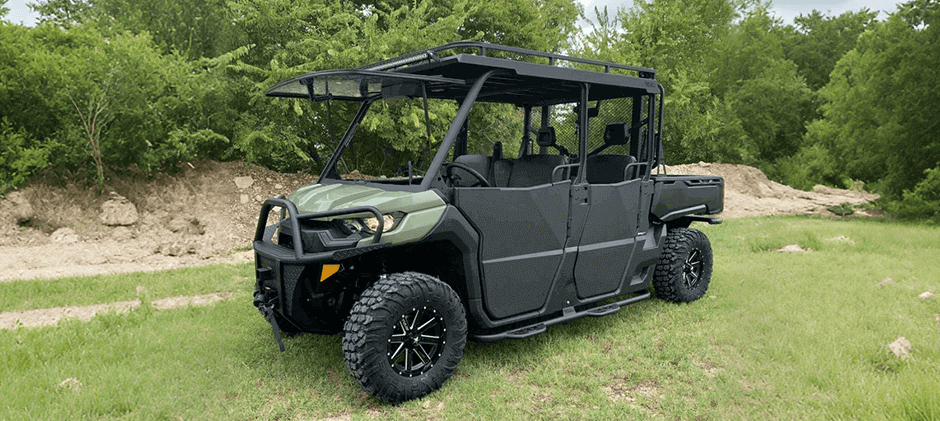

Size Specs For Defender MAX
| Model | Defender MAX | Defender MAX DPS | Defender MAX XT | Defender MAX Lone Star | Defender MAX Lone Star Cab | Defender MAX Limited | Defender MAX X MR |
|---|---|---|---|---|---|---|---|
| Height (in) | 76 | HD9: 76 HD10: 77.5 | HD9: 76 HD10: 79.5 | 79.9 | 80.6 | 79 | 82 |
| Length (in) | 153.4 | 153.4 | 158.3 | 158.9 | 159 | 158 | 161.9 |
| Width (in) | 63.5 | HD9: 63.5 HD10: 64 | HD9: 63.5 HD10: 64 | 64 | 65 | 65 | 64 |
| Weight (Lbs) | HD7: 1,710 HD9: 1,735 | 1,771 | 1,902 | 1,929 | 2,402 | 2,337 | 1,999 |
Defender MAX can carry 6 people. With an extra row of seats, it is the most passenger-carrying model in the Defender family. No need to specifically widen the body. However, the car is longer, and the turning and parking are not so flexible.

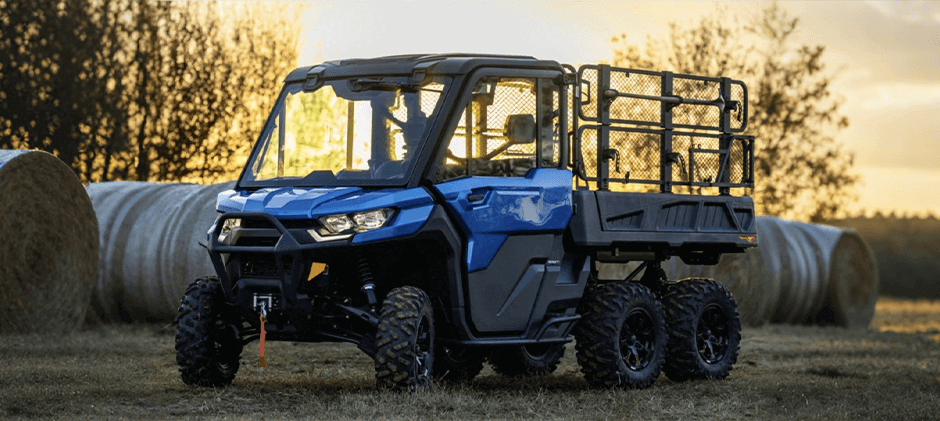

Size Specs For 6×6 Defenders
| Model | Defender 6×6 DPS | Defender 6×6 XT | Defender 6×6 Limited |
|---|---|---|---|
| Height (in) | 78 | 80 | 80 |
| Length (in) | 154.1 | 159.7 | 159.7 |
| Width (in) | 64 | 64 | 65 |
| Weight (Lbs) | 1,945 | 2,077 | 2,370 |
The 6×6 Defender is a beast for extreme traction and heavy-duty missions. Six-wheel drive, so that it can go to places that other UTVs simply cannot reach, and can also pull more goods. This model is intended for those who, on dirt, snow, or soft terrain, need the maximum load and the strongest grip. Real working machines, made for the hardest work.

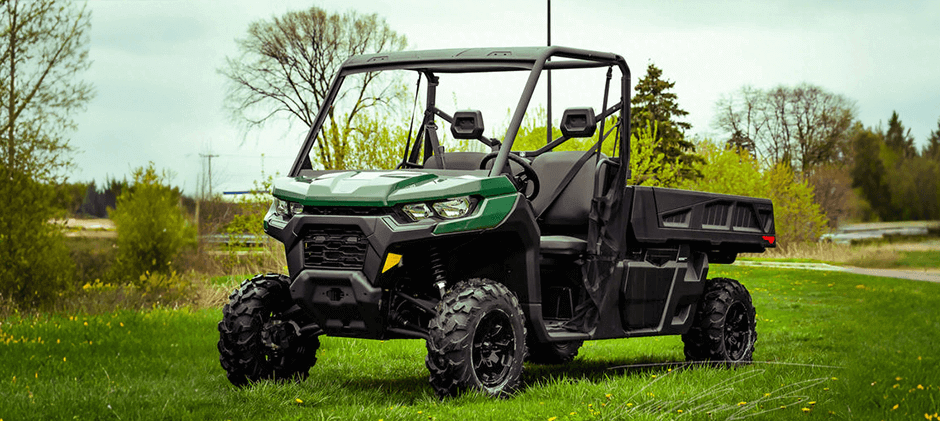

Size Specs For PRO-Style Defenders
| Model | Defender PRO DPS | Defender PRO XT | Defender PRO Lone Star | Defender PRO Limited |
|---|---|---|---|---|
| Height (in) | 78 | 80 | 80 | 79.5 |
| Length (in) | 154.1 | 159.7 | 160.6 | 159.7 |
| Width (in) | 64 | 64 | 65 | 65 |
| Weight (Lbs) | 1,833 | 1,960 | 1,995 | 2,284 |
Defender PRO also uses the same long wheelbase as MAX and 6×6, but it uses all this space on an oversized 6-foot cargo box with a smart through-type storage compartment hidden underneath. If you mainly want to install tools, materials, or hunting equipment, then Defender PRO can be said to be the most practical one on the four-wheel drive platform, and it is very convenient to work and bring goods.
Can-Am Defender Width and Capacity Explained
The basic length and width data affect where the vehicle can go, how much it can hold, and how much it can do. Know these dimensions, not just by looking at the numbers, but also how they perform in real work and driving.
Exterior Dimensions
- Length: The standard Defender fits a 12-foot trailer, but the MAX or PRO requires a 14-foot or 16-foot trailer.
- Width: Many public trail systems are limited to 50 or 64 inches in width. Most Defenders are a little over 64 inches, so be sure to check out local regulations.
- Height: When adding a roof, light bar, or lift kit, be sure to measure your garage opening!
- Wheelbase: distance between the front and rear axles. Shorter wheelbases (such as the standard Defender with a smaller turning radius). Longer wheelbases, such as MAX, PRO, and 6×6, give a smoother ride.
- Ground Clearance: This is the distance between the ground and the lowest point of the chassis, ranging from 11 to 14 inches. The ground clearance can pass over larger obstacles without getting stuck.
The right Can-Am Defender width and size must match your task.
Interior Dimensions
Defender’s interiors combine comfort and practicality.
- Seating Capacity: The standard version is equipped with a bench seat that can seat three.
- Legroom & Headroom: The MAX version adds one more row and can bring six people at a time. Its space is also quite impressive, with about 40 inches of headroom plus spacious legroom, so even a tall person won’t feel aggrieved after running all day.
- Cargo Box: The standard version is about 38 inches long and 54.5 inches wide. The PRO and 6×6 models used large cargo boxes up to 6 feet (72 inches) long.
Payload and Towing Capacity
That’s where Defender’s workhorses are truly reflected.
- Payload Capacity: It is the total weight it can withstand (both people and cargo), ranging from 1,200 pounds to a staggering 1,750 pounds on different models.
- Towing Capacity: All Defenders are rated at 2,500 lbs, while the 6×6 version can be boosted to 3,000 lbs, and towing heavy trailers is no problem at all.
Dimension-Related Features
Can-Am Defender is also designed with the flexible use of space in mind. It has considerable cargo space, about 38 ×54× 12 inches, more than enough for tools, building materials, and equipment. Some models also come with cargo box extensions and partitions, which can be freely partitioned as needed for more flexible loading. In addition to the cargo box, there is also a lot of clever storage space hidden inside the car— things can be placed under the seats, on the instrument panel, and in the cargo area at the rear.
Can-Am Defender Width: Final Thoughts
Size is a detail that many people tend to ignore. But it is with different sizes as a premise that Can-Am Defender parameters enable versatile applications. The right size to perform well on different tasks, including hauling heavy loads, crossing mud, or coping easily with routine work. Want to keep your Defender in top shape all the time? FridayParts provides a wealth of high-quality Can-Am replacement parts and accessories to help you easily complete repairs and upgrades.
