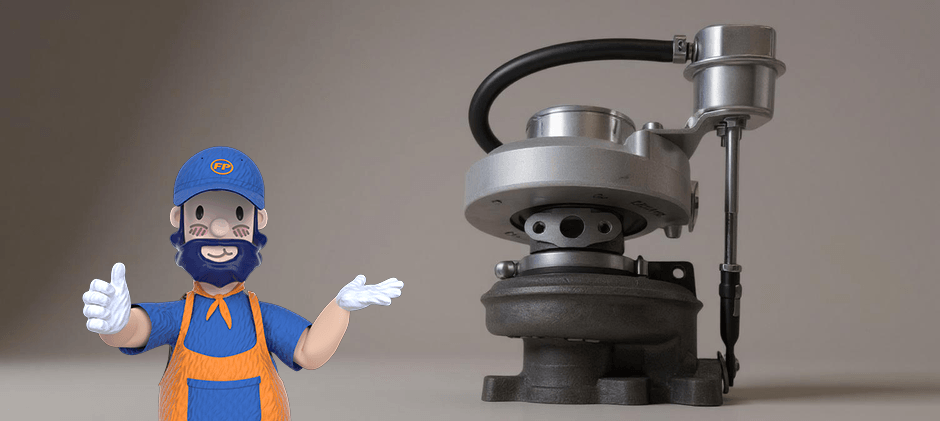

A turbocharger forces more air into the engine, helping to generate more power from the same engine size. However, high performance always brings problems. And at this moment, knowing you need a turbocharger repair or a replacement is critical.
When problems arise with your turbocharger, most owners prefer repairing it rather than replacing it because of the high replacement cost. However, sometimes repairing is more complicated. This guide aims to ensure you know why turbochargers fail, when and how to repair them, and provide preventative tips to both help you save money and keep your equipment running smoothly.
Why Do Turbos Fail?
A turbocharger failure is almost always a symptom of another problem. Before any repair, identifying the root cause is critical to prevent a costly repeat failure. The most common culprits are:
- Oil Contamination: Dirt, fuel, or coolant in the oil acts like sandpaper on the high-speed bearings, leading to rapid wear.
- Oil Starvation: A blocked oil feed line, low oil pressure, or using the wrong type of oil prevents the shaft from floating on its critical oil film, causing catastrophic bearing failure.
- Foreign Object Impact: Debris from a failed engine component or a poorly filtered air intake can strike the delicate compressor or turbine wheels, shattering them instantly.
- Overheating and Hot Shutdown: Shutting down a hot engine immediately can “cook” the oil inside the turbo’s center housing, leaving behind hard carbon deposits (coking) that block oil passages and lead to oil starvation.
Repair & Replacement: How to Choose?
The first step is a proper diagnosis. The choice between repairing and replacing hinges entirely depends on the nature of the failure.
When Do You Need to Repair the Turbocharger?
A repair is a viable option only when the core structural components of the turbo—the compressor and turbine housings—are undamaged. You can consider a repair if the issue is:
- Leaking Seals: The turbo is leaking oil, but the rotating assembly (the wheels and shaft) hasn’t been starved of oil or damaged.
- Early-Stage Bearing Wear: You’ve caught the problem early. There might be slight shaft play, but the compressor and turbine wheels have not made contact with the housings.
- Faulty Actuator: The wastegate actuator (whether pneumatic or electronic) has failed, but the turbo itself is mechanically sound.
In these cases, a professional repair can be a cost-effective and reliable solution.
When to Replace?
On the other hand, sometimes, a repair is just throwing good money after bad. A full replacement is the only correct path forward if you see signs of catastrophic failure:
- Impact Damage: The compressor or turbine wheels have hit their respective housings. This creates scoring and, more importantly, sends metal debris through your engine’s intake or exhaust. Attempting to repair this without addressing system contamination is a recipe for disaster.
- Seized or Broken Shaft: The middle shaft is either in a locked-up situation or already in a snapped condition. This is manifesting a most serious failure, most often coming from the starvation of oil.
- Cracked Housings: If there are any visible cracks on the cast-iron turbine housing or the aluminum-made compressor housing, it means the whole unit is already compromised and needs replacement without delay.
For how to replace, you can read: How to Replace & Maintain a Turbocharger?
How to Repair the Turbocharger?
When a repair is possible, it generally falls into two categories: a regular repair (cartridge replacement) or a full overhaul.
Regular Turbocharger Repair
This is the most common and reliable method of turbo repair for modern machinery. The CHRA (Center Hub Rotating Assembly), or “cartridge,” contains the entire rotating group: the shaft, compressor wheel, and turbine wheel, all pre-assembled and balanced in a new bearing housing.
- First, a technician removes the failed turbocharger from the engine.
- The compressor and turbine housings (the “snails”) are carefully unbolted from the central cartridge.
- The old, failed cartridge is discarded.
- The housings are thoroughly cleaned and inspected for any scoring or cracks. If they are in good condition, they can be reused.
- A brand new, factory-balanced CHRA is installed into the original housings.
- Finally, the reassembled turbocharger is installed back onto the machine.
This method is popular because it combines the reliability of a new, perfectly balanced core with the cost savings of reusing the existing housings.
Overhaul Turbocharger Repair
Alternatively, an overhaul is a more in-depth, traditional rebuild from the component level up. This is often reserved for older or rarer models where a pre-made cartridge isn’t available.
- The turbo is completely disassembled down to every last nut, bolt, bearing, and seal.
- Each component is chemically cleaned or sandblasted to remove carbon buildup and oil residue.
- A technician meticulously inspects every part for wear, cracks, or warping.
- All wear items—bearings, seals, O-rings, and thrust collars—are replaced with a new rebuild kit.
- Crucially, the rotating assembly must be rebalanced. This is a two-step process: the individual compressor and turbine wheels are balanced at low speed, and then the entire assembled core is balanced on a high-speed VSR (Vibration Sorting Rig) machine. This spins the turbo up to its operational RPM to eliminate any dynamic imbalances that would cause a whining noise or rapid failure.
- The turbo is carefully reassembled, and the wastegate is calibrated.
Clearly, an overhaul requires specialized equipment and a highly skilled technician to be successful.
Turbocharger Repair Pros and Cons
Pros
- Cost-Effective: If the turbo’s outside housings are without damage, then to only make replacement of the inside so-called “cartridge” (CHRA) is in comparison much cheaper than to purchase one whole brand-new OEM turbo assembly.
- Faster Turnaround: In many cases, a cartridge swap repair is quicker than waiting for a completely new turbo to be shipped, effectively reducing equipment downtime.
- Guaranteed Original Fitment: By reusing the original external housings, there is no risk of a mismatch, ensuring a perfect fit with the engine.
Cons
- Limited Applicability: Repair is not an option for every situation. For catastrophic failures, a repair is pointless, and a full replacement is necessary.
- Risk of Repeat Failure: A repair only fixes the turbo itself, not the root cause of the failure. If the root cause is not identified and fixed, the repaired turbo will fail again quickly.
- High Demand for Skills & Equipment: The degree of repair quality is wholly standing upon the technician’s hand skill, together with the fineness of the special-use apparatus. 2. If the rebuild is done in a poor and not-so-professional manner, then it will, in a very short period, again bring forth failure because of the shaking vibration.
How Much Does It Cost to Repair & Replace a Turbocharger?
Of course, one of the biggest factors in this decision is the price. For heavy machinery, the cost can vary based on the size of the turbo and local labor rates. Here are some general estimates:
- Regular Repair: Expect to pay between $600 and $1,500. This includes the cost of the new CHRA and the labor to swap it.
- Overhaul Repair: The cost is often similar, ranging from $800 to $2,000+. The price depends heavily on whether any “hard parts” like the turbine shaft or compressor wheel need to be replaced in addition to the standard rebuild kit.
- Full Replacement: A completely new or remanufactured turbocharger assembly typically costs between $1,500 and $8,000+, depending on whether you choose an aftermarket or a premium OEM part.
Additionally, remember to factor in the cost of new gaskets, oil lines, and the labor to diagnose the initial problem and address its root cause.
Preventative Maintenance: How to Keep Your Turbo Healthy
Ultimately, the best repair is the one you never have to do. To maximize the life of your turbocharger and avoid premature failure, it’s crucial to follow a consistent schedule of Turbocharger Maintenance and Troubleshooting: Professional Tips and Solutions. Key practices include:
- Use High-Quality Oil: Always use the exact oil specification recommended by your machine’s manufacturer. Turbo engines are “brutally tough on motor oil,” and using a high-quality synthetic can make all the difference.
- Adhere to Service Intervals: Do not stretch oil change intervals. Clean oil is the lifeblood of a turbo.
- Inspect the Air Intake: Regularly check that your air filter is clean and that all hoses between the filter and the turbo are secure, with no cracks or loose clamps.
- Allow for a Cool-Down Period: After a heavy workload, let the engine idle for a few minutes before shutting it down. This allows the turbo’s temperature to stabilize and prevents oil coking.
In Conclusion
To sum up, after reading this guide, you now know how to choose the right method to resolve your turbocharger problem. Remember that choosing a repair because of a tight budget can be a mistake. If the damage is severe, a cheap repair only delays the final failure. Once you’ve determined that a repair is a wise option, then to identify whether a regular repair or a full overhaul is necessary. Furthermore, apply the preventative maintenance methods to extend your turbo’s lifespan and keep it running in optimal condition.
