Do you know what the various warning lights on your Kubota tractor’s dashboard mean? These warning lights often indicate potential equipment problems. If you are not familiar with their meaning, you may operate the equipment incorrectly or even damage it. This guide will serve as your comprehensive translator. We will decode the universal symbols, explain the color-coded system of urgency, and detail what you need to do when the most critical Kubota tractor warning lights appear. It helps you operate your Kubota tractor better.

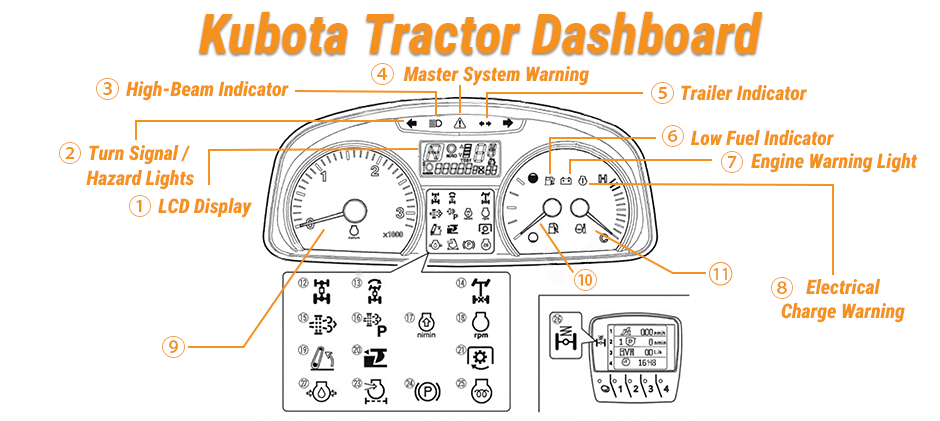

Dash Lights and Symbols for Kubota Tractor (Universal)
While dashboards can vary slightly between a compact B-Series and a large M-Series, most modern Kubota tractors share a universal set of symbols. The following list covers the most common lights you will encounter on a modern Kubota dashboard and what each one signifies.
- LCD Display: Shows engine hours, trip data, and key alerts.
- Turn Signal / Hazard Lights: Flashing arrows mean turn signals or hazards are on.
- High-Beam Indicator: Lights up when high-beam headlights are active.
- Master System Warning: Red icon means serious issue—stop the engine and seek service.
- Trailer Indicator: Indicates a trailer is connected to the electrical system.
- Low Fuel Indicator: Fuel is low—refuel soon.
- Electrical Charge Warning: Battery or charging system issue, like a failed alternator.
- Engine Warning Light: Shows an engine control system fault—needs diagnosis.
- Tachometer: Displays engine RPM (revolutions per minute).
- Fuel Gauge: Shows how much fuel is in the tank.
- Coolant Temp Gauge: Indicates engine temperature—red zone means overheating.
- 4WD Indicator: Confirms 4-wheel drive is engaged.
- Bi-Speed Turn Indicator: Shows bi-speed turning is active for tighter turns.
- Rear Diff Lock Light: Lit when rear wheels are locked for traction.
- DPF Regeneration Light: DPF is burning off soot—keep driving normally.
- Parked Regen Indicator: Flashes when a parked DPF regen is needed.
- Engine RPM Increase Light: DPF regen needs higher RPM—raise engine speed.
- Constant RPM Warning: Failed regen—park and restart regeneration.
- 3-Point Hitch Indicator: Active when the hitch is in use.
- Draft Control Light: Shows the hitch is in draft control mode.
- PTO Clutch Light: Indicates the PTO clutch is engaged.
- Oil Pressure Warning: Critical—engine oil pressure is too low. Shut down immediately.
- Air Cleaner Warning: The Air filter is clogged and needs service.
- Parking Brake Light: On when the parking brake is engaged.
- Glow Plug Indicator: Wait for this light to turn off before attempting to start the engine.
- Front Suspension Light: Shows front axle suspension is active (if equipped).
Recognizing Color-Coded Warning Lights
Before diving into specific symbols, the most important skill is to instantly recognize the severity of a warning based on its color. Kubota, like most manufacturers, uses a simple and universal color code to communicate urgency. Understanding this system allows you to make a split-second decision about whether to stop immediately or continue working.
Red Lights: CRITICAL FAILURE
A red warning light is your tractor’s equivalent of a scream for help. It signifies a serious, active malfunction that could cause severe and expensive damage to the engine or hydraulic systems or pose a direct safety risk.
When a red light appears, your protocol should always be the same:
- Safely disengage from your work.
- Move the tractor to a level, secure location.
- Shut down the engine.
- Investigate the cause immediately.
- Ignoring a red light, even for a few minutes, can be the difference between replacing a sensor and replacing an entire engine.
- Common Red Lights: Engine Oil Pressure Warning, Engine Temperature Warning, Master System Malfunction, Battery Charge Failure.
Orange/Yellow Lights: CAUTION
An orange or yellow light is a caution. Your tractor signals that a system isn’t working properly or that it’s time for routine maintenance. It doesn’t require an immediate shutdown, but you shouldn’t ignore it. You should plan to address the issue as soon as your current task is complete or at the end of the workday.
- Common Orange/Yellow Lights: Clogged Air Filter, Clogged Fuel Filter, DPF Regeneration Required, Low Fuel Level.
Green/Blue Lights: SYSTEM ACTIVE
Green and blue lights are not warnings. They are simply indicators to provide you with information. They confirm that a system you have intentionally activated is functioning as it should. There is no need for concern when you see these lights.
- Common Green/Blue Lights: 4WD Engaged, PTO Active, High-Beam Headlights On, Turn Signals.
Decoding Specific Kubota Tractor Warning Lights
Now that you can identify the severity by color, let’s dive into the most common and critical Kubota tractor warning lights you will encounter. Understanding what they mean and what to do is key to effective troubleshooting and maintenance.
Engine Oil Pressure Warning Light (Red)
What It Means: This is the most serious warning light. It indicates dangerously low oil pressure, which can cause severe engine damage if not addressed immediately.
What to Do:
- Stop the engine right away.
- After a few minutes, check the oil level with the dipstick.
- If it’s low, add the correct oil type.
- If the level is fine, do not restart the engine—it may be a mechanical issue.
Potential Causes: A clogged oil filter, a failed oil pump, or a faulty oil pressure sensor. Even if it’s just the sensor, treat the warning as real until confirmed otherwise.
Battery Charge Warning Light (Red)
What It Means: Your tractor’s battery isn’t being charged. It’s running on battery power alone and will shut down when the battery is drained.
What to Do:
- Check the fan (alternator) belt—if it’s broken or loose, the alternator won’t spin.
- Inspect battery terminals for corrosion or looseness.
- If both are fine, the alternator or voltage regulator may have failed.
Potential Causes: A faulty alternator is the most common issue. For owners handling their own repairs, FridayParts offers a wide range of reliable aftermarket alternators and other electrical Kubota tractor parts that provide OEM-level performance at a much better price.
Engine Temperature Warning Light (Red)
What It Means: The engine is overheating, which can cause serious damage like warped heads or a blown gasket.
What to Do:
- Reduce RPM and stop heavy work immediately.
- Move to a safe spot and let the engine idle briefly before shutting it off.
- NEVER open the radiator cap while hot—steam can cause severe burns.
- After cooling, check coolant levels in the reservoir and radiator.
- Inspect the radiator and AC condenser for grass, dust, or mud buildup.
Potential Causes: A clogged radiator is the most common issue. If it’s clean and coolant levels are fine, check for a bad thermostat, a failed water pump, or a hose leak.
Air Filter Warning Light (Orange)
What It Means: The engine air filter is clogged with dust, restricting airflow and affecting performance.
What to Do:
- Finish your task, then park and shut down the tractor.
- Open the air filter housing and remove the filter.
- If it’s heavily packed with dirt, replace it. Tapping it out only offers a short-term fix.
Potential Causes: This warning usually results from normal use in dusty environments. A clogged filter reduces engine power, increases fuel use, and risks long-term damage. Keeping spare filters on hand ensures smooth operation.
DPF System Warning Lights (Orange/Blue)
What it Means: For modern tractors, these lights relate to the emissions system. A blue or green light means the Diesel Particulate Filter (DPF) is cleaning itself automatically (regenerating), and you should continue working. An orange light means the system needs to perform a cleaning cycle soon.
What to Do: If you see the orange DPF light, you should operate the tractor under a medium to heavy load at a higher RPM. This will generate the heat needed for the system to clean itself. If you only do light-duty work, you may need to perform a manual “parked” regeneration as described in your manual.
Common Warning Light Problems
Sometimes, the problem isn’t the system; it’s the warning light itself. If a light comes on but you are certain the system it monitors is healthy (e.g., the oil pressure light is on, but you’ve manually verified the pressure with a gauge), the issue could be electrical.
- Faulty Sensors: The sensors that monitor pressure, temperature, and fluid levels are hardworking Kubota tractor parts that can fail over time. A bad sensor can send a false signal, triggering a warning light.
- Wiring Issues: A wire could have rubbed through its insulation and be shorting to the frame, or a connector could be loose or corroded. A careful visual inspection of the wiring harness leading to the sensor in question can often reveal the problem.
- The Best Defense: The most effective way to deal with Kubota tractor warning lights is to prevent them from coming on in the first place.
Adhering to your tractor’s maintenance schedule and using high-quality replacement parts for every service is your best strategy. When you need reliable filters, sensors, or electrical components, FridayParts provides a vast inventory of affordable parts to help you keep your maintenance on schedule and your dashboard clear of warnings.
Conclusion
Your Kubota’s dashboard is your partner in maintaining the health of your machine. By learning to understand the language of its warning lights—recognizing the colors, decoding the symbols, and taking prompt, appropriate action—you empower yourself to prevent minor issues from escalating into major repairs. This proactive approach, combined with a commitment to regular maintenance using quality Kubota replacement parts, is the ultimate strategy for ensuring your Kubota tractor provides powerful and reliable service for many years to come.
