If your Toyota Check Engine Light has just come on and your OBD-II scanner shows P0455, don’t panic. This code indicates a large leak in the EVAP (Evaporative Emission Control) system, a common trouble point in many Toyota Corolla, Camry, RAV4, Tacoma, Prius, Tundra, Highlander, and 4Runner models.
The good news? A P0455 code Toyota usually isn’t serious — and in many cases, the fix is quick and affordable. Let’s explore what this Toyota EVAP leak code means, what causes it, and how to fix it step by step.
What Does the Toyota P0455 Code Mean?
DTC P0455 Toyota = “Evaporative Emission System Leak Detected (Large Leak).”

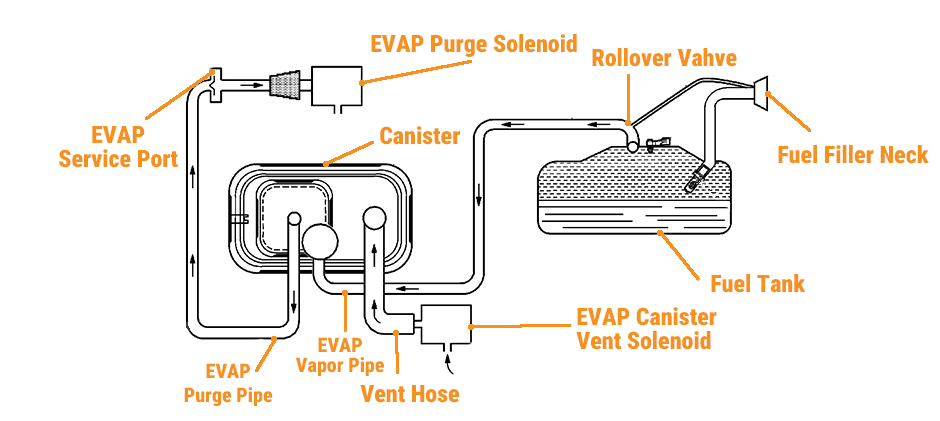

Your Toyota EVAP system prevents gasoline vapors from escaping into the atmosphere. Vapor from the fuel tank is stored in a charcoal canister, then drawn into the engine through the purge control valve (VSV) to burn during regular operation.
During self-diagnostics, the Engine Control Module (ECM) seals the system and checks for pressure drop. If the pressure falls too quickly, indicating that vapor is escaping, it sets the P0455 Toyota code.
Common Symptoms of the P0455 Code Toyota
Even though this trouble code often doesn’t affect performance, it has a few telltale signs:
- Check Engine Light (CEL) illuminated
- Fuel smell, especially after refueling or near the gas cap
- Slight fuel economy decrease
- Failed emissions or smog test
Some Toyota owners also report light rough idling or longer cranking due to unrelated vacuum leaks — but this isn’t typical for P0455 Toyota.
Common Causes of the P0455 Toyota Code
The keyword “large leak” might make it sound serious, but the cause is often simple. Here are the most common causes for the Toyota Corolla, Camry, RAV4, Prius, Highlander, Tundra, and Tacoma:
- Loose or Damaged Gas Cap — The most frequent cause of the Toyota code P0455. If it’s not tightened until it clicks or its rubber seal is cracked, the EVAP system can’t seal.
- Faulty Purge Valve (VSV) — A purge solenoid that sticks open creates a continuous vacuum leak. Learning how to fix a stuck solenoid valve can be a useful skill for this and other repairs.
- Cracked or Disconnected Hoses — Old EVAP lines around the canister or purge valve can dry out or split.
- Defective Vent Valve Solenoid — Common in Toyota Tacomas and 4Runners; if stuck open, the system fails to hold pressure.
- Cracked Charcoal Canister — Old EVAP lines around the canister or purge valve can dry out or split. While different systems, the principles of hose failure are similar to those seen in bad radiator hoses.
- Fuel Filler Neck or Cap Sealing Damage — Prevents the gas cap from sealing.
- Leaking Fuel Tank or Pressure Sensor Fault — Less common but possible on older Toyotas. Diagnosing pressure issues can sometimes involve checking related components, like learning how to test a fuel pressure regulator.
Step-by-Step Toyota P0455 Diagnosis
Step 1: Start with the Gas Cap
Check that your Toyota gas cap is present, tightened securely, and has a clean, intact rubber O‑ring. If cracked or missing, replace it — this alone fixes over 50% of P0455 Toyota Corolla or Camry cases.
Step 2: Scan for Related EVAP Codes
Run a scan for P0440, P0441, P0446, P0456, or combined codes like P0441 P0455 Toyota — these related codes identify whether the purge or vent control circuit is malfunctioning.
Step 3: Perform a Visual Inspection
Using a flashlight, inspect under the hood near the purge valve, and under the rear of your Toyota around the charcoal canister. Look for brittle or disconnected hoses, cracked fittings, and corrosion.
Step 4: Professional Leak Test (Smoke Test)
If you cannot locate the leak visually, have a technician run a smoke test. Smoke will seep from the leak, pinpointing the exact failure point.
Safety Tip: Do not use compressed air to test the EVAP system — it can damage sensitive components.
How to Fix the P0455 Toyota Code
Once you identify the source, repairs are generally straightforward:
- Tighten or replace the gas cap
- Replace worn or broken EVAP hoses
- Install a new purge or vent valve solenoid
- Replace a damaged charcoal canister
- Repair or replace the fuel filler neck or seal
After repairs, clear the code with an OBD‑II scanner, then complete a drive cycle so your Toyota ECM can re‑test and confirm the fix.
FAQs About the P0455 Toyota Code
Can I drive with a P0455 code in my Toyota?
Yes. Your Toyota RAV4, Corolla, or Camry will run normally. However, fix it soon to restore fuel efficiency and pass emissions tests.
How serious is the EVAP leak?
Not engine‑critical but important for fuel economy and environmental compliance.
Difference between Toyota P0455 and P0456?
- P0455: Large system leak (loose cap, broken hose)
- P0456: Small leak (fine crack or pinhole)
Cost to fix Toyota P0455?
- Tighten gas cap: Free
- New gas cap: $15–$40
- Hose or valve replacement: $50–$250
- Charcoal canister: $300–$800+
