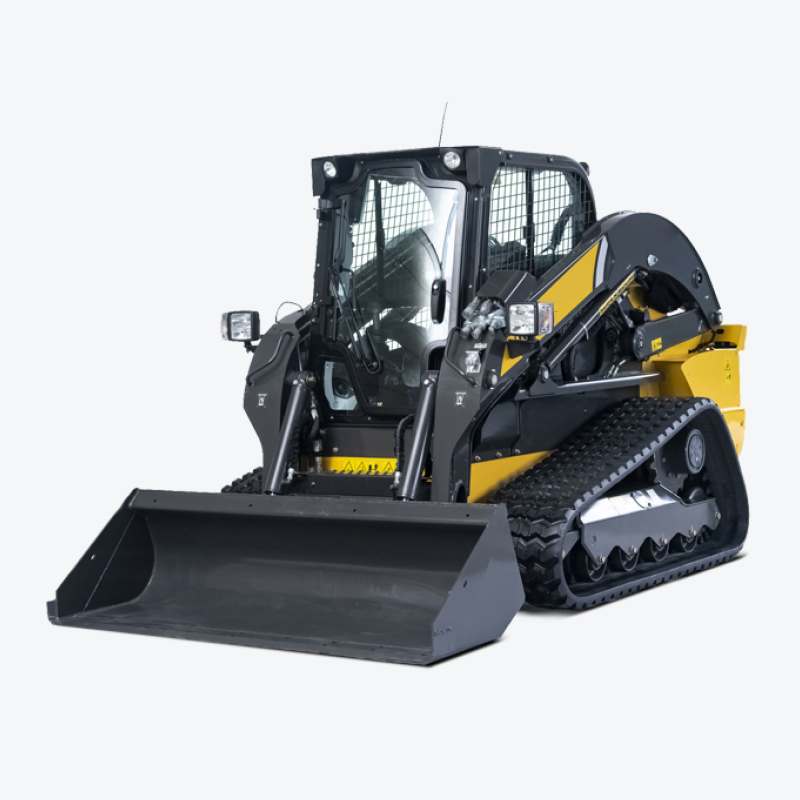

The New Holland C337 compact track loader is a high-performance vertical lift machine. It’s for heavy-duty grading, loading and material handling on rough terrain. Fast and strong in lifting, the C337 works great for commercial construction, forestry and large landscaping jobs. Its rubber tracks and low ground pressure keep it stable on soft or uneven ground. Easy-access service points help cut downtime and boost daily productivity. The New Holland C337 specs not only drive its performance, but also help you pick the right replacement parts.
New Holland C337 Features Overview
The C337 comes with great features to help you work faster and stay comfortable all day.
Tackle Tough Work with Ease
It runs on a solid 74 HP (55 kW) Tier 4 Final engine, paired with a quick hydraulic system. You get strong power while using less fuel. Straight-line hydraulic pumps let the machine run smoother and quieter. Lift cycles only take 4.5 seconds to raise and 2.6 seconds to lower, so you get more work done fast.
Smoother Ride & Longer Service Life
The low-profile undercarriage gives 9.6 inches (244 mm) of ground clearance. It’s easier to clean and built to last longer. 64.5 inches (1639 mm) of track stays in contact with the ground. Steel-reinforced tracks roll on rubber, delivering a much smoother ride and extending track life.
Built for Lifting and Hauling
The Super Boom® vertical lift design offers 37 inches (941 mm) of dump reach and a max dump height over 100 inches (2581 mm). You can load material right in the middle of tall trucks for precise, efficient loading.
8-Inch Multifunction LCD Screen
Mounted on the right front pillar, this handy screen has a built-in backup camera. It shows key real-time info like engine RPM, fuel level and hydraulic oil temperature. It makes every job simpler and safer.
Spacious, Comfortable Cab
The 300 Series has one of the roomiest cabs in the industry, with great all-around visibility. The fully sealed, pressurized cab blocks dust and cuts down noise. You can also add upgrades like a heated air-suspension seat to stay comfy and focused from start to finish.
Simple, Fast Daily Maintenance
No complicated service work here. Open the rear door and hood, and you can reach engine oil, fuel cap, hydraulic oil and coolant with no tools needed. The whole cab tilts forward, too, so you can easily access main key parts for repairs and upkeep.
Serial Number Location
The serial number plate for the New Holland C337 is located on the left side of the machine’s frame, typically behind the cab or near the loader arm pivot.
Always use the serial number prefix to identify the correct model year when ordering replacement components to ensure a perfect fit.
New Holland C337 Compact Track Loader Specifications
Engine
| Manufacturer | FPT (Fiat Powertrain Technologies) |
|---|---|
| Model | F5B FL463A G001 |
| Emissions Tier | Tier 4 Final |
| Gross Horsepower | 74 hp (55 kW) @ 2500 rpm |
| Displacement | 207.5 in³ (3.4 L) |
| Aspiration | Turbocharged, Aftercooled |
Driveline & Performance
| Tipping Load | 7,400 lbs (3357 kg) |
|---|---|
| Rated Operating Capacity | 2,590 lbs (1175 kg) (at 35% of tip) |
| Max Travel Speed | 5.5 mph (8.9 km/h) |
| Bucket Breakout Force | 7,360 lbf (32.7 kN) |
| Ground Bearing Pressure | 4.2 psi |
Hydraulic System
| Standard Pump Flow | 24.2 gpm (91.5 L/min) |
|---|---|
| Optional High-Flow | 37.6 gpm (142.3 L/min) |
| System Pressure | 3,046 psi |
Dimensions & Weights
| Operating Weight | 9,945 lbs (4511 kg) |
|---|---|
| Height to Top of Cab | 80.4 in (2042 mm) |
| Length with Bucket | 141.1 in (3584 mm) |
| Width Over Tracks | 76.5 in (1943 mm) |
| Max Dump Height | 104.5 in (2654 mm) |
| Reach at Max Dump Height | 37 in (940 mm) |
| Ground Clearance | 9.6 in (244 mm) |
| Fuel Tank Capacity | 25.5 gal (US) (96.5 L) |
Common Issues & Fixes
Even with regular upkeep, your machine can still run into common problems. Below are easy fixes for each issue.
- Track wear or track coming off: This usually happens when tracks are too tight or too loose, or when sprockets and idlers wear down. Check and adjust track tension on a routine basis. Inspect rollers, sprockets and idlers often. Swap out worn parts in time to stop the track from derailing.
- Hydraulic overheating: It’s mostly caused by low, old hydraulic oil or a plugged cooling radiator. Check hydraulic oil levels every day. Flush the whole system, and change the oil and filters following the official service schedule to keep the hydraulics running well.
- Glow plug issues & hard cold starts: Worn glow plugs or bad wiring connections are the main causes. Test the wires leading to the glow plugs. If the connections work fine, install new glow plugs to make sure the engine starts easily in cold weather.
- Lift or tilt cylinder sagging: Worn internal seals inside hydraulic cylinders let oil leak internally. Use the right seal repair kits to rebuild these cylinders. This brings back steady holding strength and stops slow, unwanted cylinder movement.
Related New Holland C337 Parts
Conclusion
Keeping your New Holland C337 running at peak performance means paying attention to its specs and addressing wear before it leads to major downtime. At FridayParts, we make it easy to find the exact New Holland parts you need. If you have any questions about matching a part to your C337’s specifications, don’t hesitate to reach out.
