Your Massey Ferguson tractor’s dashboard is the easiest way your machine tells you something is wrong. Every warning light and symbol gives you important information about your tractor’s condition. This guide explains what the warning lights on a Massey Ferguson tractor dashboard mean.

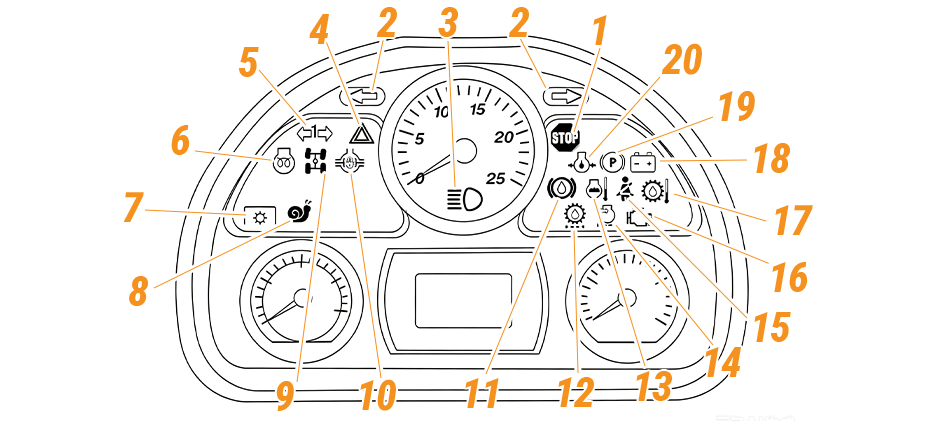

Dashboard Warning Light Symbols Explained
Your tractor’s instrument panel is filled with symbols, each with a specific meaning. Let’s walk through them one by one.
1. Major Failure Light (STOP Indicator)
It’s an octagon with the word “STOP,” and it means a serious fault has occurred. If you see this light, you must shut off the engine immediately to prevent severe damage.Your best course of action is to have the tractor diagnosed by a qualified dealer.
2. Right/Left Indicator Light
These are simple informational lights. The left or right arrow will flash when you activate your turn signal, letting you know it’s working as expected.
3. Headlight High Beam Indicator
This light, shaped like a headlamp with beams pointing forward, simply lets you know that your high beams are on.
4. Failure Alert Indicator
This triangular hazard-style light signals a general fault, often in the electrical or hydraulic systems. It’s a call to have the tractor diagnosed to pinpoint the specific issue.
5. Trailer Indicator Light
This symbol, often showing arrows, confirms that the trailer’s turn signals are connected and functioning with the tractor’s signals.
6. Engine Heater Light
This symbol of a coil indicates that the engine block heater is active. This is used in cold weather to warm the engine before starting, making it easier to turn over and reducing wear.
7. Power Take-Off (PTO) Indicator
This light confirms that the Power Take-Off (PTO) system is engaged. Different lights may correspond to different PTO speeds (e.g., 540 or 1000 RPM). It’s an informational light to confirm your selection.
8. Super Creep Gear Indicator
A green snail symbol appears when you engage the super creep gear, which allows the tractor to move at a very slow, controlled speed. This is an informational light confirming the gear selection.
9. 4WD Lock Indicator
On four-wheel-drive models, this light shows that the 4WD system is engaged, meaning all four wheels are receiving power.
10. Differential Lock Light
A symbol of an axle with a lock on it means the differential lock is engaged. This locks the wheels on an axle together to turn at the same speed, providing better traction on slippery or uneven ground. You should disengage it on hard surfaces to allow the wheels to turn at different speeds when cornering.
11. Brake Fluid Level Warning Indicator
This light, a circle with a drop of liquid inside, warns that the brake fluid level is too low. Low fluid can compromise your braking ability. Before topping it off, inspect the system for leaks.
12. Transmission Oil Filter Clogging Light
Similar to the transmission temperature light but with dashed lines, this symbol means the transmission oil filter is clogged. Debris in the oil can block the filter over time. The filter needs to be cleaned or, more commonly, replaced.
13. Engine Temperature Light
A thermometer symbol indicates that the engine coolant temperature has exceeded the safe operating limit. This is a critical warning. Stop the engine immediately to prevent overheating and severe engine damage. Check the coolant level (once the engine has cooled) and look for any leaks in the cooling system.
14. Air Filter Clogging Indicator
This symbol, an arrow going through a filter, tells you that the engine’s air filter is blocked. A clogged filter restricts airflow, leading to reduced engine performance and increased fuel consumption. Cleaning or replacing the air filter will usually resolve this.
15. Operator Seat Indicator
This light, showing a person in a seat with a seatbelt, is a safety reminder. It stays on until the operator has buckled their seatbelt. If it remains lit with the belt buckled, the sensor in the buckle may be faulty.
16. Engine Error Light
Commonly known as the “check engine” light, this symbol of an engine block indicates that the engine’s control unit has detected a fault.The issue is often electrical, but it requires prompt attention. A diagnostic check is needed to identify the specific error code and fix the problem.
17. Transmission Oil Temperature Indicator
A symbol showing a gear with a thermometer inside means your transmission fluid is overheating. This can cause serious damage to the transmission. Stop the tractor and allow the system to cool down. If the problem persists, it may indicate low fluid levels or a more significant issue.
18. Alternator Light (Charging System Indicator)
This light, shaped like a battery, warns you of a problem with the charging system. It could be a failing alternator, a bad battery, or a loose connection. The system is not charging, and the tractor is running only on battery power, which won’t last long. It’s important to get this checked to avoid getting stranded.
19. Handbrake Light
A circle with a “P” inside indicates that the parking brake is engaged. If the light stays on after you’ve released the brake, it could signal a malfunction in the braking system that needs to be inspected.
20. Engine Oil Pressure Indicator
This symbol, which looks like an oil can, signals that the engine’s oil pressure has fallen below a safe level. This could be due to a low oil level or a problem with the oil pump. Continuing to operate the tractor with this light on can lead to catastrophic engine failure. Stop the engine and check the oil level. If the level is fine, do not restart the engine and seek professional service.
What Do the Colours of Massey Ferguson Dashboard Warning Lights Mean?
The color of a warning light is just as important as the symbol itself. Colors is communicate the urgency of the issue.
Red Warning Lights
Red lights signal a serious problem that requires you to stop the tractor immediately to prevent major damage or a safety hazard. Examples include the Major Failure (STOP) Light, Engine Oil Pressure Indicator, and Engine Temperature Light.
Amber or Yellow Warning Lights
Amber or yellow lights indicate a less urgent issue or a maintenance need. You can typically continue operating for a short time, but you should address the problem as soon as possible. Examples include the Air Filter Clogging Indicator and Transmission Oil Filter Clogging Light.
Blue or Green Warning Lights
These colors are generally informational. They don’t signal a problem but rather confirm that a system or feature is active and working correctly. Examples include the Headlight High Beam Indicator (blue) and the Turn Signal Indicators (green).
Conclusion
Your Massey Ferguson dashboard is an early warning system for your tractor. Understanding what each warning light symbol and color means helps you catch problems early, reduce downtime, and avoid expensive repairs. If a warning light stays on or a part needs replacing, fix the problem as soon as possible. At FridayParts, you’ll find reliable aftermarket Massey Ferguson tractor parts to help keep your tractor running strong and ready for the next job.
FAQs
What do I do first if the red STOP light pops up on my Massey Ferguson dash?
Pull over safely and turn the engine off right away. Running the tractor any longer will wreck it and cost you a ton to fix.
Can I leave an amber/yellow warning light on and keep working for a bit?
A yellow light doesn’t mean you have to stop instantly like a red one, but don’t brush it off. It’s just a heads-up warning. Sort the problem as soon as you get a chance, or it’ll turn into a worse issue.
I fixed the issue, but the dashboard warning light’s still on. What now?
If the light stays lit after your repair (like swapping a filter or refilling fluids), a few things could be wrong.
- The issue might be different from what you suspected;
- The new replacement could be bad;
- or you’ll need a mechanic to reset the system. Engine warning lights store fault codes, and you need a diagnostic scanner to clear those codes.
