The Kubota Z482 may be small, but it’s a tough little diesel engine. Still, even a strong 2-cylinder engine needs regular care. Skipping maintenance can lead to expensive repairs and lost time on the job.
This simple guide from FridayParts explains the key specs, basic maintenance tips, and common problems of the Kubota Z482 engine — so your off-road machinery can keep working smoothly.
What Are The Key Engine Specifications?

Before doing any maintenance, it’s important to know the main specs of your engine.

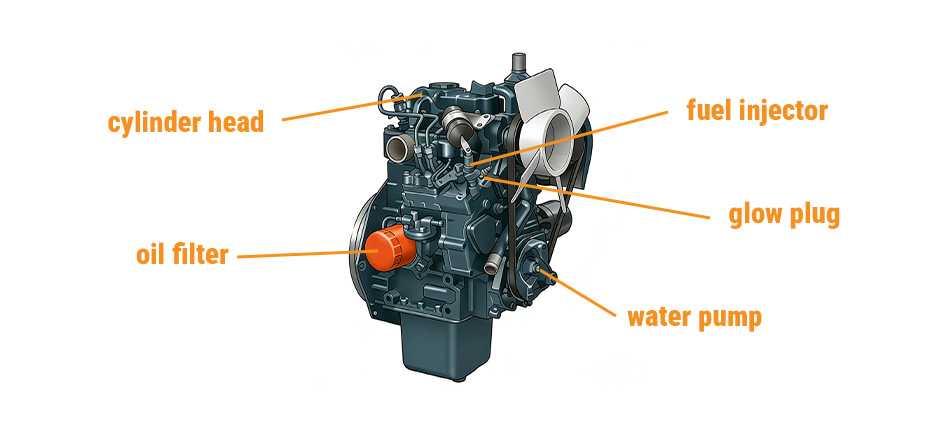

The Kubota Z482, part of the Super Mini Series, is well-known for being compact, lightweight, and fuel-efficient. Here’s what you need to know:
| Feature | Specification |
|---|---|
| Type | Vertical, water-cooled, 2-cylinder diesel |
| Displacement | 0.479 L / 29.23 cu.in |
| Rated Output | 9.9 kW / 13.3 HP @ 3600 rpm |
| Bore x Stroke | 67 mm x 68 mm |
| Combustion System | Indirect Injection (E-TVCS) |
| Firing Order | 1-2 |
These are your go-to numbers for checking compatibility, parts replacement, and service planning.
How To Perform Routine Maintenance?
Regular maintenance is the easiest way to keep your Z482 running smoothly and avoid breakdowns.
All it takes is clean oil, proper valve lash, and a cooling system that works correctly.
Follow the standard service intervals — it’s cheaper and faster than a big engine repair later on.
What Are The Fluid And Service Specifications?
Use the right fluids and keep them at proper levels. That means checking and changing your oil and coolant on time.
| Item | Factory Specification |
|---|---|
| Engine Oil Capacity | 1.8 L (1.9 US qt) |
| Recommended Oil | API Service CH-4, CI-4, or higher |
| Coolant Capacity | ~2.1 L (2.2 US qt) |
| Valve Clearance (Cold) | 0.145 – 0.185 mm |
“Checking your oil before every start-up is a small step that prevents big failures. Low oil is the number one reason small diesel engines stop working.”
Always check your oil before use, make sure there are no leaks, and clean out dirt from the radiator regularly.
What Are 3 Common Z482 Engine Problems?
Even with regular service, problems can happen. Here are the three most common issues Z482 engine owners face — and what you can do about them.
1. Engine Overheating
If your Z482 is overheating, it’s likely a cooling system problem.
Because this engine is small and compact, its radiator can easily clog with dust, mud, or grass.
Check for:
- Low coolant levels
- A blocked radiator screen
- A stuck thermostat
- A loose or worn water pump belt
Cleaning or replacing these simple parts can often fix the problem.
2. Hard Starting, Especially When Cold
If your engine turns over but won’t start on a cold morning, the issue is usually the glow plug system.
The Z482 uses glow plugs to warm the cylinders before starting.
If it cranks but doesn’t fire:
- Test the glow plugs and relay
- Check the battery voltage — a weak battery might not spin the engine fast enough to build compression
Fixing these small parts usually solves the issue quickly.
3. Excessive White or Black Smoke
Exhaust smoke color tells you a lot about engine health.
- White Smoke: Unburned fuel. This can mean poor compression, wrong injection timing, or bad glow plugs.
- Black Smoke: Too much fuel or not enough air. Start by checking the air filter — a clogged one reduces airflow. If it’s clean, the fuel injectors might need cleaning or replacement.
What Are The Critical Tightening Torques?
When doing engine repairs, always use the correct torque values.
Tightening bolts too hard can damage parts; tightening too little can cause leaks or looseness.
Always use a torque wrench — it’s not optional.
| Part | Torque Value |
|---|---|
| Cylinder Head Bolts | 37.3 – 42.2 N·m |
| Connecting Rod Nuts | 16.7 – 18.6 N·m |
| Flywheel Bolts | 49.0 – 53.9 N·m |
| Glow Plugs | 8.0 – 12.0 N·m |
“Using a torque wrench ensures every part is tight enough to seal properly but not tight enough to crack or warp.”
Conclusion
Accurate specs and regular maintenance mean fewer surprises in the field. By following basic steps — checking oil, adjusting valves, and keeping coolant clean — your Kubota Z482 can last for thousands of hours of reliable service.
When it’s time for a replacement part, quality matters as much as the right torque or oil. To find reliable Kubota Z482 engine parts, from water pumps to rebuild kits, visit FridayParts for components designed to keep your Kubota engine running strong in tough off-road conditions.
