Whether you are a Kubota mini excavator owner or enthusiast, you may find there are two main series: the K-series and the U-series. So, what’s the difference? One word to say, the K is for power and stability in open spaces, while the U is for agility in tight corners.
This guide aims to help you differentiate their key features & applications, and more, ensuring you choose the right model for the specific job.

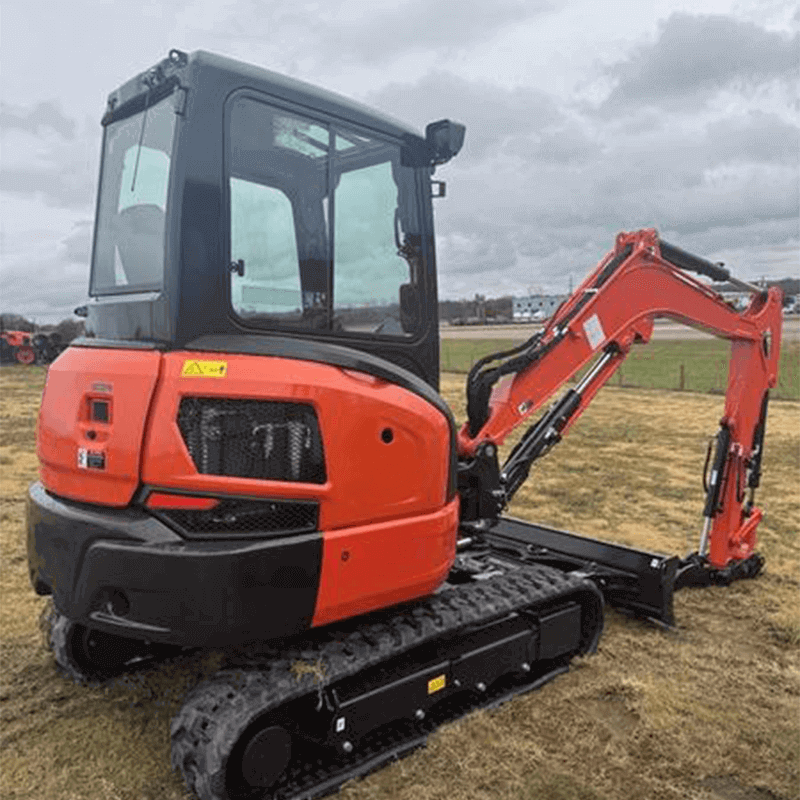

Kubota Compact Excavator K-Series
The Kubota K-Series (often designated as “KX”) represents the brand’s conventional tail-swing excavators. This means that when the operator rotates the cab, the rear counterweight extends beyond the tracks.
Key Features & Applications
- Maximum Power & Stability: The conventional design allows for a heavier counterweight to be placed further back, giving the K-Series superior stability. This translates directly into greater lifting capacity and more aggressive digging power compared to a U-Series of a similar size.
- Built for Open Spaces: This series shines where space is not a constraint. It’s the ideal choice for general construction, landscaping projects with ample room, farm work, and utility trenching. If your primary need is raw performance, the K-Series is your go-to.
| Model | Horsepower | Operating Weight (Approx.) | Max Digging Depth | Key Advantage |
|---|---|---|---|---|
| K008-5 | 10.3 | 2,315 lbs | 5′ 8″ | Ultra-compact; fits through standard doorways. |
| KX018-4 | 16.1 | 3,748 lbs | 7′ 9″ | Great balance of compact size and digging power. |
| KX030-4 | 23.3 | 6,272 lbs | 9′ 7″ | A versatile workhorse for general-purpose tasks. |
| KX033-4 | 23.3 | 7,420 lbs | 10′ 6″ | Added reach and stability over the KX030. |
| KX040-4 | 40.4 | 9,195 lbs | 11′ 2″ | Serious power for demanding construction jobs. |
| KX057-5 | 47.6 | 12,200 lbs | 12′ 8″ | Excellent power-to-weight ratio for heavy lifting. |
| KX080-5 | 66.6 | 18,520 lbs | 15′ 1″ | Near full-size excavator power in a compact frame. |

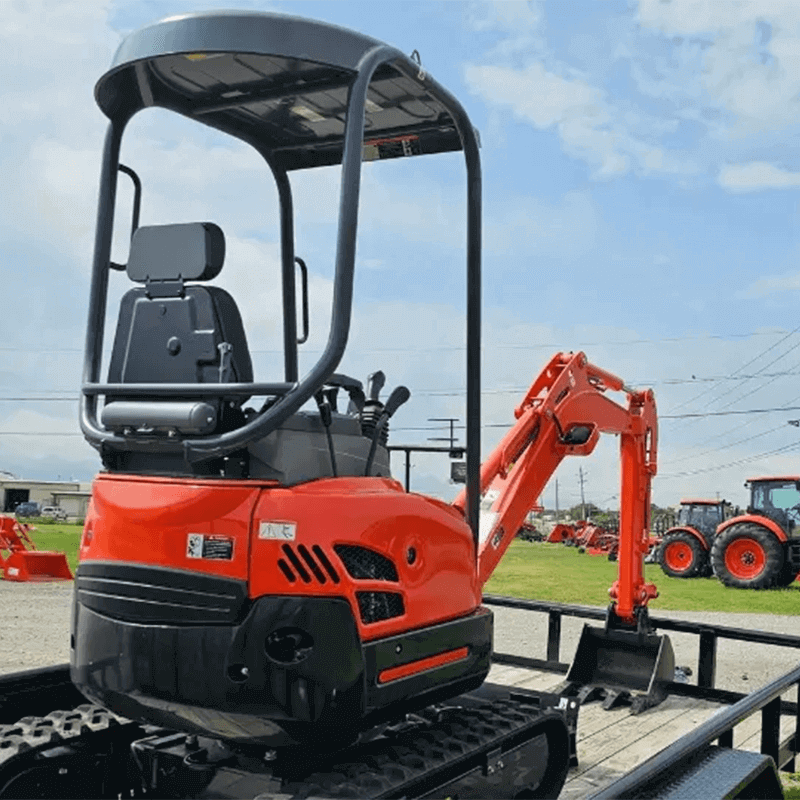

Kubota Compact Excavator U-Series
The Kubota U-Series excavators are famous for their zero-tail swing or tight-tail swing design. This brilliant engineering ensures that when you rotate the cab, the rear of the machine stays within the width of its tracks.
Key Features & Applications
- Unmatched Maneuverability: The ability to rotate freely without worrying about the tail hitting a wall, fence, or other obstacle is a game-changer. This feature significantly increases efficiency and reduces operator stress in confined spaces.
- Enhanced Safety: By eliminating the rear overhang, the U-Series significantly reduces the risk of job site accidents, making it perfect for busy or restricted areas. It’s the ultimate choice for urban construction, residential landscaping, indoor demolition, and road work where you’re operating right next to traffic.
| Model | Horsepower (HP) | Operating Weight (Approx.) | Max Digging Depth | Key Advantage |
|---|---|---|---|---|
| U10-5 | 10.3 | 2,646 lbs | 5′ 11″ | Ultra-compact zero-tail swing; fits through narrow doorways/gates. |
| U17 | 16.1 | 3,803 lbs | 7′ 7″ | The perfect entry into zero-tail swing agility. |
| U27-4 | 20.8 | 5,622 lbs | 9′ 5″ | More power and depth while remaining highly nimble. |
| U35-4 | 23.3 | 7,904 lbs | 9′ 8″ | blend of power and access. |
| U48-5 | 40.4 | 10,648 lbs | 10′ 8″ | Serious digging force. |
| U55-5 | 47.6 | 11,508 lbs | 11′ 8″ | Maximum power and comfort. |
Which Series Should You Choose?
Generally, you should choose the series depending on your worksite.
Choose the K-Series if:
- You primarily work in open areas with plenty of room to maneuver.
- Your top priorities are maximum digging force and lifting capacity.
- You need the best possible stability for heavy-duty tasks.
Choose the U-Series if:
- You frequently work in tight, confined spaces like backyards, between buildings, or on roadways.
- Job site safety and avoiding property damage are your highest priorities.
- You need the flexibility to dig and rotate right next to an obstacle.
But the most important rule is to be flexible, choose the most suitable model based on the condition and your needs!
In Conclusion
Every model has its existing reason; you only need to choose the most suitable one depending on your work site and needs.
