Need a Kohler spark plug cross-reference you can actually use in the field? This guide gives you a clean chart, the plug selection logic behind it, common gap ranges, and simple installation tips for Kohler engines. You can use it to narrow down the right spark plug faster, but one detail matters more than the chart itself. The final match should always come from the engine model, spec number, ignition type, and fuel type.
Kohler Spark Plug Cross Reference Chart
These charts cover common Kohler engine families, typical part numbers, plug families, and gap references.
K Series and Magnum
| Engine Series / Model | Kohler Part Number | Champion Plug | Gap | Notes |
|---|---|---|---|---|
| K90-K181 | 41 132 06-S / 41 132 02-S | J19LM / CJ8 / RCJ8 | 0.025 | Verify by exact model and spec number |
| K241-K341 Magneto | 25 132 10-S | H10C / RH10C | 0.025 | Magneto versions often use a tighter gap |
| K241-K341 Battery / Breakerless | 25 132 10-S | H10C / RH10C | 0.035 | Confirm exact ignition setup |
| K361 | 25 132 10-S | H10C / RH10C | 0.035 | Check engine tag before ordering |
| K482-K582 | 25 132 10-S | H10C / RH10C | 0.035 | Twin cylinder K Series range |
| K660-K662 | 41 132 06-S | J19LM / RJ19LM | 0.025 | Confirm resistor requirement |
| KT17-KT21 | 52 132 02-S | RV17YC | 0.025 | Verify with service listing |
| M8 | 41 132 02-S | CJ8 / RCJ8 | 0.025 | Short-reach plug family |
| M10-M16 | 25 132 10-S | H10C / RH10C | 0.025 | Long-reach family |
| M18-M20 | 52 132 02-S | RV17YC | 0.035 | Some sources list 0.025, so verify |
If the old plug shows carbon fouling, oil deposits, or repeated misfires, it may also be worth checking related carburetors and fuel system parts during service.
Command Series
| Engine Series / Model | Kohler Part Number | Champion Plug | Gap | Notes |
|---|---|---|---|---|
| CH5-CH16 | 12 132 02-S | RC12YC | 0.040 | Common on smaller Command models |
| CH18-CH26 Gasoline | 12 132 02-S | RC12YC | 0.030 | Standard gasoline applications |
| CH18-CH26 LPG | 25 132 08-S | RC78PYP | 0.030 | LPG-specific plug family |
| CH410-CH450 | 12 132 02-S | RC12YC | 0.030 | Single-cylinder Command range |
| CH620-CH750 | 12 132 02-S | RC12YC | 0.030 | Common V-twin Command range |
| CH940-CH1000 | 62 132 04-S | XC10YC | 0.030 | Command Pro heavy-duty range |
| CV11-CV16 Gasoline | 12 132 02-S | RC12YC | 0.040 | Standard gasoline versions |
| CV11-CV16 LPG | 25 132 08-S | RC78PYP | 0.030 | LPG-specific application |
| CV430-CV493 | 12 132 02-S | RC12YC | 0.030 | Verify by engine tag |
| CV620-CV750 | 12 132 02-S | RC12YC | 0.030 | Common V-twin application |
| CV940-CV1000 | 62 132 04-S | XC10YC | 0.030 | Large commercial twin range |
For engines used in commercial mowing or long-duty cycles, checking starter solenoids, charging system parts, and spark plug wires can help if ignition problems continue after plug replacement.
Courage, Triad, LH, and CS Series
| Engine Series / Model | Kohler Part Number | Champion Plug | Gap | Notes |
|---|---|---|---|---|
| SV470 | 12 132 02-S | QC12YC | 0.030 | Listed separately in some catalogs |
| SV471-SV620 | 12 132 02-S | RC12YC | 0.030 | Courage single-cylinder range |
| SV710-SV720 | 12 132 02-S | RC12YC | 0.030 | Courage twin applications |
| SV725-SV740 | 12 132 02-S / 25 132 14-S | RC12YC / RC12PYC | 0.030 | Standard or platinum plug by spec |
| SV730 / SV730 Pro | 12 132 02-S / 12 132 12-S / 25 132 14-S | RC12YC / RC12PYC / XC12YC | 0.030 | Check the exact engine spec |
| SV735-SV840 | 12 132 02-S / 25 132 14-S | RC12YC / RC12PYC / XC12YC | 0.030 | Confirm plug design before ordering |
| TH16-TH18 | 12 132 02-S | RC12YC | 0.030 | Triad and horizontal shaft family |
| TH520-TH650 | 12 132 02-S | RC12YC | 0.030 | Verify the exact application |
| LH560-LH775 | 66 132 01-S | RC14YC | 0.030 | Large horizontal shaft engines |
| CS4-CS12 | 66 132 01-S | RN14YC / RC14YC | 0.030 | Confirm the exact model and gap |
| CS12.75-CS13 | 12 132 02-S | RC12YC | 0.040 | Check the exact variant |
This Kohler spark plug cross-reference gives a strong starting point, but it works best when paired with the engine tag. That is especially true on older equipment or machines with unknown service history.
The safest way to use a Kohler spark plug cross-reference is to treat the chart as a fast filter, not the last step. Start with the engine model and spec number. Then confirm ignition type and fuel type. After that, match the Kohler part number, plug family, and gap. If you do that in order, you avoid most fitment mistakes and make spark plug replacement much easier.
A quick ignition tune-up often goes better when related air filters, fuel filters, and ignition coils are checked at the same time.
How To Choose the Right Spark Plug?
A chart helps, but the real value comes from knowing how to narrow the choice. Spark plug selection should follow a simple order.
Check The Engine Model And Spec Number
This is the first step because the same series may include several spark plug listings. A Kohler engine family can share one block design but still use a different plug or gap depending on the spec number.
Start by checking:
- Engine model
- Spec number
- Serial number if needed
- Fuel type
- Ignition type
Without that information, even a good Kohler spark plug cross-reference can only provide a likely match.
Confirm Ignition Type
Some Kohler engines use different gap settings based on the ignition system. This matters most in older K Series engines.
For example:
- Magneto ignition often uses 0.025
- Battery ignition may use 0.035
- Breakerless systems may follow a similar higher gap range
That is why the gap should never be guessed just from the engine family alone.
If the engine shows weak spark or hard starting, it may also be worth checking spark plug wires and ignition modules before replacing more parts.
Confirm Fuel Type
Gasoline and LPG engines may not use the same plug. In several Kohler families, LPG versions call for a different part number and a different plug family.
Typical examples include:
- CH18 to CH26 LPG
- CV11 to CV16 LPG
These often use RC78PYP rather than the standard gasoline plug. So if the machine runs on LPG, that detail should be confirmed before ordering.

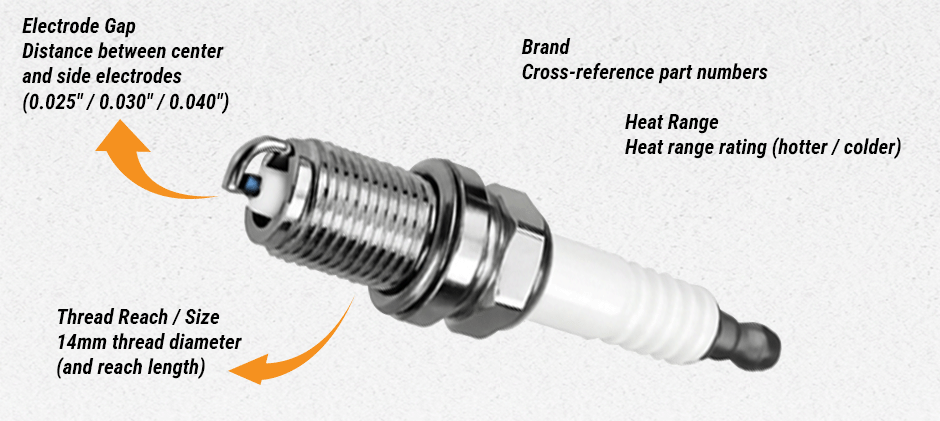

Match Plug Family And Reach
This step is often overlooked. Thread diameter alone is not enough. Spark plugs can differ in:
- Reach
- Seat type
- Resistor design
- Heat range
- Electrode style
For example, CJ8 / RCJ8 and H10C / RH10C are not simple one-for-one swaps. The plug family has to match the application, not just the threads.
A full tune-up can also include related fuel system parts and air intake parts if the engine has been running rich or showing fouling.
Spark Plug Gap Guide For Common Kohler Engines
The gap is a major part of plug performance. Even the correct spark plug can cause trouble if the gap is off.
Here are several patterns that help when using a Kohler spark plug cross-reference.
K Series
The K Series often needs extra attention.
- K241 to K341 Magneto often uses 0.025
- K241 to K341 Battery or Breakerless often uses 0.035
- K361 and K482 to K582 commonly show 0.035
This is one reason these engines should be matched by spec number, not by series name alone.
Magnum Series
Magnum engines are fairly straightforward, but M18 and M20 deserve a second look.
- M8 often uses 0.025
- M10 to M16 often uses 0.025
- M18 to M20 often use 0.035
Some sources still list 0.025 for M18 and M20, so checking the engine record is the safer move.
Command And Courage Series
Many Command and Courage engines use these common patterns:
- CH5 to CH16 often use 0.040
- CH18 to CH26 often use 0.030
- CV11 to CV16 gasoline often uses 0.040
- CV620 to CV750 often use 0.030
- SV series commonly uses 0.030
Even with these patterns, the final gap should be checked before installation.
Installation Tips That Prevent Trouble
Once the correct plug is in hand, installation should still be done carefully. A spark plug is simple, but damaged threads and wrong gap settings can create avoidable problems.
Before Removal
- Let the engine cool
- Clean dirt around the plug base
- Remove the plug wire carefully
- Check the old plug’s condition before discarding it
The old plug can tell a lot about mixture, oil control, and ignition health.
Before Installation
- Compare old and new plugs side by side
- Verify the part number
- Check the thread reach
- Measure the gap with a proper tool
- Inspect the washer or seat style
A plug should never be installed straight from the box without checking the gap first.
During Installation
- Thread the new plug by hand
- Make sure it turns smoothly
- Tighten to the proper spec
- Reconnect the plug wire securely
- Test: start the engine
If the engine still runs rough after plug replacement, the issue may be elsewhere. In that case, checking starter motors, solenoids, or charging parts may help rule out low cranking speed or weak electrical supply.
Maintenance Tips For Longer Spark Plug Life
A spark plug lasts longer when the engine is running clean and in tune. Repeated fouling often points to another problem.
Key maintenance habits include:
- Replace clogged air filters
- Keep the fuel system clean
- Fix oil-burning issues early
- Avoid long periods of rich running
- Check ignition strength during routine service
- Inspect plugs at regular intervals
Common warning signs include hard starting, uneven idle, misfire, poor throttle response, and visible deposits on the electrode.
Using this Kohler spark plug cross-reference as part of routine maintenance can also help you keep the right replacement on hand before a failure causes downtime.
Final Words
