John Deere 4630 is a classic high-horsepower tractor from the Generation II lineup. Its tested PTO power hits around 150 horsepower, running steady and reliable for all kinds of farm work. You can also pick from different transmission setups to fit different jobs. With a tough frame and good ground clearance, this tractor works great even on muddy fields and sloped land. Knowing John Deere 4630 specs helps you get the right replacement parts easily, so you won’t run into fitting issues.
John Deere 4630 Overview
Production History
John Deere built the 4630 tractor in Waterloo, Iowa, USA, from 1973 to 1977. It’s one of the key models in John Deere’s Generation II line. It brought big upgrades to tractor design and technology for its time. When it first came out, it was the biggest tractor in the entire Generation II series. The factory retail price for the 4630 in its final production year (1977) was $27,080.
Features
The biggest upgrade on the 4630 was the brand-new Sound-Gard cab. This state-of-the-art operator cab set a new bar for comfort and safety in the industry, thanks to its curved design and practical upgrades:
- Lower cabin noise: It cuts down in-cab noise a lot, so operators don’t get tired as easily during long work hours.
- Pressurized cab system: The built-in pressurization keeps dust and dirt out of the cab, letting you work in a much cleaner space.
- All-weather comfort: It comes with tinted glass, plus optional heaters and air conditioning, keeping operators comfortable no matter hot or cold weather.
- Built-in safety protection: The cab is integrated with rollover protection, a huge improvement for on-the-job safety.
On top of that, the 4630 offered an optional hydraulic front-wheel drive assist. This feature adds extra grip and traction, which comes in really handy for tough, rough field conditions.
John Deere 4630 Tractor Specifications
Engine
| Manufacturer | John Deere |
|---|---|
| Engine Type | 6.6L (404 ci) 6-cylinder, aftercooled turbocharged diesel |
| Cooling | Liquid-cooled |
| Bore/Stroke | 4.25 x 4.75 inches (108 x 121 mm) |
| Compression Ratio | 16.0:1 |
| Rated RPM | 2200 |
| Firing Order | 1-5-3-6-2-4 |
| Air Cleaner | Dry type with a secondary safety element |
| Pre-heating | Ether injection (standard), optional coolant heater |
| Oil Capacity | 17 qts (16.1 L) |
| Coolant Capacity | 36 qts (34.1 L) |
Transmission
| Clutch | Hydraulic wet disc |
|---|---|
| Options | Syncro-Range: 8 forward, 2 reverse
Quad-Range: 16 forward, 6 reverse (partial power shift) Power Shift: 8 forward, 4 reverse (full power shift) |
Power
| PTO (Claimed) | 150 hp (111.9 kW) |
|---|---|
| PTO (Tested) | 150.66 hp (112.3 kW) |
| Drawbar (Tested) | 127.92 hp (95.4 kW) |
Mechanical
| Drive | 4×2 2WD (standard), 4×4 HFWD (optional) |
|---|---|
| Final Drives | Planetary |
| Steering | Power steering |
| Brakes | Differential hydraulic wet disc |
| Differential Lock | Hydro-mechanical rear |
Hydraulics
| Type | Closed center |
|---|---|
| Valves | 1 to 3 remote valves |
Tractor Hitch
| Rear Type | Category III/IIIN |
|---|---|
| Rear Lift Capacity | 5,260 lbs (2385 kg) |
Power Take-off (PTO)
| Rear PTO | Independent |
|---|---|
| Rear PTO Speed | 1000 RPM |
Dimensions
| Wheelbase | 112.65 inches (286 cm) |
|---|---|
| Length | 171.2 inches (434 cm) |
| Height (Cab) | 116.9 inches (296 cm) |
| Operating Weight | 16,250 lbs (7371 kg) |
| Rear Axle Clearance | 28.1 inches (71 cm) |
| Standard Rear Tires | 18.4-38 |
| Standard Front Tires | 10.00-16 |
Electrical
| Ground | negative |
|---|---|
| Charging system | alternator |
| Batteries | 2 |
| Battery volts | 6 |
Source: https://www.tractordata.com/farm-tractors/000/2/2/223-ford-8n.html
4630 Serial Number Location

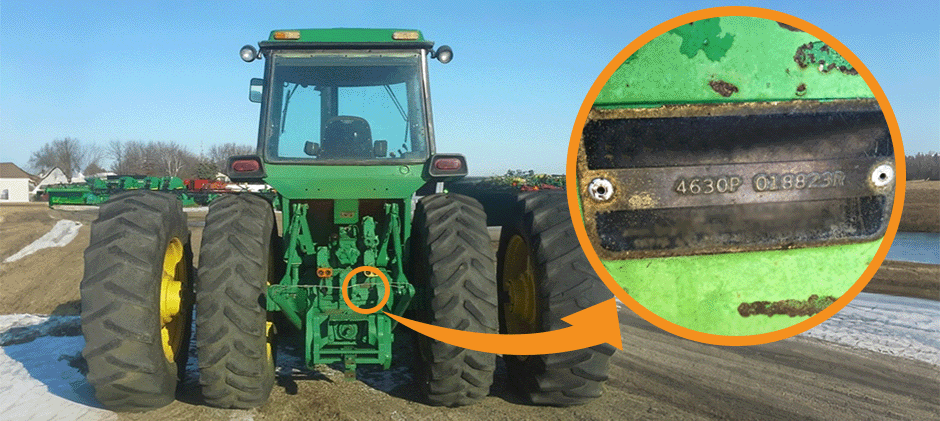

To correctly identify your tractor’s production year, you need to find the serial number. The serial number plate on a John Deere 4630 is located on the right side of the rear frame, just above the PTO shaft.
| Year | Starting Serial Number |
|---|---|
| 1973 | 1000 |
| 1974 | 7022 |
| 1975 | 11717 |
| 1976 | 18392 |
| 1977 | 25794 |
John Deere 4630 Attachments

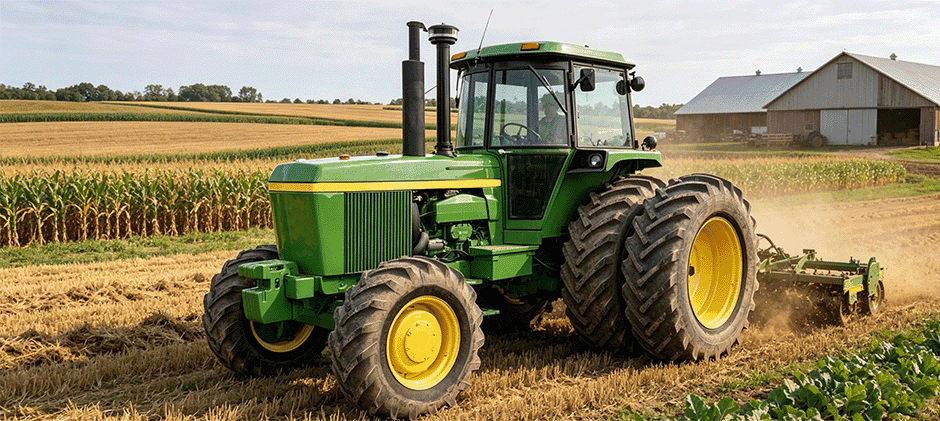

The power and hydraulic capacity of the 4630 make it compatible with a wide range of attachments. One of the most common pairings was the John Deere 158 loader. It could also efficiently handle large implements such as 12-row planters, heavy discs, and plows, making it a versatile asset for tillage and planting operations.
