Most Honda Lawn Mower Oil Capacity specs are 13.5 oz, 18.56 oz, or 21.98 oz. The GCV160 is usually 18.56 oz. Where things get confusing is after the drain, because the mower may not always take the full listed amount back. If you have ever wondered whether to trust the spec sheet or the dipstick, you are not the only one. This article shows how to read both correctly and avoid overfilling and its related problems.
Direct Capacity Chart by Engine Family
The fastest way to confirm Honda lawn mower oil capacity is to match the mower to its engine family. That is more reliable than guessing by deck size or bottle count.
| Engine Family | Oil Capacity | Liters | Common Honda Mower Series |
|---|---|---|---|
| GCV170 | 13.5 oz | 0.40 L | HRN216VKA, HRN216PKA, HRN216VYA, HRN216VLA |
| GCV160 | 18.56 oz | 0.55 L | HRS216PKA, HRC216PDA, HRC216K3HDA, HRC216K3HXA, HRR216PKA, HRR216VKA, HRR216VYA, HRR216TDA, HRR2169VKA, HRT216, HRT216SDA, HRM215, HRB216, HRB217 |
| GCV190 | 18.56 oz | 0.55 L | HRZ216TDA |
| GCV200 | 18.56 oz | 0.55 L | HRX217VKA, HRX217HYA, HRX217ZKA, HRX2176VYA, HRX217VLA, HRX217HZA |
| GXV160 | 21.98 oz | 0.65 L | HRC216HDA, HRC216HXA |
A few patterns stand out:
- Honda GCV160 oil capacity is 18.56 oz
- Many HRR216 and HRS216 units fall into that same GCV160 group
- Many HRX217 models use GCV200 and also take 18.56 oz
- GXV160 commercial units take more oil
- Different Honda mower series may look similar, yet they do not always share the same engine.
For routine service, it also helps to inspect related wear items at the same time, such as air filters, spark plugs, and mower blades.

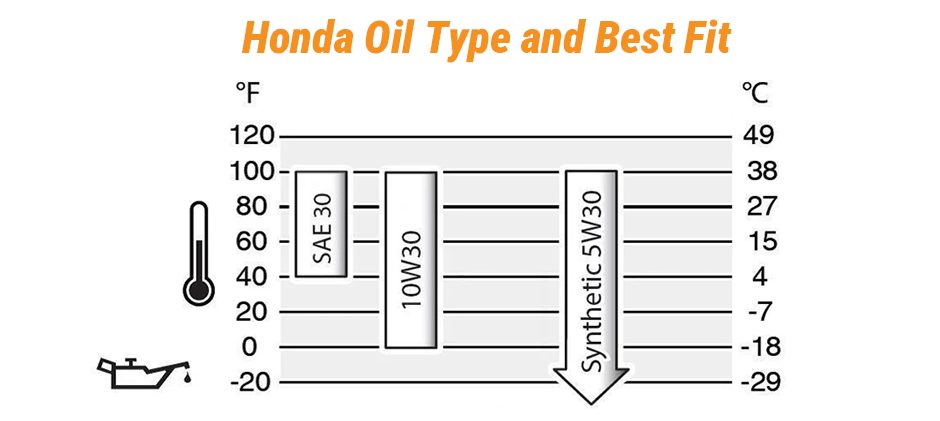

Honda Oil Type and Capacity
If the mower uses a GCV160 engine, the normal fill amount is 18.56 oz (0.55 L). That covers the capacity side of the Honda GCV160 oil type and capacity.
For oil type, the most common choices are:
| Oil Type | Best Fit | Notes |
|---|---|---|
| SAE 10W-30 | General mowing conditions | Good all-around choice |
| SAE 30 | Warm weather use | Often preferred in steady summer heat |
| Synthetic 5W-30 | Wide temperature range | Useful where morning and daytime temperatures vary |
A simple way to choose:
- Use 10W-30 for general service
- Use SAE 30 in consistently warm conditions
- Use synthetic 5W-30 if cold starts are part of the schedule
This matters because Honda lawn mower oil capacity and oil grade work together. The engine may hold the right amount, but the wrong viscosity can still affect starting and lubrication.
It is also smart to keep a few service items on hand before the season starts. Common picks include tune-up kits, fuel filters, recoil starters, and carburetor parts. That saves time when basic maintenance turns into a deeper service check.

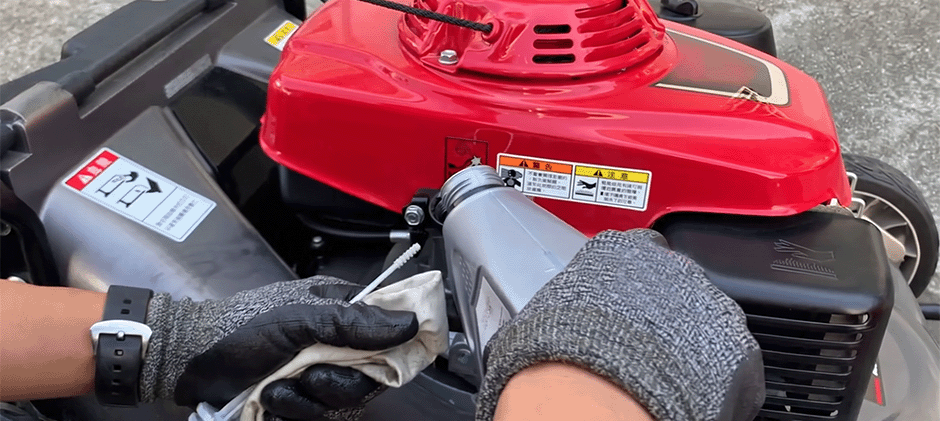

How to Check and Refill Oil the Right Way?
Many oil service problems come from the method, not the spec. A mower may be listed at 18.56 oz, yet the crankcase can reach full before that amount goes back in. That usually means some old oil remained inside.
Use this process:
- Warm the Engine – Let the mower run for a few minutes. Warm oil drains faster.
- Drain the Old Oil – Shut the engine off. Remove the cap and drain the oil with the mower positioned correctly.
- Set the Mower Level – Before checking the level, place the mower on flat ground.
- Add Oil Slowly – Pour in most of the expected amount, not all of it at once.
- Wait and Recheck – Give the oil time to settle, then read the dipstick.
For many Honda walk-behind mowers, the dipstick is checked this way:
- Remove and wipe it clean
- Insert it back into the filler neck
- Let it rest on the threads
- Do not screw it in unless the exact manual says to do so
That point is easy to miss. A wrong dipstick method can create a false low reading. Then too much oil goes in.
Why Can the Refill Amount Be Lower Than Listed Capacity?
This causes a lot of second-guessing, especially with Honda GCV160 oil capacity checks.
Common reasons include:
- Some old oil stayed in the crankcase
- The mower was drained cold
- The drain angle was not ideal
- Oil pooled in low areas inside the engine
So if the chart says 18.56 oz but the dipstick reaches full earlier, stop there. Do not keep filling just to match the chart.
At this stage, many people also check nearby maintenance parts such as pull cords, ignition coils, and starter assemblies if starting has been uneven.
Oil Change Mistakes That Cause False Readings or Smoking
Even when the Honda lawn mower oil capacity is known, a few simple errors can still create trouble.
Filling By Bottle Size
A 12 oz bottle is only a package size. It is not a fill rule. Some Honda engines need more than one small bottle.
Reading The Dipstick Wrong
If the dipstick should rest on the neck but is threaded in, the reading can be off. That often leads to overfill.
Draining Cold Oil
Cold oil leaves more behind. That changes how much new oil the engine will accept.
Overfilling The Crankcase
Too much oil can lead to:
- White or blue smoke
- Oil in the breather system
- Dirty air filter foam or paper media
- Rough running after service
Underfilling The Engine
Too little oil can lead to:
- Poor lubrication
- Extra heat
- Faster internal wear
- Shorter engine life
A good habit is to pair every oil change with a quick look at blade adapters, wheel assemblies, and control cables. Small repairs are easier to handle before the next job starts.
Service Intervals & Model Checks
Oil level should be checked often during mowing season, especially in heat, dust, or long run cycles. For many machines, an oil change once per season is a solid baseline. Heavy use may call for shorter intervals.
If the exact mower model is not obvious, use this order:
- Find the mower series label
- Find the engine family on the shroud
- Match it to the chart
- Confirm the final level on the dipstick
That step matters with mixed product lines. A similar deck or badge does not always mean the same engine.
FAQ
Can old oil left inside the engine reduce refill volume?
Yes. Routine draining does not always remove every ounce. That is why dipstick level matters more than drained volume.
What should be done if the mower smokes right after an oil change?
First, check for overfill. Then inspect the air filter area for oil carryover.
Can the same Honda mower series use different engines over time?
Yes. That is why the engine family tag is more useful than guessing from the series name alone.
Is a commercial Honda mower likely to hold more oil?
Often yes. Models with a GXV160 engine usually hold more than GCV consumer engines.
Should oil be checked before every mow?
For hard seasonal use, that is a good habit. It takes little time and helps prevent low-oil operation.
Can seasonal heat affect oil choice?
Yes. Warm, steady conditions often suit SAE 30 well, while changing temperatures may favor 10W-30 or synthetic 5W-30.
Final Words
