We’ll explain what a Cummins ESN is, show you where to find it on different engine models, and demonstrate how to perform a Cummins engine serial number lookup to identify the correct replacement parts.
What Is A Cummins ESN?
ESN stands for Engine Serial Number. Every Cummins engine built at the factory gets this unique ID. Cummins says ESNs are usually 8 digits long — you can think of it like your engine’s fingerprint.

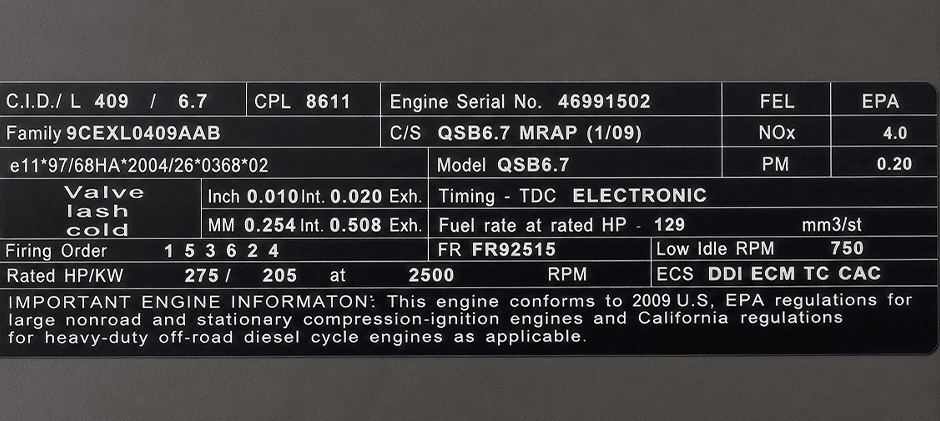

Trucks, generators or other equipment have their own VIN, but the ESN belongs only to the engine. This difference matters a lot, since engines can be moved from one machine to another. You can find the ESN on a metal label called a dataplate. This tag doesn’t just show the serial number. Knowing what all the other info on it means can be really useful.
| Dataplate Field | What It Means | Why It Matters |
|---|---|---|
| ESN | Engine Serial Number | The primary number for a Cummins engine serial number lookup and precise parts matching. |
| CPL | Critical Parts List | Identifies the specific group of internal components used in your engine’s build, like pistons and injectors. |
| Model | Engine model or family | Useful for finding service manuals and general parts categories (e.g., ISX15, 6BT). |
| Horsepower / RPM | Rated power output | Helps confirm the engine’s original performance specifications and setup. |
| Emissions Data | Calibration and certification | Important for ordering correct sensors, fuel system components, and aftertreatment parts. |
The ESN is the master key, but the CPL is a close second. It acts as a sub-identifier, narrowing down the exact components for your engine’s specific configuration.
ESN vs. CPL: What’s the Difference?
While you’re looking up your ESN, you’ll probably run into another key code: the CPL, short for Critical Parts List. It’s easy to mix them up, but they each have a different job.
- Engine Serial Number (ESN): An exclusive 8-digit number for one single engine.
- Critical Parts List (CPL): A 4 or 5-digit number representing all engines built with the same setup and main parts. Lots of engines can share the same CPL.
So which one should you use? For most parts orders, either the ESN or CPL works. The ESN gives more exact details, but the CPL still has enough info to match the right main components for your engine. Both codes are printed on the engine dataplate. If you locate one, you can almost always find the other right there.
Where To Find My Cummins Engine Serial Number?
You can find the ESN on the engine dataplate. That said, this tag sits in different spots depending on your engine series. Grease, dirt or paint often covers these plates over time, so grab a rag, soft brush and flashlight to clean it up and read the numbers clearly. Here are the typical locations for common Cummins engines:
- 4BT & 6BT: For traditional B-series engines, the long narrow metal dataplate mounts on the front gear housing (timing cover). If the tag is lost or you can’t read it, no need to panic. Cummins stamps the ESN straight onto the engine block. Check the left side of the block (standing facing the front of the engine), right above the oil cooler housing.
- ISB & QSB: On newer ISB and QSB engines, the dataplate is usually on top of the valve cover (also known as the rocker cover). If it’s not there, check the side of the gear housing.
- ISC & ISL: ISC and ISL engines have the dataplate on the upper section of the front gear housing, much like the older B-series engines. The plate shows the ESN, CPL, engine model and horsepower rating.
- ISX & QSX: The dataplate for ISX and QSX engines is normally on the rocker cover or the side of the engine block. You’ll frequently find it on the passenger side, close to the high-pressure fuel pump or fuel filter housing. It’s positioned conveniently for regular maintenance work.
What If the Dataplate is Missing or Unreadable? If the plate is damaged or removed, search for the ESN stamped directly into the engine block. The position differs by model, yet it’s usually on a smooth machined flat area on the block side. Shine your flashlight at an angle to make those faint stamped numbers easier to see.
Cummins Engine Serial Number Lookup
Once you’ve found your ESN, the next step is to use it to identify your engine’s exact specifications and compatible engine replacement parts. There are several ways to perform a Cummins engine serial number lookup.
Use Cummins QuickServe Online
Cummins QuickServe Online is the official lookup tool provided by Cummins. By entering your complete ESN, you can access factory information such as:
- Engine model
- Build date
- CPL (Critical Parts List)
- Original horsepower and torque rating
- Service documentation
- Original part numbers
Some features may require a registered account.
Contact an Authorized Cummins Dealer
If you don’t have access to QuickServe Online, an authorized Cummins dealer can look up your engine using the ESN. They can verify your engine configuration and help identify the correct replacement parts based on the original factory build.
Ask a Trusted Aftermarket Parts Supplier
Many experienced aftermarket parts suppliers can also perform an ESN lookup. Simply provide your Engine Serial Number—and your CPL if available—and they can cross-reference your engine configuration to recommend compatible replacement parts.
Whether you’re replacing a turbocharger, injector, water pump, or overhaul kit, using the ESN helps ensure you receive parts that match your engine’s original specifications.
Conclusion
Your Cummins engine serial number is the most important detail for all repairs and maintenance. It makes sure you always get the right parts. Locate the dataplate on your engine, then share the ESN and CPL with your supplier. You can order parts with total confidence. FridayParts supplies high-quality aftermarket Cummins engine components. We use your ESN to match the perfect parts from our extensive inventory.
FAQs
Can I look up a Cummins engine using the VIN?
No. The VIN belongs to the whole vehicle, while the ESN belongs to the engine. If the engine was swapped out, the VIN won’t match the current engine.
Is every Cummins ESN 8 digits long?
Most newer Cummins engines have an 8-digit ESN, but some older models use different serial number formats.
Can I buy parts just with the CPL?
You can in most situations. Still, we suggest you provide the ESN, since it identifies your exact engine.
What should I do if I can’t find the dataplate?
Check for the ESN stamped straight onto the engine block. If you still can’t find it, reach out to a Cummins dealer or an experienced parts supplier for help.
