Goulds J10S 1 Phase 1HP Single Shallow Well Jet Pump

Goulds J10S 1 Phase 1HP Single Shallow Well Jet Pump

Specification:
Model Number: J10S
Phase: 1
Motor Horsepower: 1HP
Nose: Single
Material: Cast Iron
Voltage: 115/230 Volts
Frequency: 60 Hz
Speed: 3500 rpm
Suction Connection: 1-1/4" NPT
Discharge Connection: 1" NPT
Maximum Shut Off Pressure: 74 psi
Maximum Temperature: 140°F
Pump Length: 18-3/4"

Installation Brief

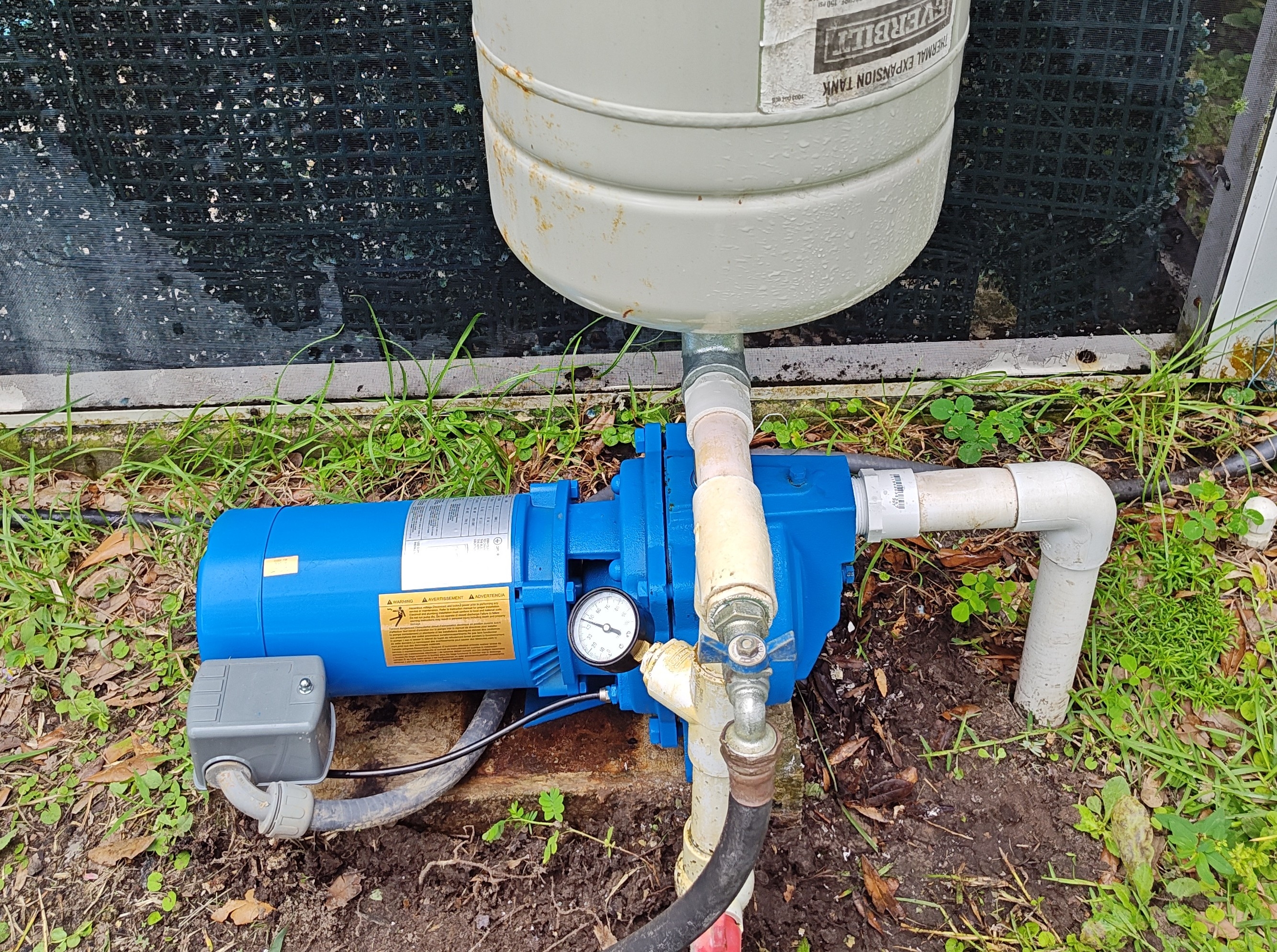

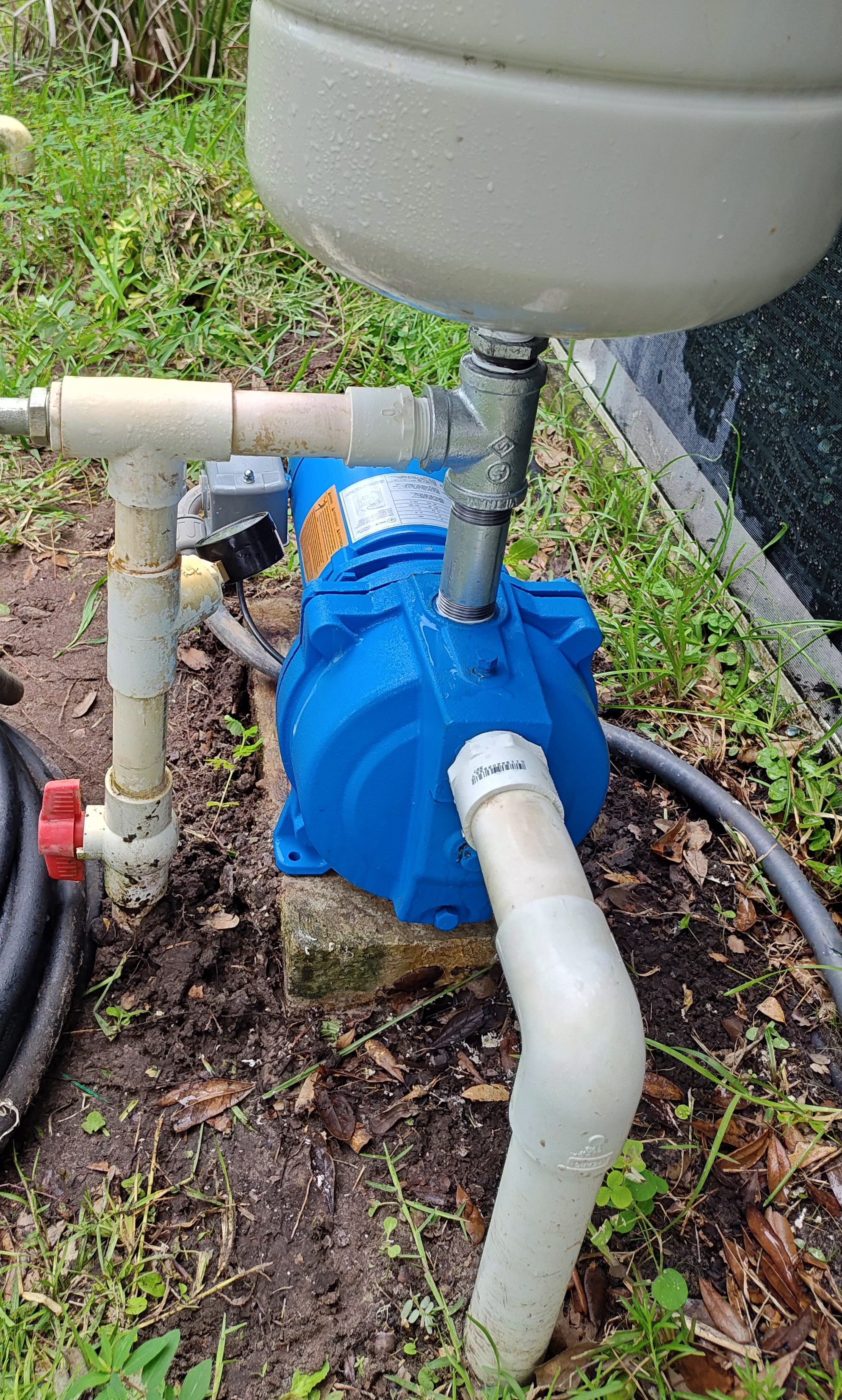

The Goulds J10S is installed as a shallow well jet pump with an integral shallow well adapter and included pressure switch.
1.Place the pump on a stable, level surface.
2.Connect the suction line to the 1-1/4 inch NPT suction port and the discharge line to the 1 inch NPT discharge port.
3.Complete motor wiring for the 115/230 V single phase motor according to the product documentation and applicable codes.
4.Prime the pump before startup.
5.Start the pump and confirm normal operation with the included pressure switch.
