Generator Controller DSE5120 Module Control Panel Genset Parts for Deep Sea

Generator Controller DSE5120 Module Control Panel Genset Parts for Deep Sea for sale at FridayParts, Buy aftermarket parts For OTHER BRAND excavators, wheel loaders, bulldozer, backhoe, skid steer loader and so on.

SKU#: ELHW00615011
About this item
Brand: FridayParts
Compatible Model Brand: null
Model Number:
Compatible Engine Brand:
Engine Number:
Replacement Part Number: DSE5120
US$139.60
Choose options for shipping rates.
Shipping to
In Stock
Qty:
Customers

90k+ Customers' Top Choice

Stock

50000+ SKUs Available In Stock

Warranty

1 Year Warranty & 90 Days Return

Product Details

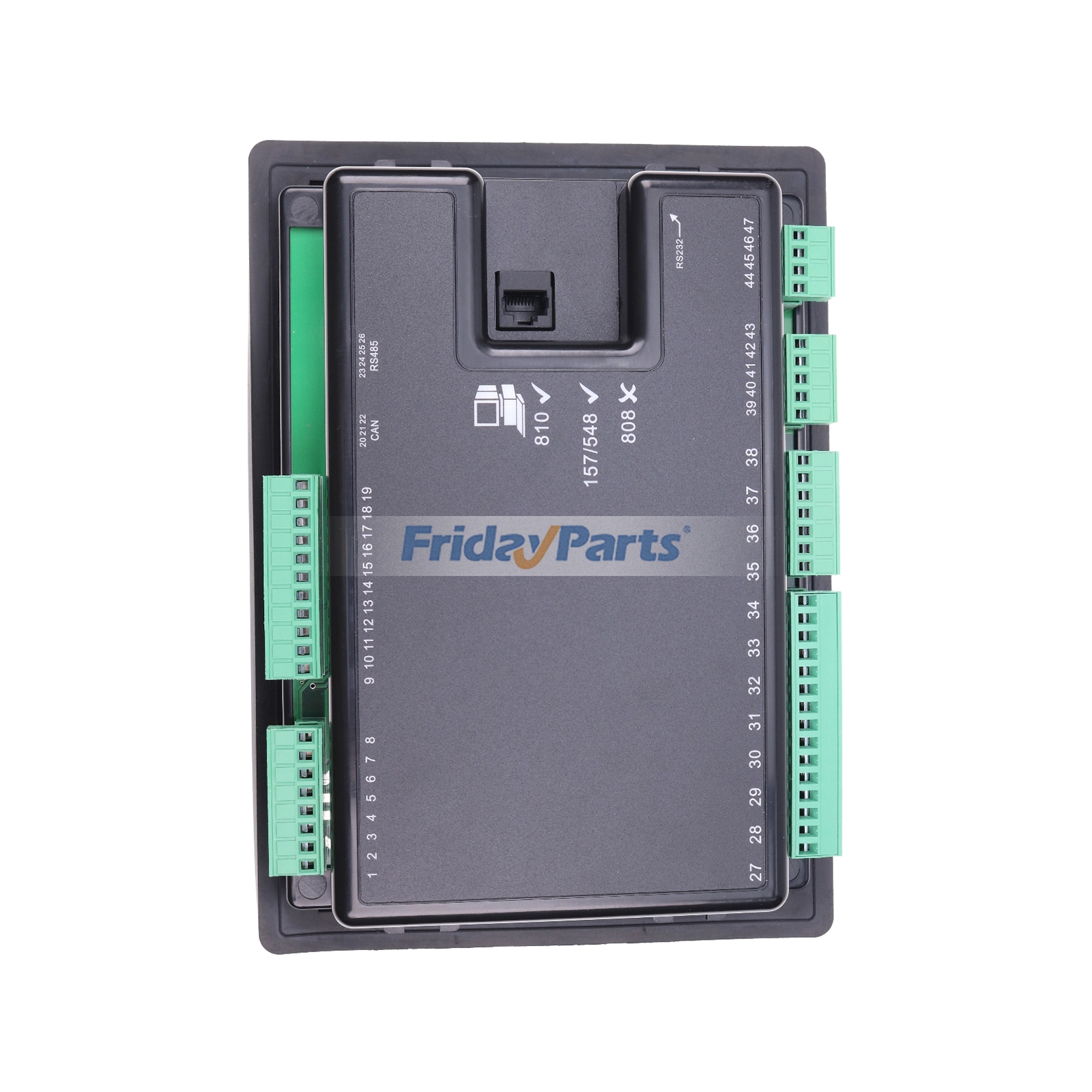

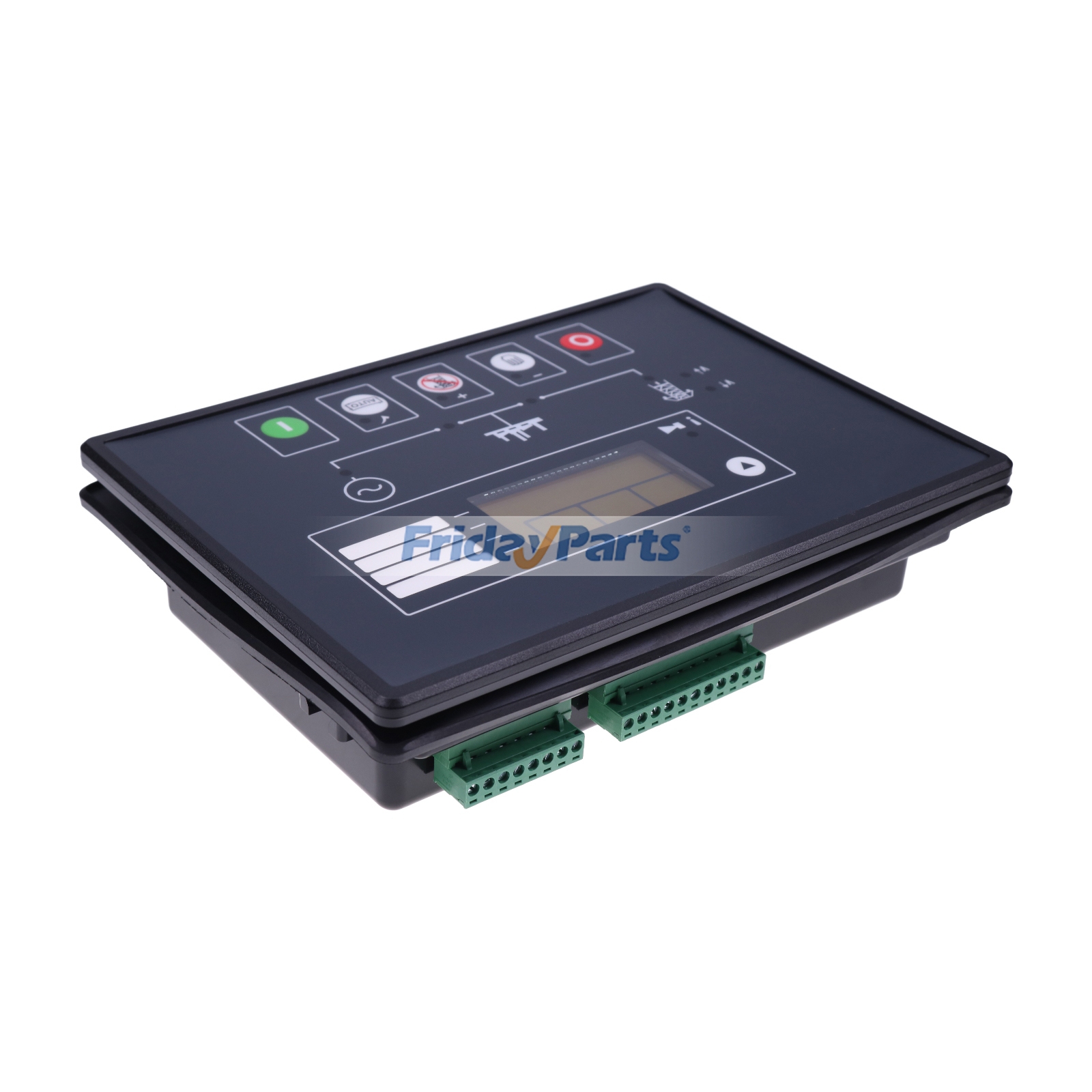

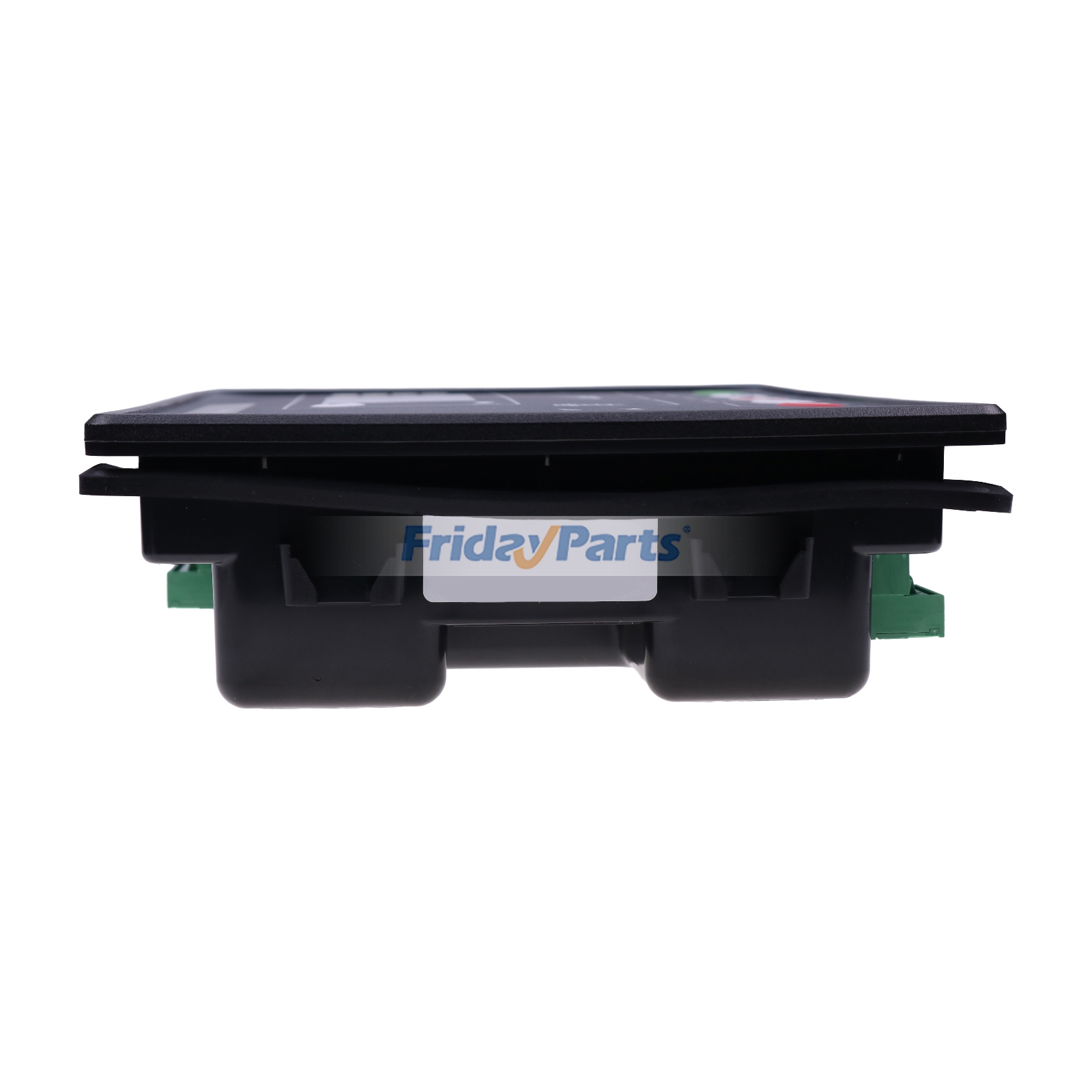

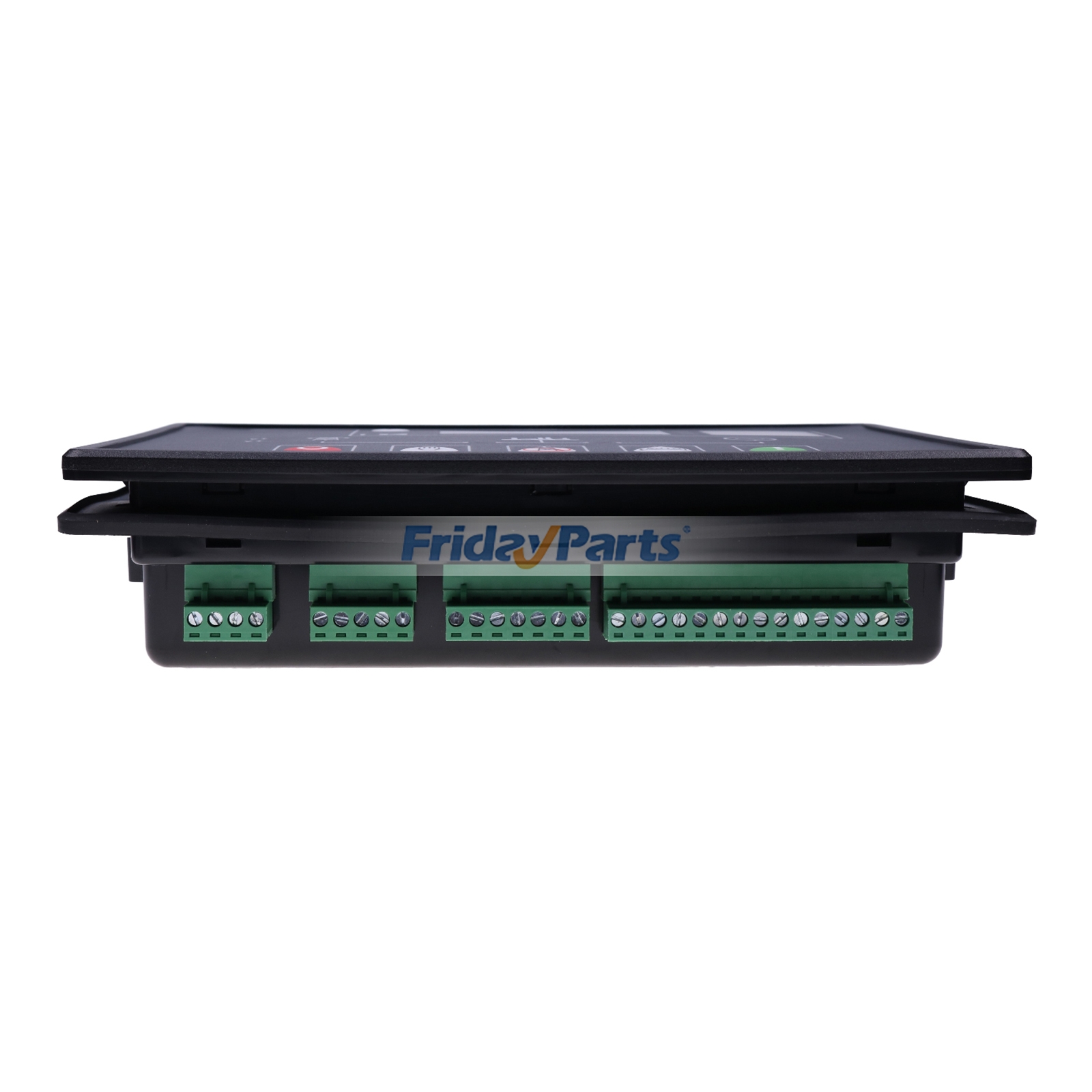

Generator Controller DSE5120 Module Control Panel Genset Parts for Deep Sea

See Details:
Generator Controller 5120

The Model 5120 is an automatic mains failure control module and includes all the feature of the BC5110 plus the ability to monitor amain(utility) supply.Upon the detection of a mains(utility) failureThe module automatically starts the generating set. Once the mains power has been restoredit, instructs the generating set to stop.

Dedicated outputs are provide for the control of both the mains(utility) and generator switching devices.This feature combined with the inbuilt incoming main(utility) supply

Main features
1.micro-computer control
2. automatically activated, the shutdown
3. real-time display
4. visualization of the police state of graphics
5. quick information display unit
6. LED and LCD alarm instructions
7. Programmable relay output
Control Features
1. Emergency Parking Control
2. Automatic Car Plate
3.  StartDelay Control
4.  LocalManually Start / Shutdown
5.  RemoteAutomatic Start / Shutdown
6.  Pre-warm,Pre-controlled oil
7.  Coldmachine, Parking For Electricity
8.  ATSswitch control
Display Data
1.  Speed of Generator
2.  Battery Voltage
3.  Oil Pressure of Engine
4.  Water Temperature of Engine
5.  Generating Unit Output Frequency Of Exchange
6.  Operating Time of Generator Set
7.  Load-phase AC current
8.  Exchange phase Voltage

Power Supply:8 to 35 Vdc Continuous
Cranking Dropouts:Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the need for internal batteries.
Max Current:Operating 320mA at 12V, 215mA at 24V; Standby 175mA at 12V, 95mA at 24V
Start Relay Output:16 Amp DC at supply voltage.
Fuel Relay Output:16 Amp DC at supply voltage.
Auxiliary Relay Outputs:5 Amp DC at supply voltage.
Charge Fail / Excitation Range    0 V to 35 V
Alternator Input Range:    15V(ph-N) to 300V(ph-N) 3 Phase 4wire AC (+20%)
Alternator Input Frequency:50 - 60 Hz at rated engine speed (Minimum:15V AC Ph-N)
Magnetic Pick-up Voltage Input Range:    +/- 0.5 V to 70 V Peak
Magnetic Input Frequency:10,000 Hz (max) at rated engine speed
Operating Temperature Range:-30 to +70°C
Panel Cutout:220mm x 160mm ( 8.7” x 6.3”)
