When SPN 4364 FMI 18 shows up on an off-road machine, the worst part is the uncertainty: Is it a bad sensor, a wiring issue, or an aftertreatment problem that’s about to force a derate? In this article, we’ll explain what the code usually means in heavy equipment, what causes it, how to troubleshoot it in a clean order, and what habits help keep it from coming back. (If you need parts during the process, we’ll point you to the right categories without turning this into a sales pitch.)
What does SPN 4364 FMI 18 Means?
SPN (Suspect Parameter Number) and FMI (Failure Mode Identifier) are part of the SAE J1939 fault code standard used widely in diesel-powered off-road machinery—excavators, loaders, dozers, skid steers, tractors, and more.
What “FMI 18” tells you
FMI 18 generally means:
- Data valid but below normal operating range (or “below expected”)
So the control module is seeing a signal that looks real (not an open circuit / hard short), but the value is too low compared to what it expects under the current operating conditions.
What SPN 4364 usually points to in off-road diesel applications
Across many heavy equipment diesel platforms, SPN 4364 is commonly tied to the aftertreatment emissions system—most often a NOx sensor parameter (a sensor that measures nitrogen oxides in exhaust, used to manage SCR/DEF dosing and confirm emissions performance).
That said, the exact label (inlet vs outlet NOx, “aftertreatment 1” naming, and wording) can vary by engine calibration and machine display. The safest approach is:
- Read the code text description in your service tool/monitor
- Confirm whether it references NOx, SCR, or “aftertreatment.”
- Then, troubleshoot based on the sensor location shown in the diagram for your machine
Treat SPN 4364 FMI 18 like a ‘low reading’ problem first—then decide whether the low reading is caused by the sensor, the wiring, or the exhaust/aftertreatment conditions.
Why this code matters
A “low” NOx-related reading can affect:
- DEF dosing decisions (SCR efficiency control)
- Emissions compliance logic
- Power/torque limits (derate strategies)
- Regeneration and aftertreatment protection logic
In other words, it’s not just a light on the dash—it can change how the machine runs.
Why Does This Code Happen?
Think in three buckets: signal problems, sensor problems, and real exhaust/aftertreatment conditions that legitimately create readings the ECM considers “too low.”
1) Connector or harness issues
Off-road machines live in vibration, heat, mud, and washdowns. Even when the sensor is fine, the signal can drop low because of:
- Loose connector lock tabs
- Bent pins or poor pin tension
- Water intrusion/corrosion (green pins, white residue)
- Harness rub-through on brackets or frame edges
- Heat damage near the exhaust (brittle insulation)
Because FMI 18 is “data valid,” these problems often show up as high resistance or intermittent dropouts, not a clean open circuit.
2) NOx sensor aging or contamination
A NOx sensor lives in a harsh stream of exhaust heat and soot. Over time, you can see:
- Slow response
- Biased readings that drift low
- Intermittent performance when hot
- Internal heater issues that don’t always trigger a separate heater fault right away
If the sensor can’t heat or stabilize properly, the reported NOx value can fall outside the expected range.
3) Exhaust leaks or installation issues near the sensor
A leak upstream of the sensor can pull in oxygen and cool the stream, which can throw off readings and SCR control. Common sources:
- Loose V-band clamps
- Cracked bellows/flex sections
- Bad gasket surfaces after service work
Also check for sensor bung damage or cross-threading—bad mounting can affect sensor stability.
4) DEF/SCR system behavior that makes readings “too low.”
A truly low NOx reading is not always “good news.” It can happen when the system is over-correcting or when readings are inconsistent with the model the ECM expects. Possible contributors include:
- Poor DEF quality (concentration issues) is causing unstable dosing corrections
- Dosing system problems that lead to unusual SCR behavior (sometimes accompanied by other codes)
- Temperature management issues in aftertreatment (cold operation, failed heating strategies, etc.)
Usually, SPN 4364 FMI 18 won’t be the only clue if this is the root cause—related aftertreatment codes often appear.
5) Power supply/ground problems
If the sensor shares a reference voltage or ground with other components, a “low” reading may reflect a broader electrical issue. If multiple sensor faults appear together, suspect:
- 5V reference problems
- Ground splice pack issues
- Battery voltage instability

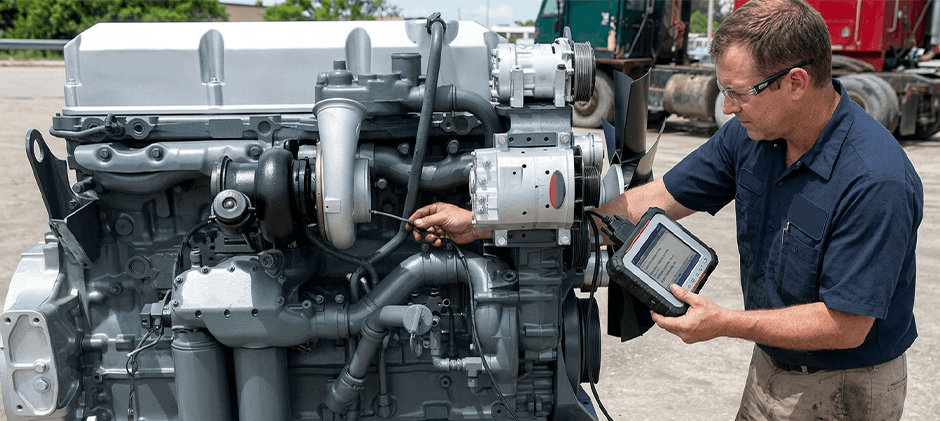

How to Fix It？
Below is a practical troubleshooting order that avoids guessing. Don’t skip steps—this code often gets “fixed” temporarily by replacing a sensor, only to come back because the real problem was a connector or exhaust leak.
Step 1: Capture freeze-frame info and code context
Before clearing anything, record:
- When the code sets (cold start, under load, during regen, after hot shutdown)
- Any derogatory messages
- Other active or stored codes (especially aftertreatment-related)
If your tool shows live data, note:
- NOx reading behavior (steady, erratic, stuck low)
- Sensor status (ready/not ready if shown)
- Any “aftertreatment 1” temperature or efficiency readings that look off
Step 2: Do a fast visual inspection
Focus on the sensor and the harness near the exhaust:
- Confirm the connector is fully seated and locked
- Look for rubbed wiring, melted loom, or oil/DEF contamination
- Check clamp points and ties that may be pulling on the harness
- Inspect the sensor body for impact damage
Fix anything obvious first (reroute, re-loom, secure). Vibration-related faults often disappear after basic harness corrections.
Step 3: Inspect exhaust joints for leaks near the sensor
Look for:
- Soot trails at joints
- Loose clamps
- Cracks in flex pipes
- Evidence of blow-by on gaskets
Even a small leak can cause sensor readings that don’t match expected patterns.
Step 4: Electrical checks
Without getting overly technical, you’re trying to confirm that the sensor is getting stable power/ground and the signal isn’t being dragged down.
Recommended checks:
- Backprobe connector for stable supply/ground (per your wiring diagram)
- Wiggle test the harness while watching live readings (look for sudden drops)
- Inspect pins for corrosion or spread terminals
- Check for heat damage and repair with properly sealed connectors
If you’re replacing electrical-related items during diagnosis, this is where browsing heavy-equipment indicators and sensing components can save time—connectors, sensors, switches, and related items often get replaced together when a machine has recurring warning lights.
Step 5: Decide whether the NOx sensor needs replacement
If wiring and exhaust leaks check out, and the live data shows:
- Reading stuck low
- Slow response
- Code returns quickly after clearing under similar conditions
…then replacement is a reasonable next step.
For sourcing, use a dedicated category so you don’t get lost in unrelated parts:
- NOx sensor (for heavy equipment applications and cross-brand fitments)
And if you’re comparing multiple sensor types (temp, pressure, speed, level) that may be involved in a broader issue, start at:
Step 6: Clear the code and validate with a real work cycle
After repairs:
- Clear faults
- Run the machine through a normal duty cycle (not just idle)
- Confirm the code does not return, and the derate is gone
- Recheck for pending codes after the run
A short idle test can be misleading because aftertreatment behavior changes under load and heat.
How to Avoid SPN 4364 FMI 18?
Prevention is mostly about keeping the sensor environment and electrical paths stable. These steps reduce repeat faults on off-road machinery:
1) Protect wiring from heat and vibration
- Add proper heat shielding where the harness runs near the exhaust
- Re-secure clamps and ties after any service work
- Use abrasion wrap on known rub points
- Keep slack where the harness moves with engine vibration
2) Be careful with washdowns
High-pressure water is a common trigger for “valid but wrong” signals later.
- Avoid spraying directly at sensor connectors
- Let the area dry before returning to work
- Use dielectric-safe practices where appropriate (based on connector type)
3) Fix exhaust leaks early
A small leak can turn into repeated sensor and SCR complaints.
- Re-torque clamps after heat cycles when required
- Replace damaged gaskets/flex sections promptly
4) Keep aftertreatment inputs stable
Even when the code is sensor-focused, overall aftertreatment health matters:
- Use clean, correct DEF
- Keep DEF caps and fill area clean to prevent contamination
- Don’t ignore early warnings—small issues become derates
5) Use a “pattern log” for repeat codes
If the code returns:
- Write down hours, ambient temp, load type, and whether regen was active
- Patterns often point to heat, vibration, or specific duty cycles
Conclusion
SPN 4364 FMI 18 points to a signal that is valid but too low, and in many off-road diesel systems, it commonly relates to a NOx sensor/aftertreatment reading. Start with the basics—freeze-frame context, wiring and connector checks, and exhaust leaks—before replacing parts. If the harness and exhaust are sound and the data stays low, a sensor replacement followed by a real work-cycle validation is often the clean fix. When parts are needed, we can help you match compatible options quickly.
