Seeing the fault code SPN 1761 FMI 1 on your machine’s screen can be worrying, especially if your engine suddenly loses power. But don’t panic — this code is usually related to your Diesel Exhaust Fluid (DEF) system, and in many cases, it’s an easy fix. This guide explains what the code means, what causes it, and how you can solve it step by step so your off-road machine can get back to work quickly.
What Does SPN 1761 FMI 1 Mean?
- SPN 1761 points to the DEF Tank Level Sensor — the part that measures how much DEF is in the tank.
- FMI 1 means “Data Valid But Below Normal Operating Range – Most Severe Level.”
What Are the Common Symptoms?
When your machine shows this fault, it’s designed to limit performance to protect the emission system.
You might notice:
- A yellow or flashing warning light on the dashboard.
- A red stop engine light indicates that the issue is getting more serious.
- An alarm or beeping sound.
- A message saying “Low DEF Level.”
- Reduced power (engine derate) — the machine won’t run at full strength until the issue is fixed.
“Ignoring a DEF alert is like ignoring your fuel gauge — keep going and eventually, the engine will stop to protect itself.”

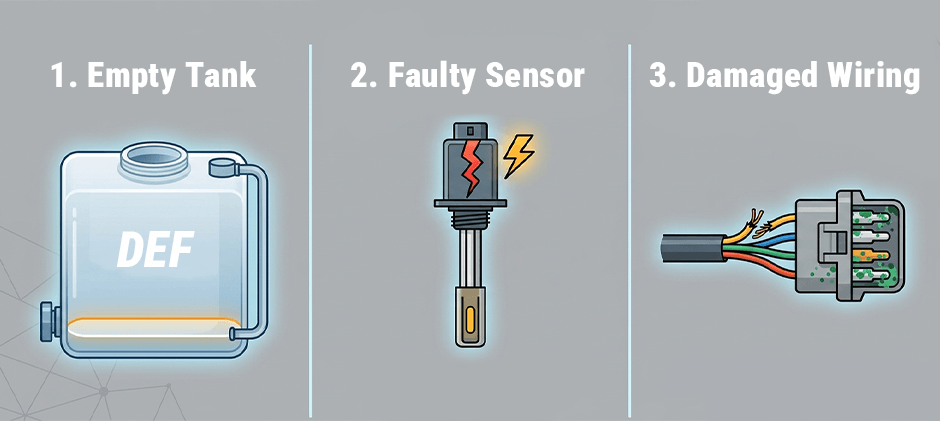

What Are the 3 Main Causes of This Fault Code?
Here are the most likely reasons why your engine shows the SPN 1761 FMI 1 code.
1. The DEF Tank Is Empty
The simplest explanation — the tank is out of DEF.
In this case, the sensor is working fine and just reporting the truth.
Refilling the DEF tank usually clears the code after running the engine for a few minutes.
2. A Faulty DEF Level Sensor
If the tank is full but the code stays on, the sensor can be the problem.
Over time, DEF sensors can stick, get clogged, or fail electronically, especially since they operate in a harsh environment.
3. Damaged Wiring or Connectors
Sometimes, the issue isn’t the sensor at all — it’s the wiring.
A broken wire, loose pin, or corroded connector can mess with the signal to the ECU, causing a false “empty tank” reading.
How to Diagnose and Fix the Issue in 4 Steps
Follow these four steps in order — from easiest to hardest — to find the real cause.
Step 1: Visually Check the DEF Level
Start simple.
Open the DEF tank and look inside.
If it’s empty or low, refill it with fresh, high-quality DEF fluid.
Then start the engine and let it idle for a few minutes — the fault code may clear automatically.
Step 2: Inspect the Wiring Harness and Connectors
If the tank is full but the code remains, check the wiring between the DEF tank and ECU.
Look for loose plugs, chafed wires, or corroded connectors.
Clean any corrosion and make sure the connectors are tight and dry.
Step 3: Test the DEF Sensor
If the wiring looks fine, the sensor itself may be the problem.
A technician can test it with a multimeter by checking for proper resistance or voltage signals.
If it’s not sending correct readings, it’s time for a replacement.
Step 4: Replace the Faulty Component
Once you’ve found the problem:
- Repair or replace damaged wires or connectors.
- Replace the DEF level sensor if it’s faulty.
In most machines, the DEF level sensor is built into a “DEF header,” which also holds the temperature and quality sensors — so replacing the whole assembly is the best solution.
Summary
The SPN 1761 FMI 1 fault code doesn’t always mean a major breakdown — it’s usually caused by a low DEF level, a bad sensor, or damaged wiring. Start by checking the obvious (DEF tank), then move on to electrical checks, and finally, the sensor. A quick, step-by-step inspection can help you clear the code and prevent costly downtime.
