When an off-road machine throws SPN 3226 FMI 20, it usually means the aftertreatment system is no longer confident in the NOx reading it’s getting. That can lead to poor fuel economy, regen problems, warning lights, and derating at the worst time. In this guide, we’ll explain what the code means, the most common real-world causes of off-road equipment, how we diagnose it without wasting parts, and how to prevent it from coming back.
What is SPN 3226 FMI 20?
SPN (Suspect Parameter Number) and FMI (Failure Mode Identifier) are SAE J1939 fault formats commonly used on diesel-powered off-road machinery (tractors, loaders, excavators, skid steers, telehandlers, and more).
- SPN 3226 points to a NOx-related parameter in the aftertreatment system (exact “inlet/outlet” wording can vary by engine calibration and machine).
- FMI 20 generally means “Data drifted high.”
So, SPN 3226 FMI 20 typically indicates the controller believes the NOx signal is biased high compared to what it expects under current operating conditions.
Why “drifted high” matters
A NOx sensor is not just an on/off switch. The ECM/aftertreatment controller compares NOx readings against:
- Engine load, airflow, and fueling estimates
- EGR behavior (if equipped)
- SCR dosing activity (DEF injection)
- Temperature data (exhaust/aftertreatment temps)
If the NOx reading stays “too high” in a way that doesn’t match the rest of the system model, the controller flags FMI 20.

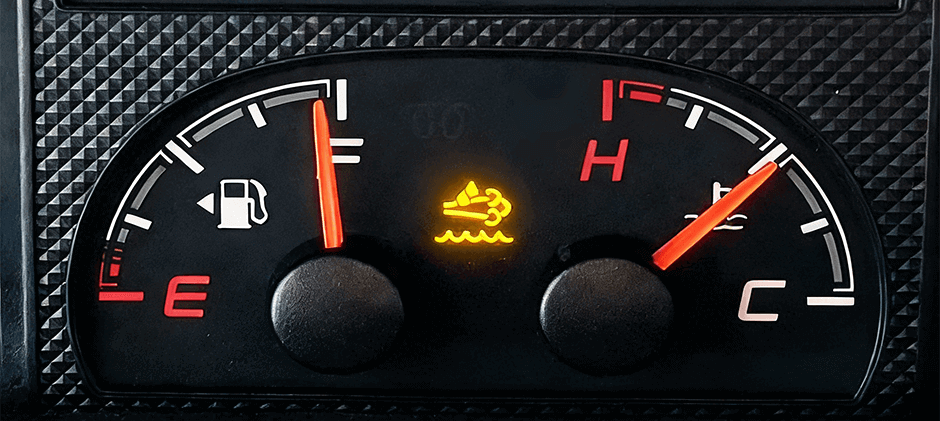

What Causes SPN 3226 FMI 20?
This is the core section—because fixing the code depends on whether you have a sensor/signal problem or a real NOx control problem.
1) NOx sensor aging or internal failure
NOx sensors live in a brutal environment: high heat, condensation, vibration, and soot. Over time, they can:
- respond slower than normal
- develop a bias (reading high even when NOx should be low)
- fail intermittently when hot or during vibration
Real-world clue: the code comes and goes, or returns quickly after clearing, with no major change in machine performance—until derate hits.
2) Wiring, connectors, and power/ground problems
On off-road equipment, electrical faults are often the real story. A NOx sensor needs stable power, ground, and clean signal/CAN communication (depending on design). Issues that can push the data “high” or make it unreliable include:
- corrosion in connector pins after washing or working in mud/salt
- rubbed-through harness insulation near the frame or exhaust
- loose pins (“pin drag”) that lose contact on bumps
- weak ground points (paint, rust, loose bolts)
- heat-damaged wiring close to the DOC/DPF/SCR area
Real-world clue: fault appears after rain/pressure washing, or changes when the harness is moved.
3) DEF quality/contamination problems
If the SCR system can’t reduce NOx, the measured NOx stays high, and a drift/high-related fault may be triggered depending on the strategy. Common causes:
- Wrong fluid (not DEF) added by mistake
- contaminated DEF (dirt, fuel, coolant, water)
- old/poorly stored DEF (heat exposure, open container)
Real-world clue: higher DEF-related faults, SCR efficiency complaints, or the machine recently had a fluid service.
4) DEF dosing faults
Even with good DEF, dosing can fail due to:
- plugged dosing valve/injector (crystal buildup)
- restricted DEF line or filter
- pump delivery issues
- poor mixing (hardware or exhaust leak effects)
When dosing is low, tailpipe NOx stays high. That can look like a “sensor issue” unless we check supporting data.
5) Exhaust leaks
Leaks can pull in oxygen and upset sensor readings and SCR chemistry. They can also change temperature and flow behavior. Look for:
- soot trails at clamps, bellows, or flanges
- cracked flex pipes
- loose V-band clamps
6) Engine-side problems that increase engine-out NOx
If the engine is producing more NOx than normal, the aftertreatment may struggle. Common off-road causes include:
- EGR flow problems (stuck valve, plugged cooler, sensor drift)
- intake restrictions (dirty air filter, collapsed hose)
- boost leaks affecting air/fuel ratio and combustion temps
- fuel system issues affecting timing/combustion quality
This is why we treat SPN 3226 FMI 20 as a system code, not a single-part code.
How to Fix SPN 3226 FMI 20?
We’ll keep this practical: confirm the fault, separate “signal problem” from “real NOx problem,” then repair.
Step 1: Confirm the fault and capture the context
Before clearing anything:
- Record active and stored codes (including aftertreatment temp, DEF, EGR, boost, and regen-related SPNs).
- Save freeze-frame or fault snapshot (RPM, load, coolant temp, exhaust temps).
- Note when it happens: idle, transport, heavy pull, during regen, right after refuel, after washing.
Why we do this: FMI 20 is often pattern-based. The pattern tells us where to look first.
Step 2: Quick inspection
Check these in order:
- Harness routing near hot exhaust parts
- connector locking tabs fully seated
- pin condition: corrosion, bent pins, pushed-out terminals
- ground points: tight, clean metal contact
- visible exhaust leaks and soot trails
If the machine works in mud/salt or gets pressure washed, connector sealing is not optional—it’s everything.
Step 3: Use live data to decide: sensor bias vs real high NOx
With a scan tool capable of J1939 data:
- Watch the NOx reading behavior during steady conditions.
- Compare related signals: exhaust temps, DEF dosing command, and (if equipped) upstream vs downstream NOx sensors.
- Look for “impossible” behavior: NOx reading stuck high with no change in load/temps, or readings that jump around.
Rule of thumb:
- Stuck high/erratic signal → suspect sensor, wiring, or power/ground.
- Consistently high NOx that tracks load and doesn’t drop when dosing is active → suspect real SCR/DEF/engine-out NOx issue.
Step 4: Electrical checks
Depending on your sensor design and service info:
- Verify sensor power supply voltage under load
- Verify ground integrity (voltage drop test is better than “looks clean”)
- inspect harness for shorts/opens, especially near clamps and heat shields
If wiring is damaged, repairing it correctly matters more than clearing the code.
Step 5: Address DEF/SCR basics
If NOx reduction is poor:
- Confirm DEF level and quality (use proper testing method if available)
- Inspect dosing valve for crystals and plugging=
- Check DEF filters and lines for restriction,
- Verify the machine reaches the correct exhaust temperatures for SCR operation
Step 6: Replace the NOx sensor when testing supports it
If the sensor shows bias, slow response, intermittent internal faults, or heater-related problems, replacement is often the clean fix. This is also where downtime savings are real: repeated clears and “wait and see” can cost more than a correct replacement.
For sourcing, use a heavy-equipment-focused category like NOx sensors so you can match to your machine/engine application.
Step 7: Verify the repair
After the fix:
- clear codes
- Run the machine through the same conditions that triggered the fault (warm-up + working load)
- Confirm the fault stays gone and NOx readings behave normally
Quick troubleshooting table
| What we see on the machine | Most likely cause | Best first check | Typical fix |
|---|---|---|---|
| Fault appears after washing / wet conditions | Connector water intrusion/corrosion | Inspect pins, seals, and wiggle test | Repair connector/harness, secure routing |
| NOx value stuck high, barely changes | Sensor bias or power/ground issue | Live data + voltage/ground checks | Replace sensor, fix wiring/grounds |
| NOx stays high under load, even with dosing | SCR/DEF dosing problem or DEF quality | DEF quality + dosing valve inspection | Clean/replace dosing parts, correct DEF |
| Multiple aftertreatment codes + derate | System-level issue (temp, dosing, leaks) | Check temps, leaks, and related SPNs | Fix root cause, verify work cycle |
How to Avoid It Before It Happens?
Preventing SPN 3226 FMI 20 is mostly about protecting sensors, wiring, and fluid quality—because off-road conditions punish all three.
1) Protect DEF quality like it’s fuel
- store DEF sealed, away from heat and sun
- keep containers clean (no shared funnels)
- don’t top off with questionable fluid to “get through the day.”
Small contamination can trigger big downtime later.
2) Make wiring inspections part of routine service
During regular checks:
- Look for harness rub points and add abrasion protection
- Re-secure loose clamps and clips
- Keep connectors fully locked and supported
- Avoid blasting connectors directly with a pressure washer
3) Fix exhaust leaks early
A small leak can grow fast with vibration. Catch it before it changes sensor behavior or SCR performance.
4) Keep the engine healthy to reduce engine-out NOx
A clogged air filter, boost leak, or EGR fault can push combustion temps the wrong way. That increases NOx and loads the aftertreatment harder than it needs to be.
If you’re doing scheduled maintenance or chasing a related issue, it often makes sense to bundle needed items from engine parts rather than waiting for the next failure.
5) Maintain the whole machine, not just the code
Many owners see this fault on tractors and ag machines working long hours under a steady load. If that’s your world, keeping common wear items on hand helps you avoid downtime peaks. For broader maintenance needs, stocking tractor parts can shorten repair cycles when the season is tight.
Conclusion
SPN 3226 FMI 20 usually means a NOx-related signal is drifting high, either from a failing NOx sensor, wiring/connector issues, or real aftertreatment performance problems tied to DEF dosing, exhaust leaks, or engine-out NOx. We fix it fastest by using live data to separate “bad signal” from “real NOx,” then verifying wiring, DEF basics, and sensor behavior before replacing parts. FridayParts supports these repairs with quality aftermarket parts at affordable prices, wide compatibility, and deep inventory.
