If you are in the market seeking one mighty, trustworthy, and many-purpose large compact track loader (CTL), then the John Deere 333G shall be a worthy contemplation, being a most favored model of 2025. The 333G stands as a leader within its class, conceived wholly upon the reflections and feedback of operators from within the cab. To render your comparison more profound, this article offers the most detailed introduction to the 333G and a contrast with the 331G.

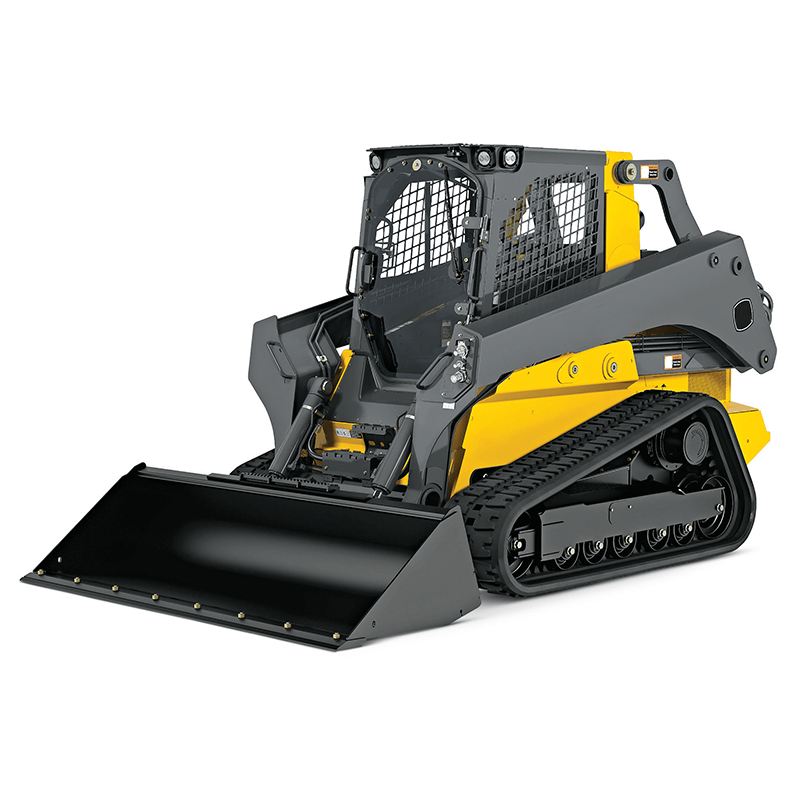

A Quick Look at the 333G

The John Deere 333G is not merely an upgrade; it is a machine thoroughly re-created to meet the most arduous duties. Operators are inclined to select it because of its fundamental powers, which transform directly into increased working efficiency and improved economic outcomes.
- Unmatched Power: With a robust engine at its core, the 333G delivers exceptional pushing power and breakout force, making it ideal for heavy excavation, grading, and material handling.
- Superior Lift Capability: Its vertical-lift boom design provides an impressive 11-foot hinge pin height, perfect for easily loading high-sided dump trucks and precisely placing heavy pallets.
- Enhanced Operator Comfort: The spacious, pressurized cab minimizes noise and dust, while excellent visibility and intuitive controls reduce operator fatigue over long shifts.
- Job Site Versatility: With powerful auxiliary hydraulics and compatibility with over 100 attachments, the 333G can transform from a loader to a trencher, auger, or grader in minutes.
333G Compact Track Loader Specifications
Key Specs
| Engine | 333G / 333G SMARTGRADE™ |
|---|---|
| Manufacturer and Model | Yanmar 4TNV94FHT |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage IV |
| Cylinders | 4 |
| Gross Rated Power (ISO 14396) | 74.6 kW (100 hp) at 2,500 rpm |
| Net Peak Power (SAE J1349 / ISO 9249) | 72.0 kW (96.6 hp) at 2,500 rpm |
| Peak Torque | 395 Nm (291.3 ft.-lb.) at 1,700 rpm |
Powertrain
| Pump | Axial-piston hydrostatic |
|---|---|
| Controls | Electrohydraulic |
| Travel Speeds | – |
| 2 Speed, Low | 8.5 km/h (5.3 mph) |
Undercarriag
| Rubber Tracks | New-Generation smooth-ride long-life Ground Pressure (continued) rubber with steel inserts |
|---|---|
| Track Width | – |
| Standard | 450 mm (17.7 in.) |
| Optional | 400 mm (15.8 in.) |
| Ground Pressure | – |
| With Standard 450-mm (17.7 in.) Track | 34.1 kPa (5.0 psi) |
| With Optional 400-mm (15.8 in.) Track | 38.4 kPa (5.6 psi) |
| Track Rollers (per side) | 5 triple-flange smooth-ride all-steel rollers |
| Track Idlers (per side) | 2 double-flange smooth-ride all-steel rollers |
| Tractive Effort | 5221 kgf (11,500 lbf) |
Hydraulics
| Pump Flow | – |
|---|---|
| Standard | 95 L/m (25.0 gpm) |
| Total With High-Flow Option | 156 L/m (41.1 gpm) |
| System Pressure at Couplers | 23 787 kPa (3,450 psi) |
| Hydraulic Horsepower Flow (calculated) | – |
| Standard | 38 kW (50 hp |
| High | 62 kW (83 hp) |
Machine Dimensions

| A-Length Without Bucket | 3.10 m (122 in.) (10 ft. 2 in.) | 3.10 m (122 in.) (10 ft. 2 in.) |
|---|---|---|
| B-Length With Foundry Bucket | 3.71 m (146 in.) (12 ft. 2 in.) | 3.71 m (146 in.) (12 ft. 2 in.) |
| C-Width Without Bucket | – | – |
| With 400 mm (15.8 in.) Track | 2.00 m (78.9 in.) (6 ft. 7 in.) | 2.00 m (78.9 in.) (6 ft. 7 in.) |
| With 450 mm (17.7 in.) Track | 2.05 m (80.7 in.) (6 ft. 9 in.) | 2.05 m (80.7 in.) (6 ft. 9 in.) |
| D–Height to Top of ROPS | 2.20 m (86.7 in.) (7 ft. 3 in.) | 2.30 m (90.5 in.) (7 ft. 7 in.) (including GNSS) |
| E-Height to Hinge Pin | 3.35 m (132 in.) (11 ft. 0 in.) | 3.35 m (132 in.) (11 ft. 0 in.) |
| F-Dump Height With Foundry Bucket | 2.69 m (106.1 in.) (8 ft. 10 in.) | 2.69 m (106.1 in.) (8 ft. 10 in.) |
| G-Dump Reach | – | – |
| With Foundry Bucket | 0.71 m (28 in.) | 0.71 m (28 in.) |
| With Construction Bucket (no edge) | 0.88 m (34.6 in.) | 0.88 m (34.6 in.) |
| H-Ground Clearance | 0.24 m (9.4 in.) | 0.24 m (9.4 in.) |
| I-Angle of Departure | 31 deg. | 31 deg. |
| J-Front Turn Radius With Foundry Bucket | 2.18 m (85.7 in.) (7 ft. 2 in.) | 2.18 m (85.7 in.) (7 ft. 2 in.) |
| K-Dump Angle (full lift height) | 48 deg. | 48 deg. |
| L-Bucket Rollback (ground level) | 35 deg. | 35 deg. |
Source from: www.deere.com

John Deere 333G vs 331G: What Are the Differences?
For buyers comparing these two popular compact track loaders, the 333G and 331G share the same design platform but differ in strength, lifting capacity, and hydraulic performance. Operators often describe the 331G as the “lightweight cousin” of the 333G.
Here’s a summarized comparison overview:
| Feature | John Deere 331G | John Deere 333G |
|---|---|---|
| Engine Power | 91 HP | ~100 HP |
| Rated Operating Capacity | 3,100 lb | 3,700 lb (approx.) |
| Operating Weight | 10,000 lb range | 12,100 lb range |
| Hydraulic Flow | Standard & Optional High Flow | Standard & High Flow (Enhanced) |
| Lift Path | Vertical | Vertical |
| SmartGrade Capability | Optional | Fully Integrated Option |
| Common Applications | Light Excavation, Landscaping | Heavy Material, Grading, Construction |
While both are excellent performers, the 333G adds roughly 10–15% more torque and lifting strength, which aligns better with heavy construction, off‑road material movement, and slope finishing. The 331G remains a strong contender for businesses prioritizing maneuverability or lower purchase cost, but in terms of sheer power, the 333G retains the edge.
Maintenance Tips to Extend 333G Service Life
Off‑road machinery is constantly exposed to dust, mud, and vibration. Extending equipment life requires routine care and attention to detail. Based on field experiences, the following recommendations help maintain the John Deere 333G’s efficiency:
- Follow Hour‑Based Maintenance Intervals — log every service hour to track oil, filter, and coolant replacement schedules.
- Inspect Undercarriage Weekly — remove compacted debris and tighten bolts to reduce premature roller wear.
- Monitor Hydraulic Pressure — irregular motion or slow attachment response often signals seal deterioration.
- Keep Cooling Clean — blocked radiator fins quickly lead to heat spikes in off‑road conditions.
- Use Genuine‑Spec Fluids — maintaining OEM‑grade viscosity prevents unnecessary component strain.
- Schedule Pre‑Winter Checkups — ambient temperature changes affect battery and hydraulic performance.
A small time investment in preventive maintenance can extend component life by 20–30%, which directly saves fuel and replacement costs over the machine’s operational years.
John Deere 333G Hot-Selling Parts
Before exploring that parts list, remember that not all replacements need to come from original dealer channels. Reliable aftermarket providers such as FridayParts supply high‑quality John Deere parts at competitive prices—often with faster availability for urgent repairs.
Below is a simple table showing commonly replaced parts for the John Deere 333G, categorized by system type:
| Part Name | Part Number |
|---|---|
| Filter Kit | MIU800650, MIU802154, MIU802421, AT101565 , KV16429 , AT171854 |
| Toggle Rocker Switch | AT361525 |
| Turbo RHF5 Turbocharger | MIA884648, MIA882115, MIA884163, MIA882124, 129978-18021, 12997818021, 129978-18020, 12997818020, 129978-18022, 12997818022, YM129978-18022, YM12997818022 |
| Bushing Bearing | T157173, GEH 45 ES-2RS, GEH45ES2RS |
| Work Light | AT323301, AT469589, AFH209737, AT440366, TL860 |
| Cabin Air Filter | T359416, WP10175, SC 90448, SC90448 |
| V-Belt | T338840 |
| Rear Crank Seal | MIU801095 |
| Fuel Pump | MIA882127 |
| 12V Blower Motor | AT441565 |
John Deere Related Content
- John Deere 750 Tractor Specs & Parts Lookup
- John Deere 5100E Lookup and Parts Information
- John Deere Lawn Tractor Comparison Chart 2025
- John Deere Z445 Lookup and Parts Information
- John Deere 200LC Excavator Info & Parts Lookup
- John Deere 1025R Sub-Compact Tractor Specs & Parts Lookup
Conclusion
The John Deere 333G isn’t just another compact track loader—it’s a proven tool for off‑road work that combines power, technology, and comfort in one balanced machine. From construction to agriculture, it offers a trusted solution for operators needing dense earth‑moving performance in tight spaces. Reliable maintenance and timely replacement parts from FridayParts ensure that the 333G stays productive year after year—offering both OEM‑level quality and cost‑efficient ownership.
