The EGR valve is a super important part of the emissions and exhaust system. It not only cuts down on harmful emissions like nitrogen oxides, but also helps lower fuel use a bit and keeps the engine running smoother. Actually, taking out the EGR valve to clean or replace it isn’t as hard as you think. If you use the right method, most people can do it. Whether you’re an experienced mechanic or just want to save some repair costs by doing it yourself, this guide will show every step, clear and easy to follow.
What Is an EGR Valve?
EGR is short for “exhaust gas recirculation”. On heavy equipment, diesel engines can operate at temperatures up to 4,500 °F ( 2,500 °C). Nitrogen and oxygen in the air combine to produce nitrogen oxides (NOx). This is exactly the kind of pollutant that emissions regulations like Tier 4 focus on limiting.
The EGR valve sends a small portion of the exhaust back to the intake manifold, where it mixes with fresh air. This lowers the maximum temperature during combustion. As the temperature drops, NOx emissions also decrease.
If there is a problem with the EGR valve, exhaust gases with soot may be sucked into the engine. Over time, it is easy to damage delicate components such as the turbocharger and intake duct. Therefore, timely replacement of EGR valves is not only for emission compliance but also to protect the entire engine system.


Tools and Materials Needed
Before you start, prepare the right tools and parts. Exact sizes depend on your machine, but this checklist has all the basics you’ll need.
- New parts: A new EGR valve and gasket that fit your engine model perfectly
- Hand tools: Socket and ratchet set; Combination wrenches; Pliers
- Torque wrench: Use it to tighten the new valve to the factory specs exactly — this stops leaks
- Cleaning supplies: Gasket scraper, wire brush, intake cleaner and shop towels (for scraping off old gasket material and heavy carbon buildup)
- Fluid prep: Drip pan (to catch spills); Correct engine coolant (if your EGR is liquid-cooled — you’ll need it to top up the system)
- Safety & diagnostic gear: Glasses and work gloves; Heavy-duty diagnostic scan tool (to clear fault codes and do the post-install relearn procedure you need)
Step-by-Step Guide to Replace the EGR Valve
How hard it is to replace the EGR valve depends on where it’s located. On some engines, it’s right on top and easy to reach. On others, it’s hidden deep in the engine bay — you’ll have to take off other parts first. Here’s a general step-by-step guide:
Park, Cool Down and Stay Safe
Park your machine on flat ground. Set the parking brake and wedge chocks. Remember, let the engine cool right down. Exhaust parts and coolant can stay burning hot for hours.
Find the EGR Valve
Check your machine’s service manual to find its exact spot. It’s usually mounted on the intake manifold, cylinder head or exhaust manifold. You’ll see an electrical plug on it, plus one or two metal tubes or coolant lines. A lot of the time, it’s part of a bigger setup with an EGR cooler.
Disconnect the Battery
Unhook the negative battery terminal. This stops electrical shorts and keeps the engine from accidentally cranking while you work.
Drain Coolant (If Needed)
Most heavy-duty EGR systems use liquid cooling to handle high heat. Before working on the EGR valve or cooler, drain some coolant if hoses are connected. Put a drip pan under the radiator drain and let out enough to get the level below the EGR valve.
Disconnect Hoses and Electrical Plugs
Gently unplug the electrical connector from the EGR valve. Use pliers to loosen the clamps on the coolant hoses or vacuum lines, then slide them off the valve. A little leftover coolant might leak out — that’s totally normal. Next, loosen the bolts or clamps that hold the exhaust pipe to the valve. These things can be stuck tight — spray some penetrating oil on them to make it easier.
Remove the Old EGR Valve
Use a socket wrench to remove the bolts securing the valve. These bolts may be tight if they are heated for a long time. Use force slowly to avoid breaking. Once the bolts are removed, gently pry the valve to loosen it. Old gaskets and carbon deposits can sometimes stick valves very well.
Clean All Mating Surfaces Thoroughly
Any leftover gasket bits or carbon will stop the new valve from sealing properly, causing exhaust or coolant leaks.
- Use a gasket scraper to get rid of every bit of old gasket from the engine’s mounting surface.
- Scrub away all soot and carbon deposits on the port with a wire brush and intake cleaner.
- If you can, use a vacuum to suck up loose debris — you don’t want it falling into the intake manifold. The surface should be clean, bare metal when you’re done.

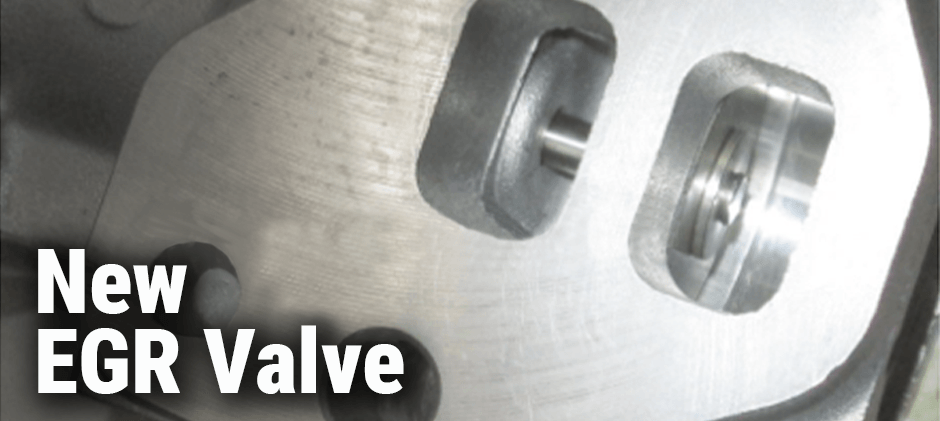

Install the New Gasket and EGR Valve
Lay the new gasket on the clean mounting surface, and line it up with the bolt holes. Set the new EGR valve on top of the gasket, then screw in the mounting bolts by hand—this keeps the threads from getting cross-threaded. Grab a torque wrench and tighten the bolts in a crisscross pattern to the torque specs given by the manufacturer. Don’t overtighten them—you could warp the valve flange or snap the bolts.
Reconnect Everything
Work in reverse order: reattach the exhaust gas tube, all coolant and vacuum lines, and the electrical connector. Make sure all clamps are tight.
Refill the Coolant and Reconnect the Battery
If you drained the cooling system, top it off with the right type of coolant. Then hook the negative battery terminal back up.
Clear Fault Codes and Run the Relearn Procedure
Plug in your heavy-duty diagnostic scan tool. Clear any fault codes linked to the old EGR valve. A lot of modern machines need an EGR valve “relearn” or “calibration” step. Send this command with the scan tool — it tells the ECU to recognize the new valve and learn its position settings. Skip this step, and you might still have performance issues even with a new valve.
Final Checks and Test Run
Fire up the engine. Take a close look around the new valve, gaskets, and coolant lines to check for leaks. Listen for any odd exhaust sounds. If everything’s good, run the machine under a light load to make sure all power and performance issues are over.
Please Note the Following
- Inspect Associated Parts: When the valve is off, take a second to check the EGR cooler and the connecting pipes. If the soot clogs the valve, you should clean or replace the cooler.
- Take a Picture: Before you disconnect anything, take a clear photo with your phone. Following this simple step can save you when you need to remember how you routed hoses and wires.
- Know Your Limits: If the EGR valve is in a super hard-to-reach spot, or you’re not comfortable with the job—especially draining coolant—it’s always best to have a qualified heavy equipment mechanic do the work. A tiny mistake can lead to way costlier repairs down the line.
Costs to Be Considered
The cost to replace an EGR valve on off-road machines varies a lot, depending on the brand and model.
- Part Cost: The EGR valve is a precision part. For heavy-duty gear, expect to pay $300 to over $1,000 for just the valve. If you need a new EGR cooler too, that’ll add a few hundred more bucks.
- Professional Labor: If you get a pro to do the job, heavy equipment mechanics in North America usually charge $125 to $200 an hour. How long it takes depends on how easy the valve is to reach—it can take 2 to 6 hours total. So the full cost for a pro replacement can run from $600 to $2,200 or more.
By performing the replacement yourself, you can save significantly on labor costs. One of the best ways to manage the part cost is by sourcing high-quality aftermarket parts, which often provide the same performance and reliability as OEM parts at a more accessible price point.
Final Thoughts
Replacing an EGR valve is easy to do yourself — it’ll save you a ton on repair costs. If you need a new EGR valve, FridayParts is a good choice. We stock OEM-quality EGR valves and related parts that fit many brands. Fully stocked, reliable, and budget-friendly. Shop now!
