Dark oil stains under heavy equipment? Please don’t panic, check it out. If the oil leak comes from the axle area, it is likely a rear differential leak. In heavy equipment, this is common. The guide works with you to identify symptoms, think about why, and tell you how to repair them properly.
What Is a Rear Differential Leak on Heavy Equipment?
In simple terms, a rear differential leak is a special gear oil for lubricating the differential that leaks out of the sealed housing. The differential is a robust gearbox. If you’re not sure, you can check out what a differential is. When cornering, it allows the driving wheels on the same axle to turn at different speeds. Without it, the machine would have a hard time turning, the wheels would have slipped, and the tires would have worn out quickly.

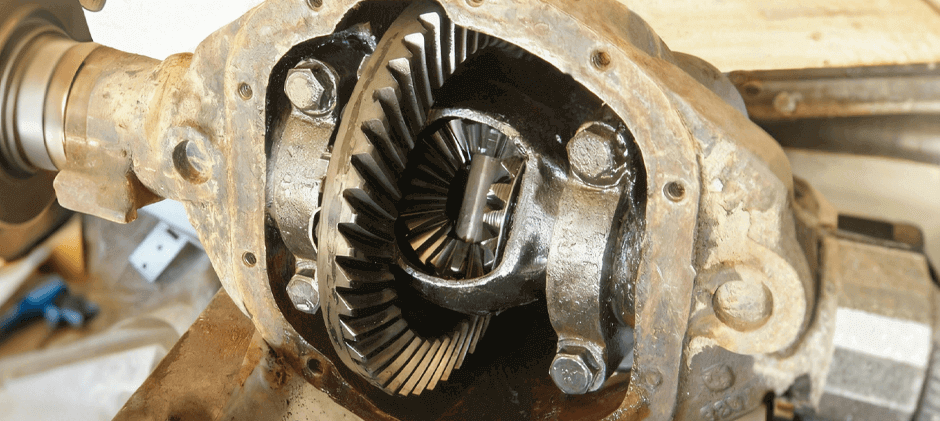

In the gearbox is a very thick, high-viscosity special gear oil, which protects the gears and bearings. Protection against damage caused by high pressure and high temperature. Oil leaks are usually due to a problem with the sealing ring or gasket, and the most common points of leakage include:
- The Pinion Seal: Located where the driveshaft enters the differential.
- The Axle Seals: Located where the axle shafts exit the differential housing to connect to the wheels.
- The Differential Cover Gasket: The seal for the cover plate on the back of the housing.
- The Differential Housing Itself: Cracks or damage from impacts with rocks or debris.
A common trouble with off-road machinery is the differential breather vent. This small valve balances the internal air pressure as the differential heats up or cools. But once blocked by mud, dust or water (which can easily happen on site), the pressure in the housing rises. The pressure is so great that even if the seal is not broken, it can be squeezed to leak oil.
Bad Rear Differential Leak Symptoms
There is no warning light on the dashboard to indicate that the differential fluid level is too low. Your eyes and ears are the only sensors you have, so you need to know what to look out for.
Oily Residue on the Differential Housing: The earliest signals were generally “oil seepage”. The housing surface appears wet or covered with a greasy layer of dust. The gear oil is relatively thick and will absorb dust, so that area is often dark and sticky.
Drips or Puddles on the Ground: Severe oil seepage will start dripping. Right under the axle, you’ll see an oil spot or a small puddle of black oil. Gear oil smells particularly strong, like sulfur or a rotten egg smell. You can tell the difference between it and engine oil and hydraulic oil through the smell.
Fluid on the Inside of the Wheels: If the axle seal is broken, oil may leak into the inside of the brakes and wheels. This is dangerous because it will stain the brake pads, making them unstoppable.
Strange Noises: This is an urgent warning sign. If there is too little oil, there will be direct friction between the gears. These sounds cannot be ignored. Once the differential runs out of oil, the gear quickly wears out. If completely jammed, the wheel may lock directly. Not only is it dangerous, but it may also require more costs.
- A low hum or whine during operation.
- This turns into a louder growl or rumble, especially under load.
- Finally, you’ll hear loud clunking, grinding, or banging as the gears chip, break, and begin to seize.
What Causes the Rear Differential to Leak?
For off-road machinery, the reasons are often closely related to the harsh working environment.
- Worn-Out Seals and Gaskets: This is the most common cause. After the machine has been used for thousands of hours, the rubber seals and gaskets undergo a number of alternations of hot and cold, gradually becoming hard, brittle, and shrinking, and ultimately unable to seal the oil.
- Clogged Breather Vent: If mud, dust, or debris blocks the vent, the air pressure cannot be vented in the housing. As soon as the temperature rises, the internal pressure will squeeze the oil out of the seals. Sometimes, cleaning the ventilation holes reveals a slight oil leak.
- Improper Service or Installation: A leak that shows up right after maintenance is often caused by human error. If the mating surface of the differential cover isn’t cleaned properly, or the wrong type or amount of RTV sealant is used, it won’t seal correctly. Bolts that are too tight can warp the cover, while bolts that are too loose won’t hold enough pressure to keep it sealed.
- Physical Damage: The bottom of heavy equipment is often hit by rocks, stumps or debris, and the shell can be smashed or the cover is depressed, resulting in seal failure and severe oil leak.
- Bearing Failure or Driveline Vibration: If there is a problem with the pinion or bearing, the shaft may start jittering. This jitter rapidly wears away the sealing ring, causing a persistent oil leak. Simply replacing the sealing ring won’t help; we have to deal with the bearing problem first.
Do I Need to Replace the Rear Differential If It’s Leaking?
Not usually, as long as you see a problem in time. Whether it needs to be repaired or replaced mainly depends on the severity of the oil leak and whether there is any damage inside. Let’s separate and say:
If it’s just a slight oil seep, there’s a film of oil on the shell, but no oil dripping, it’s not an emergency. That’s a warning sign, though. You should clean up that spot first, check the oil level, and watch closely. The situation generally slowly becomes more serious.
When there are obvious drips of oil and oil stains on the ground, it’s time to take action. The focus at this point is to replace broken seals or gaskets to prevent the differential from running out of oil. Changing seals is a routine repair and the cost is a fraction of replacing the entire differential.
Only when the differential is running out of oil for a long time, and there is a harsh metal friction sound, and the internal gear is severely damaged, does the entire set need to be replaced. By that time, the internal parts had been scrapped and only had to be replaced.
To put it simply, repairing an oil leak is prevention; changing the differential is the price to pay for negligence.
How to Fix a Rear Differential Leak?
Fixing a rear differential leak means finding where it’s coming from and replacing the bad part. There are some “stop-leak” additives out there, but they’re just a quick fix at best. They don’t hold up under the heavy load and heat of big machines. The only real solution is to repair it the right way.
Pinpoint the Leak Source
Before you start, you must know exactly where the oil is leaking from. Clean the whole differential housing with a good degreaser. Run the machine for a bit, then check it closely. Where you see fresh oil, that’s your leak.
Fixing a Leaking Differential Cover Gasket
- This is the most straightforward repair. Put a drain pan under the differential. Remove the fill plug first, then the drain plug to let the old gear oil out.
- Take out the bolts on the cover and gently pry it off. Scrape off all the old gasket or RTV sealant from the cover and housing. This part is really important — even a little leftover residue can cause leaks. Use brake cleaner to make sure both surfaces are clean and dry.
- Put on a new gasket, or run a bead of good, gear-oil-resistant RTV sealant.
- Reinstall the cover and tighten the bolts in a star pattern to the torque the manufacturer recommends. If you used RTV, follow the curing directions — some need time to set before you tighten fully or add oil.
- Put the drain plug back in and fill the differential with the right gear oil until it reaches the bottom of the fill hole.
Fixing a Leaking Axle Seal
It’s kind of a hassle. You have to remove the wheels and brakes first, and then pull the axle shaft out to reach the seal. After pulling the shaft out, pry off the old oil seal and carefully press the new one in. This is quite tricky. Unless you are very experienced, it is safer to have a professional technician do it.
Fixing a Leaking Pinion Seal
This is the trickiest common leak to fix. You have to disconnect the driveshaft and take off the pinion yoke. Swapping the seal is easy, but putting the yoke back right is tricky. The pinion nut sets the bearing “preload,” which is super important for how long the differential lasts. Get it wrong, and the new bearings can fail fast. It’s best to let a skilled technician handle this one.
Final Thoughts
A rear differential leak can mess up the drivetrain. It can cause tire wear and unstable power delivery. Replace the damaged parts as soon as you can to avoid more damage. You need a simple gasket or a complete bearing kit? We can provide the parts you need. Let FridayPats be your one-stop shop for buying new rear differentials or other parts！
FAQs on Rear Differential Leak
Why does my differential only leak when driving, but not when parked?
This usually means the breather vent is clogged. When you drive, the differential heats up and pressure builds. If the vent is blocked, that pressure pushes oil past the seals. When parked, it cools down, pressure drops, and the leak stops.
Why does my new differential gasket still leak after replacement?
Two common reasons. Either the surfaces weren’t cleaned properly, leaving a path for oil. Or the cover is slightly warped from a past hit or bolts being too tight/loose, so it doesn’t sit flush.
Why does my differential fluid look like engine or transmission oil?
Fresh gear oil is thick and light amber. Over time, it darkens to deep brown or black, which can look like old engine oil. The easiest way to tell? Smell it. Gear oil has a strong sulfur-like smell.
Does driving under heavy loads make a leak worse?
Yes. Heavy loads heat up the differential and increase pressure. That extra pressure will push oil out of any weak spots, turning a slow seep into a bigger leak.
Why does my differential leak right after a fluid change?
Old sludge can sometimes plug a weak seal. When you drain it and add fresh oil, the thinner new fluid can slip past the weak spot. The leak was already there — the fluid change just revealed it.
Is it safe to keep driving with a small differential leak?
Not really. Even a small leak will eventually drain enough oil to cause damage. You might get away with topping off for a short while, but it’s only temporary. The safe fix is to repair the leak.
