Usually, with proper maintenance, your excavator radiator can last between 5 and 8 years. However, because off-road equipment always works in harsher environments than cars, its radiator tends to have a shorter lifespan. Discovering these signs of a failing radiator early can ensure good maintenance. In this guide, we’ll cover 9 common symptoms of its failure and 5 inspection methods to check for problems, helping extend the life of the engine radiator and avoid costly breakdowns.

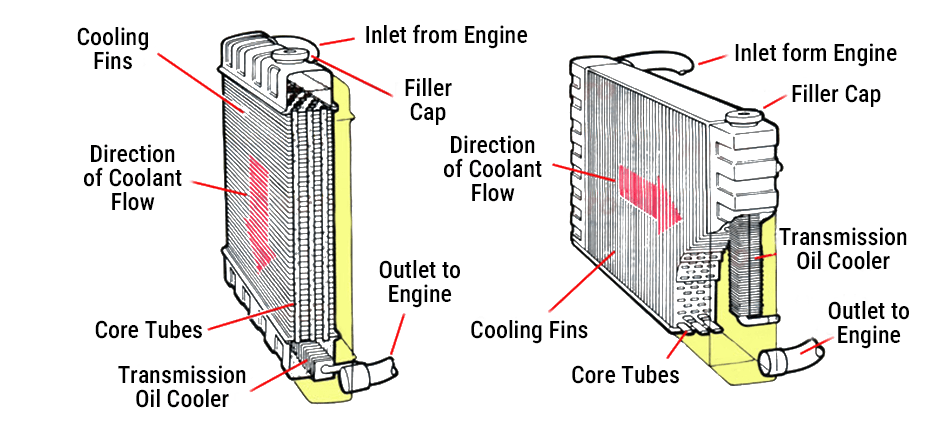

What Is a Radiator?

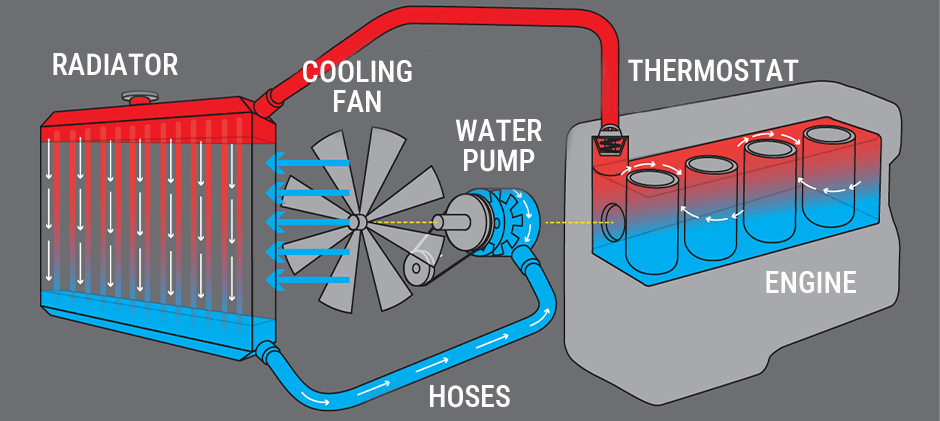

A radiator is a key component of the engine’s cooling system, and you can think of it as the air conditioner for your machinery’s engine. As you operate the machinery, air rushes over its thin fins, drawing heat away from the coolant. This cooled liquid then circulates back into the engine to absorb more heat, and the cycle continues. Without this process, your engine would quickly overheat and sustain severe damage. If you ignore it, you risk costly repairs or even total engine failure.
Common Bad Radiator Symptoms
1. External Corrosion and Rust
You need to inspect its appearance for rust or corrosion, particularly pay attention to seams and connections. This physical decay weakens its structure, leading to leaks and reduced performance.
2. Leakage
If you spot puddles of bright green, yellow, or pink fluid on the ground under your equipment, you have a coolant leak. Or it’s also a sign that you need to constantly add coolant to the radiator.
3. Poor Heating Performance
A failing radiator can disrupt the flow of hot coolant to the heater core, preventing it from warming the operator’s cabin. If the heater in your equipment is only blowing cold air, it’s a strong sign that it is clogged or failing.
4. Engine Overheating
This is the most obvious and critical warning sign. If you see the temperature gauge on your machine’s dashboard climbing into the red zone, the cooling system is failing, because a bad radiator can no longer prevent engine overheating.
5. Shift Problems
If you find trouble in shifting, it can mean an issue. Many radiators contain an internal cooler for transmission or hydraulic fluid. An internal crack can allow these fluids to mix with coolant, leading to contamination that damages the transmission.
6. Abnormal fluid coloration
Healthy coolant is clean and brightly colored. If the fluid looks like rusty, brown sludge or appears oily, it’s a sign of radiator problems. This contamination means it can be corroded from the inside, and this thick sludge will clog the system, also leading to overheating.
7. Clogged Fins of the Radiator
Its thin metal fins can release heat. This blockage is trapping heat and preventing the radiator from doing its job. Bent or damaged fins will also reduce airflow and cause the same issue.
8. Unusual Noises
Hearing strange sounds like whining, gurgling, or hissing from the radiator can be a sign of a bad radiator. These noises often indicate that air is trapped in the cooling system or point to other internal issues.
9. Strange Smell
If you find an unusual sweet or burning scent around the engine, especially while it’s running, it’s a strong indicator of a coolant leak. The smell is the coolant burning off on hot surfaces.
All of these symptoms are clear signs that your radiator is failing. Ignoring them can lead to serious engine damage, so it’s important to check and replace the radiator as soon as possible.
How to Check If the Radiator is Working?
Many signs tell you it is bad. But not all problems are caused by a failing radiator. By performing a few simple checks, you can easily know whether the radiator is working.
Locating Coolant Leaks
To find the specific leakage spot, you can use a pressure tester on the cooling system to force coolant out of cracks or add dye to the coolant and run the engine to spot where the colored fluid escapes.
Testing the Radiator Cap
With the engine cool, remove the radiator cap and use a pressure tester to see if it holds the recommended pressure. A faulty cap can’t hold this pressure, making the radiator ineffective even if it’s in perfect condition. This check can identify if the cap is the problem.
Inspecting for Clogs
With the engine cool, check for clogs. Inspect the outside fins for debris that blocks airflow. Then, look inside to see if there is an internal blockage, including sludgy, rusty coolant. For a radiator to work, coolant must flow through it, and air must flow over it. So, a clog means the radiator itself has a problem.
Checking the Water Pump
With the engine cool, remove the radiator cap and start the engine. If the coolant isn’t moving or if you see leaks around the pump itself, it means hot coolant never reaches it to be cooled.
Checking the Thermostat
After the engine warms up, use an infrared gun to safely measure its hoses. A hot upper hose and a cold lower hose indicate a stuck thermostat that is blocking coolant flow and needs replacement. This check helps you confirm if it is actually the part that’s failing, or if another component is the true source of the overheating problem.
Radiator Damage Repair Cost
The cost to replace a bad radiator on heavy equipment such as a loader or excavator can vary widely—typically, an OEM radiator ranges from $100 to $2,500. This broad price range depends on several factors, including the specific machine model, labor costs, and the source of the replacement part. Knowing when to replace a radiator is just as important as understanding the cost, as delaying replacement can lead to overheating, engine damage, and even higher repair bills.
In contrast, OEM-quality aftermarket parts from FridayParts offer a cost-effective solution. They deliver reliable, compatible performance and help equipment owners and operators manage repair expenses without compromising the cooling system’s efficiency or durability.
Conclusion
A bad radiator can slow you down and shorten your machine’s life. Sometimes your excavator might still run, but a broken radiator will cause damage over time. It’s just not worth the risk. The good news is, the tips above help you catch problems early.
