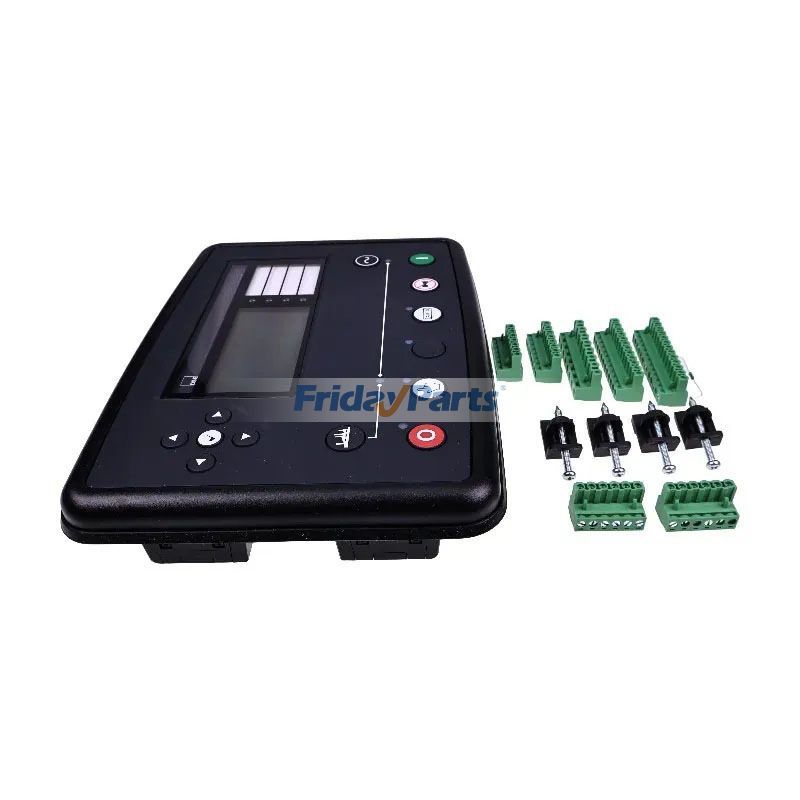

Auto Start Control Module DSE7410 MKII for Deep Sea

Condition:New Original

Note:This 100% Genuine part is non-returnable and non-exchangeable. Please verify the correct part number before purchasing, instead of solely relying on the model.

Replace Part Number:DSE7410 MKII

Specifications:
Continuous Voltage Rating:8 V to 35 V Continuous
Cranking Dropouts:Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
Maximum Operating Current:260 mA at 12 V, 130 mA at 24 V
Maximum Standby Current:120 mA at 12 V, 65 mA at 24 V
Charge Fail/Excitation Range:0 V to 35 V

Application:
Fit For wide range of single-set gas and diesel applications
