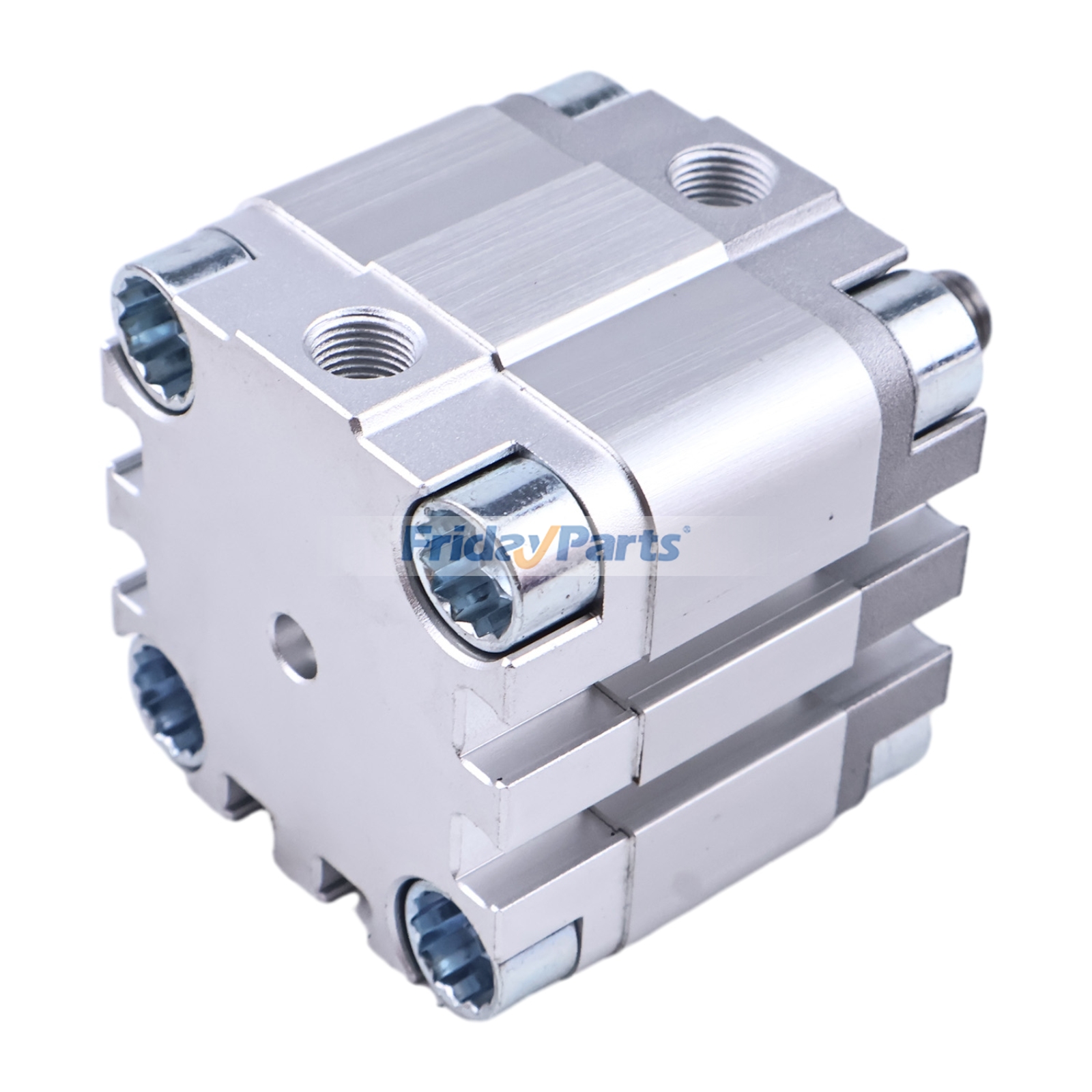

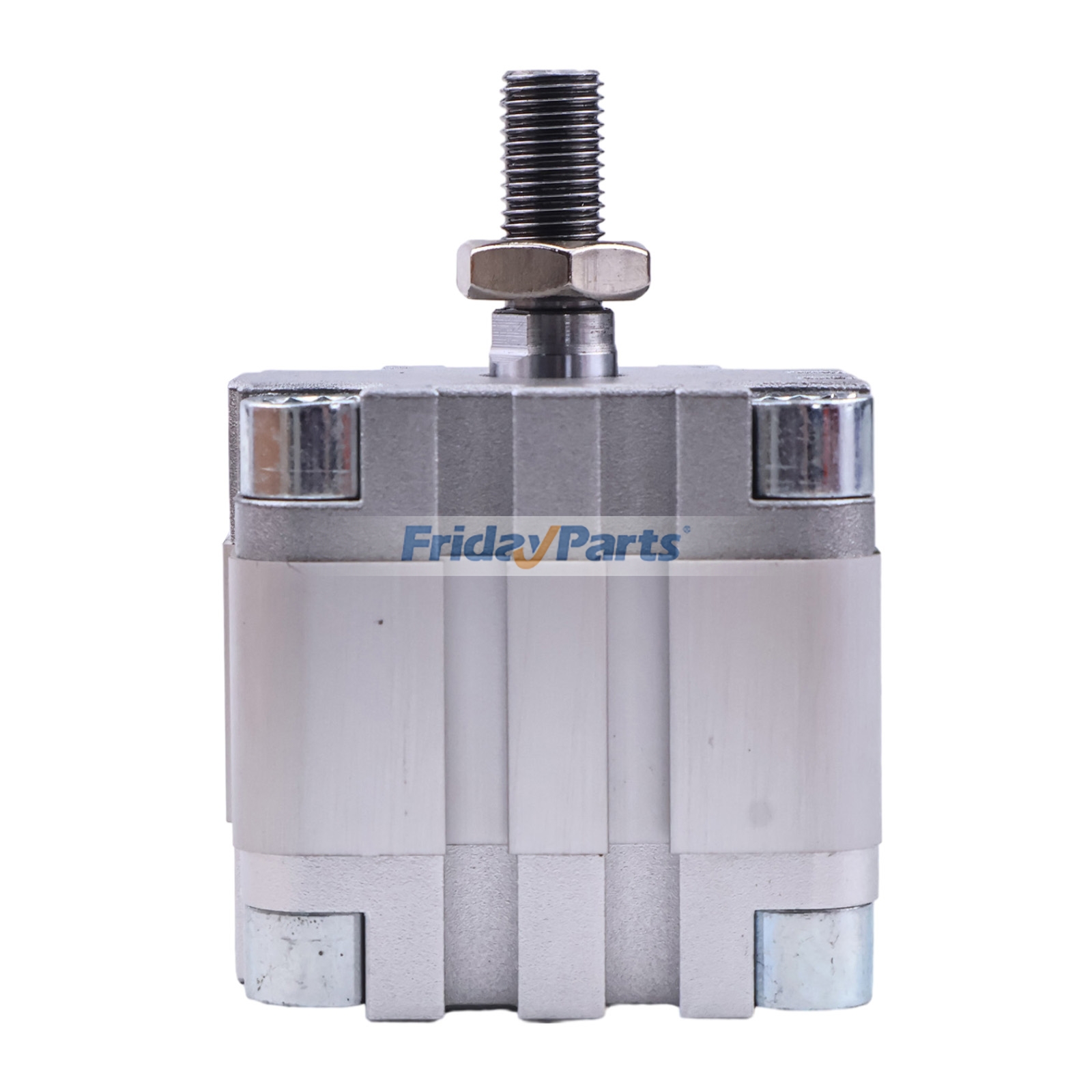

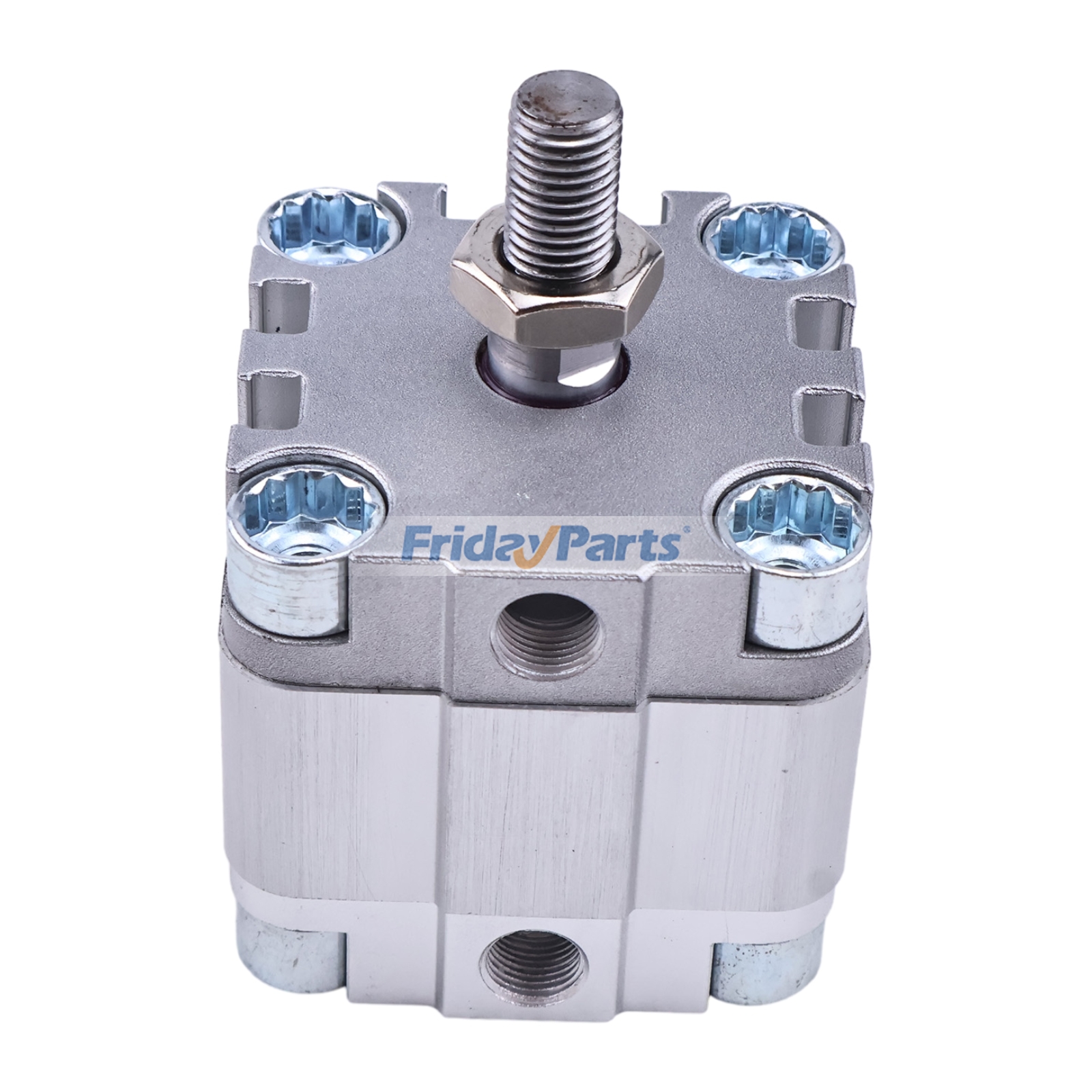

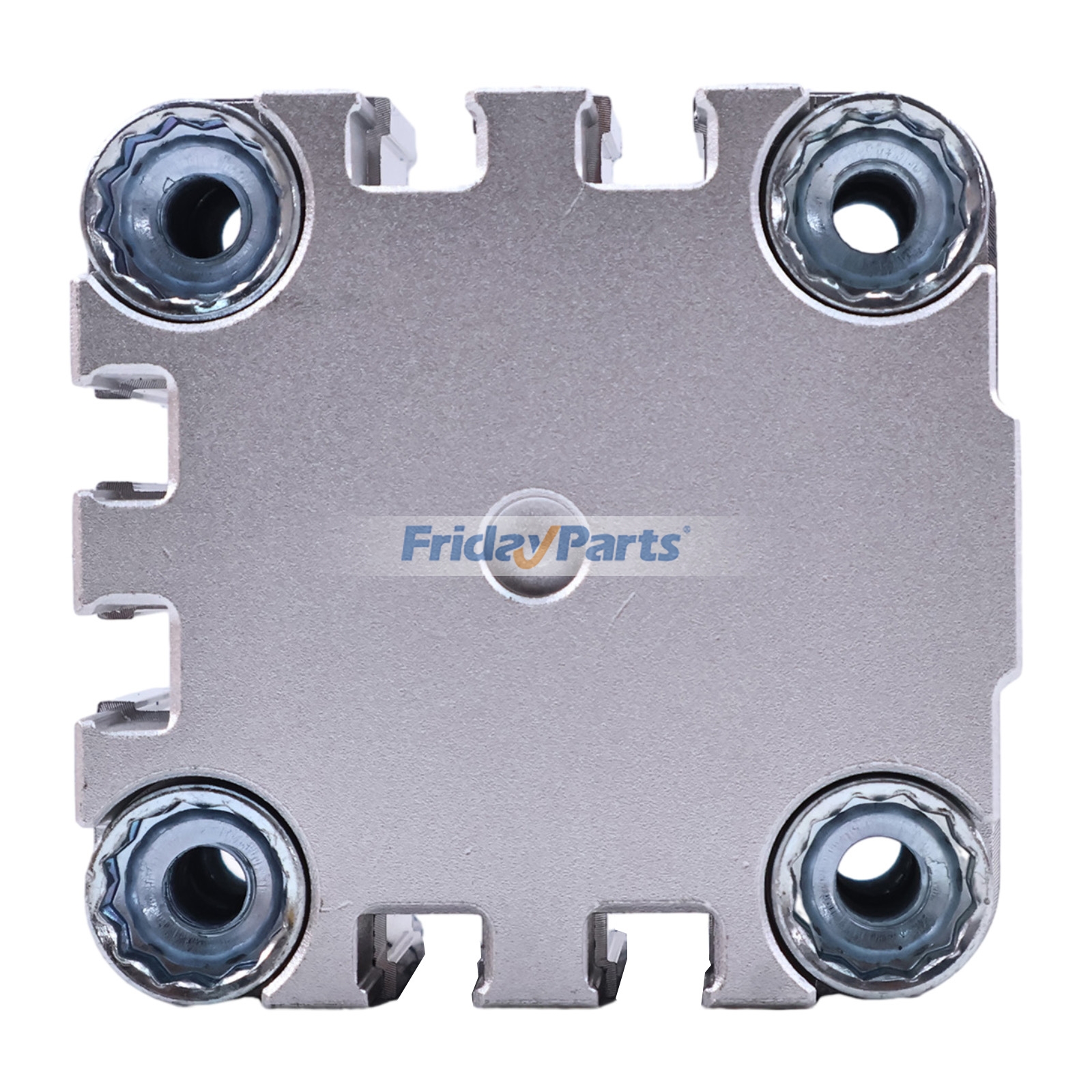

Aftermarket Festo ADVU-40-10-A-P-A 156627 Compact Cylinder for Automation Systems and Industrial Equipment

Aftermarket Festo ADVU-40-10-A-P-A 156627 Compact Cylinder for Automation Systems and Industrial Equipment

Replacement Part Number: ADVU-40-10-A-P-A, ADVU4010APA, 156627

Specification:
Stroke: 10 mm
Piston diameter: 40 mm
Cushioning: Elastic cushioning rings/plates at both ends
Mounting position: Optional
Mode of operation: Double-acting
Piston-rod end: Male thread
Design: Piston, Piston rod
Position detection: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.08 MPa...1 MPa, 0.8 bar...10 bar, 11.6 psi...145 psi
Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
Information on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Impact energy in end positions: 0.52 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 686 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 754 N
Moving mass for 0 mm stroke: 63 g
Additional moving mass per 10 mm stroke: 9 g
Basic weight for 0 mm stroke: 433 g
Additional weight per 10 mm stroke: 59 g
Type of mounting: With through-hole, With accessories
Pneumatic connection: G1/8

Applications:
Fit for Automation Systems Industrial Equipment and so on machines with Festo Compact Cylinder ADVU-40-10-A-P-A.
