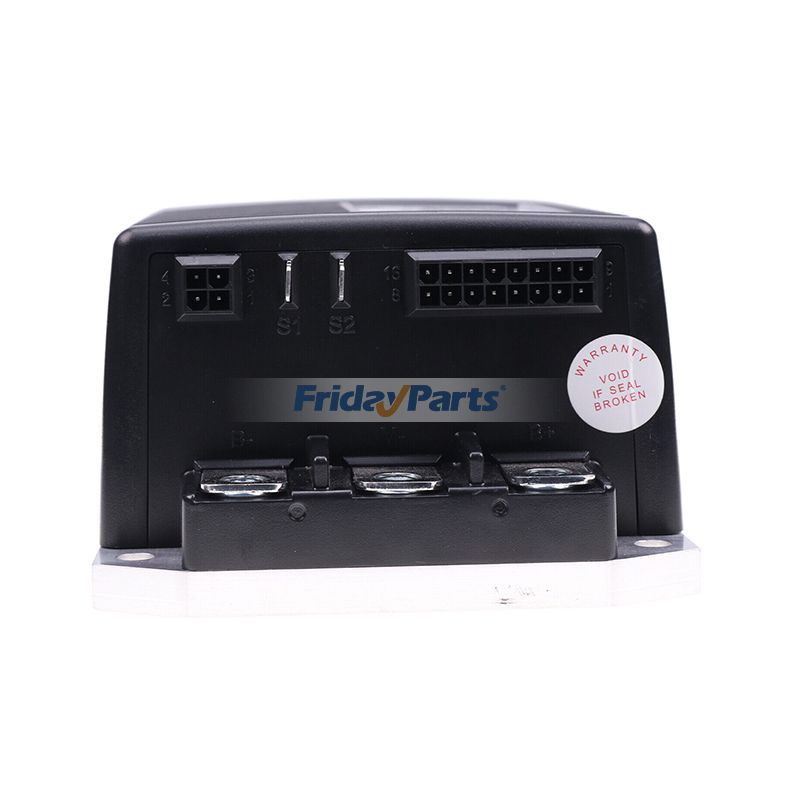

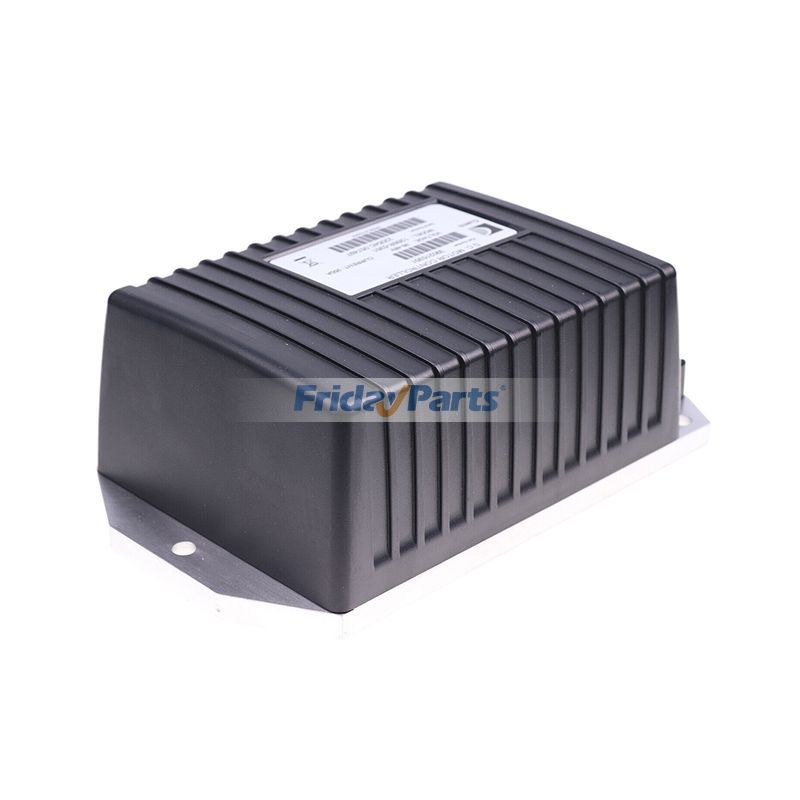

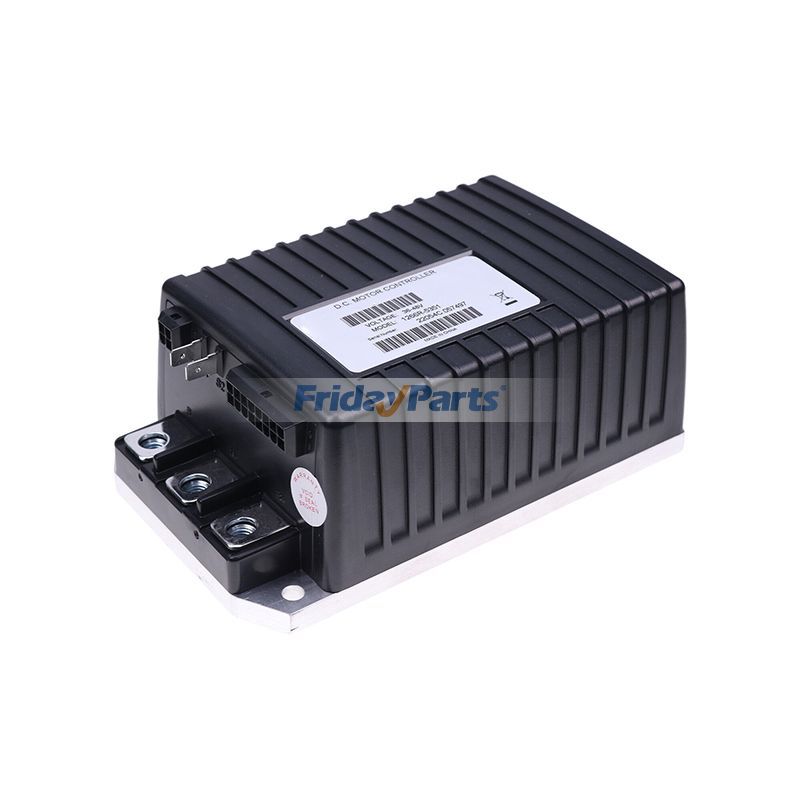

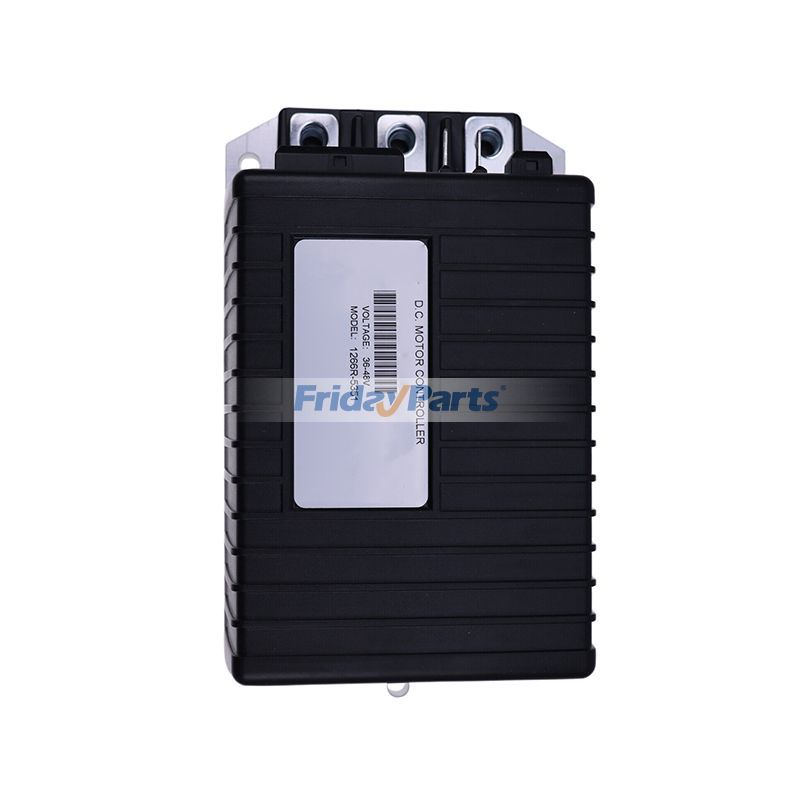

36-48V 350A Programmable DC SepEx Motor Controller 1266R-5351 390215351 for Curtis

Condition:New Original

Note:This 100% Genuine part doesn't offer any warranty, return or exchange service. Please confirm according to the correct part number instead of just a model!

Replace Part Number:1266R-5351, 1266R5351, 390215351

Specification:
PWM operating frequency:16 kHz
Electrical isolation to heatsink (min.):500 VAC
KSI input voltage (minimum):16.8 V
Norminal Battery Voltage (Volts):36-48V
Amature 2 minute current rating (amps):350A
Field 2 minute current rating (amps):30A
KSI input current (typical):
160 mA without programmer
200 mA with programmer
Logic enable and logic power input voltage (minimum):16.8 V
Logic enable and logic power input current (no contactors engaged):160 mA without programmer; 200 mA with programmer
Logic input voltage:20.0 V High; 7.5 V Low
Logic input current 10 mA
Throttle Type:various throttles can be used with the 1266 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles
Ambient operating temperature range:-40°C to 50°C
Heatsink overtemperature cutback:starts at 85°C; cutoff at 95°C
Heatsink undertemperature cutback:50% armature current at -25°C

Application:
Fit for Curtis
