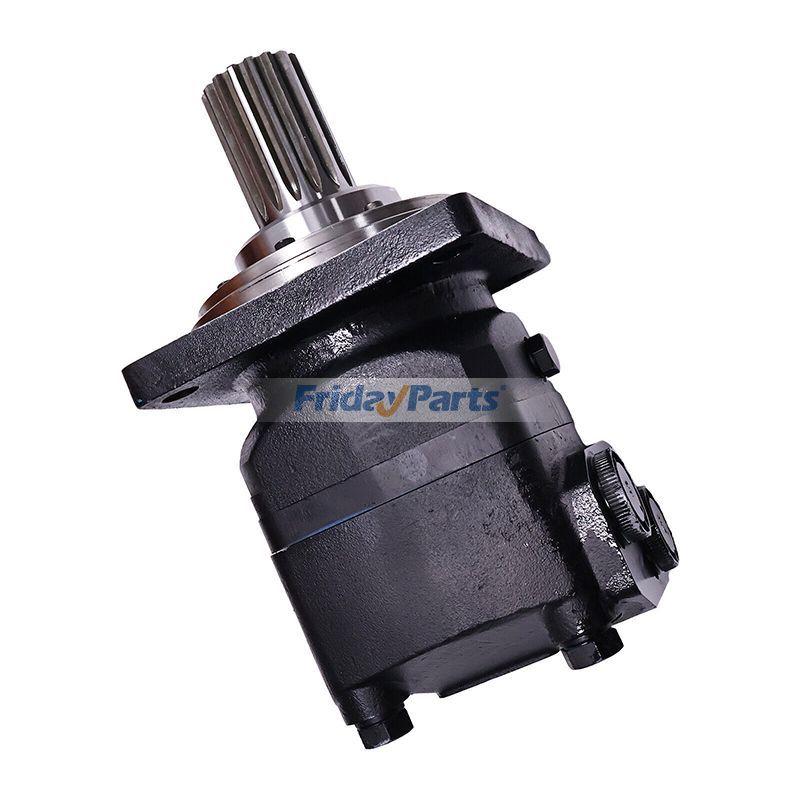

2.125" G1 BSP 16T Hydraulic Orbital Motor 151B3105 OMV315-151B3105 replace Danfoss

2.125" G1 BSP 16T Hydraulic Orbital Motor 151B3105 OMV315-151B3105 for Danfoss

Replace Part Number:
151B3105, OMV315-151B3105, 151B-3105, OMV315151B3105

Specification:

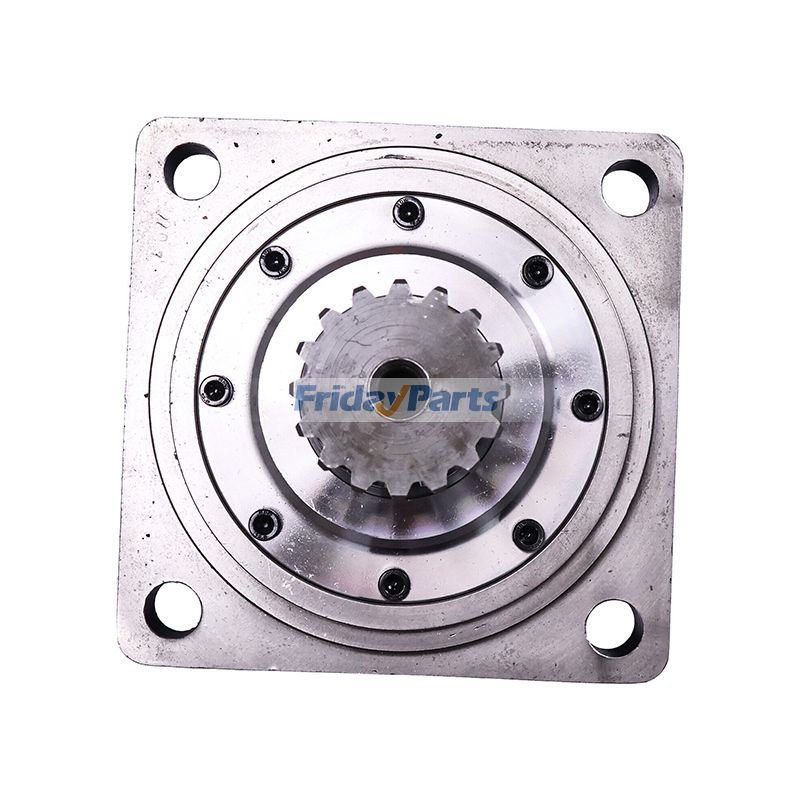

Splined 16T output shaft 2.125" with G1 BSP port
OMV 315 Low Speed High Torque motor, Geometric Displacement 314.5 cm3
Motor size:315
Geometric displacement( cm^3[in]):314,5[19.19]
Max speed cont:510 rpm
Max speed int:630 rpm
Max torque cont(Nm[lbf in]):920[8140]
Max torque int(Nm[lbf in]):1110[9820]
Max output power cont(kW[hp]):42,5[57.0]
Max output power int(kW[hp]):51,0[68.4]
Max pressure drop cont(bar[psi]):200[2900]
Max pressure drop int(bar[psi]):240[3480]
Max pressure drop peak(bar[psi]):280[4060]
Max oil flow cont(l/min[gpm]):160[42.3]
Max oil flow int(l/min[gpm]):200[52.8]
Max starting pressure with unloaded shaft(bar[psi]):8[115]
Min starting torque at max press drop cont(Nm[lbf in]):710[6280]
Min starting torque at max press drop int(Nm[lbf in]):850[7520]
Max inlet pressure cont(bar[psi]):210[3050]
Max inlet pressure int(bar[psi]):250[3630]
Max inlet pressure peak(bar[psi]):300[4350]
Max return pressure with drain line cont(bar[psi]):140[2030]
Max return pressure with drain line int(bar[psi]):175[2540]
Max return pressure with drain line peak(bar[psi]):210[3050]

Application:
Fit for Danfoss
